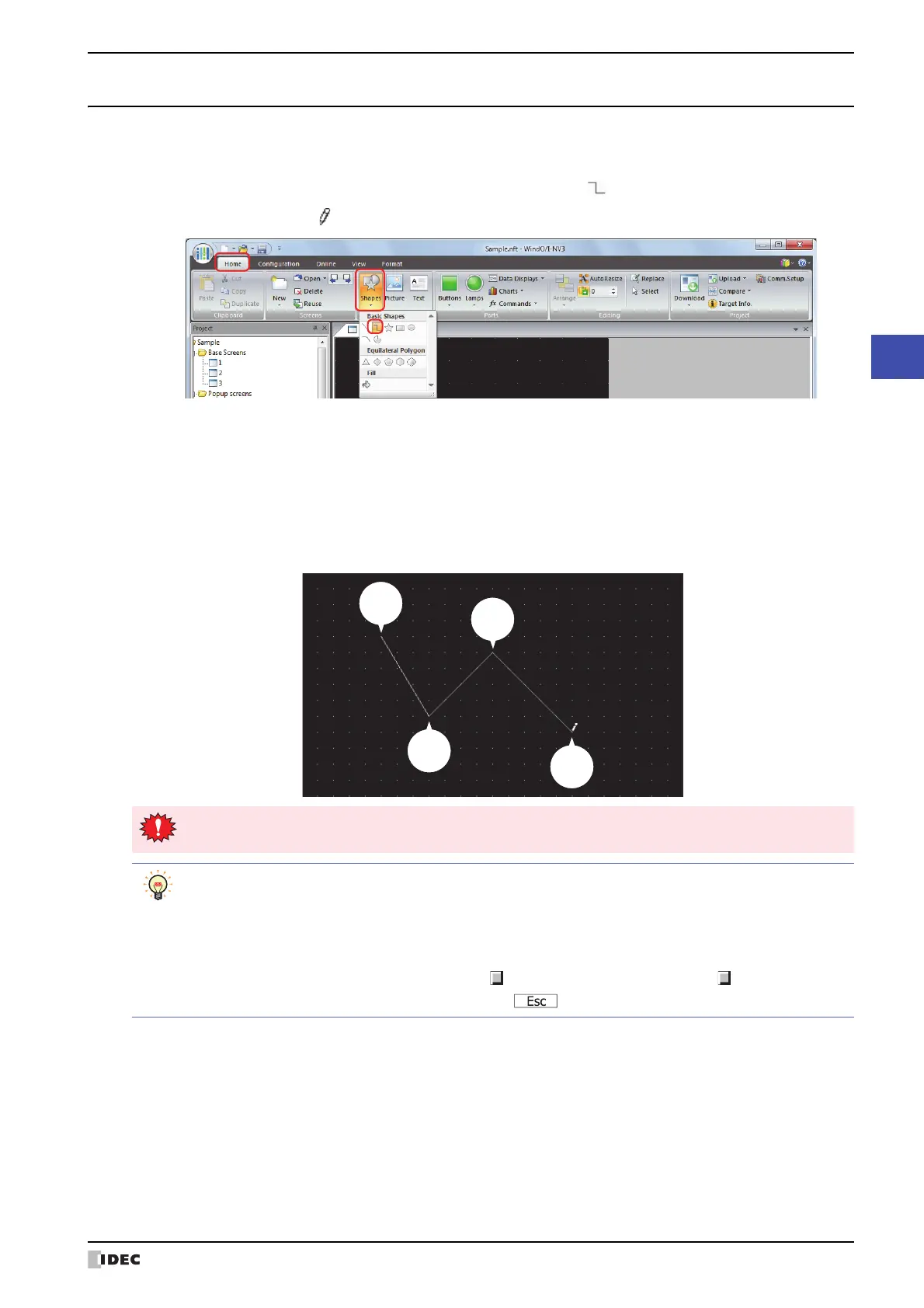

SmartAXIS Touch User’s Manual 6-3
1 Shapes
6
Drawings
1.2 Polyline
● Polyline Drawing Procedure
This section describes the procedure for drawing polylines.
1 On the Home tab, in the Drawings group, click Shapes, and then click (Polyline) under Basic Shapes.
The mouse cursor changes to (pencil).
2 Click at the location (starting point) to start drawing the polyline on the edit screen.
3 Click the corner point locations in order.
A line is drawn that connects the starting point and the various corner point locations in the order that they were
created.
4 Double click at the ending point location.
A line is drawn that connects the last corner point and the ending point.
Ending
point
Starting
point
Corner
point
The maximum number of corner points in a polyline, including the starting point and the ending point, is
300 points.
• To change the style of the drawn polyline, perform one of the following operations.
- Double click the polyline to open the Properties dialog box
- Select the polyline and select the style with Shape Style on the Format tab
- Select the polyline and right click to display the popup menu
• To change the starting point, corner points, or the ending point of the drawn polyline, select the polyline
and right click on it, and then click Reshape. is displayed on the polyline. Drag to the desired
location. Double click the edit screen or press the key to finish changing the shape.
