3 Project Settings Dialog Box
3-32 SmartAXIS Touch User's Manual

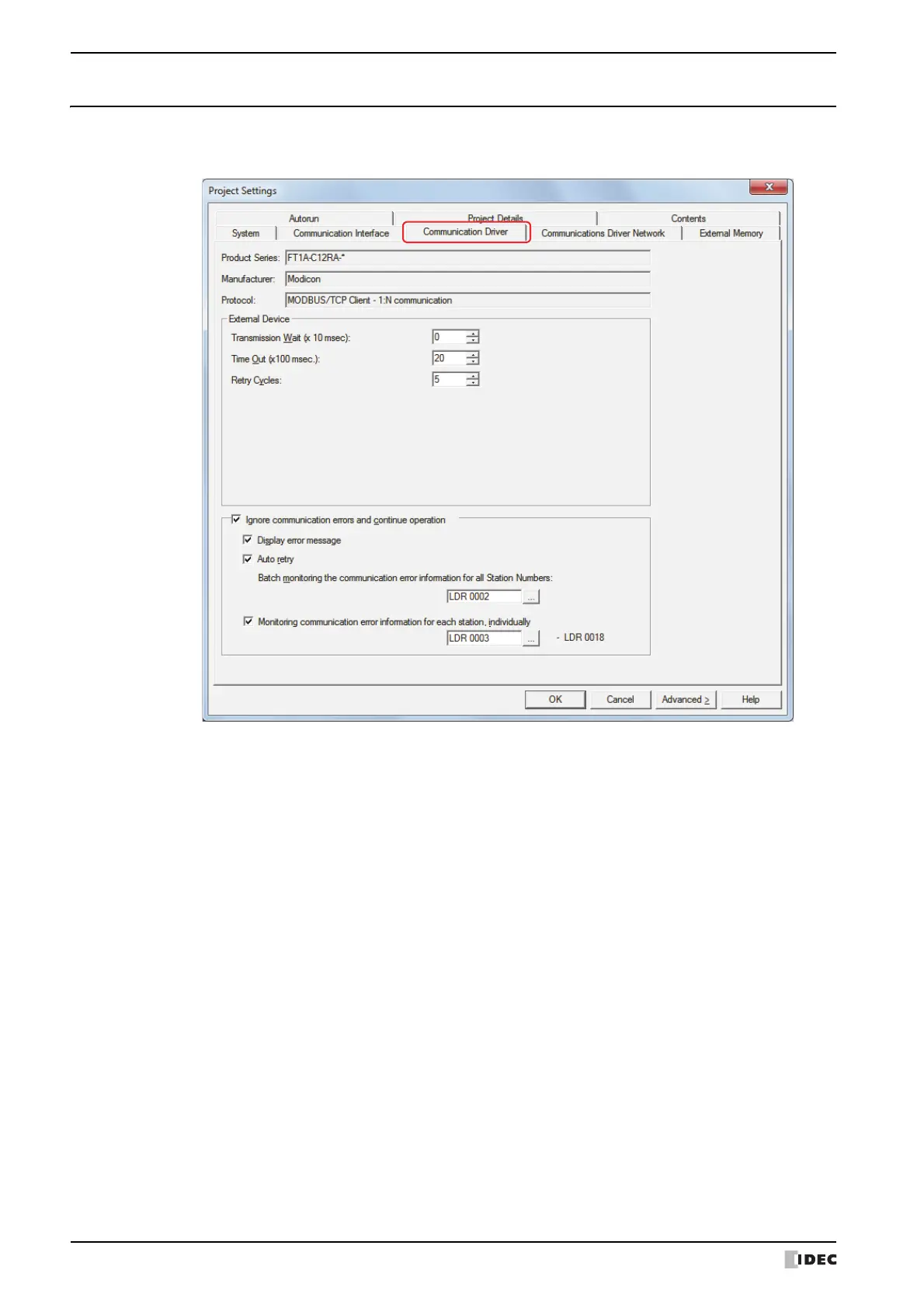

3.3 Communication Driver Tab
The Communication Driver tab is used to configure the communication driver for the external device configured in
the current project data.
■ Product Series
Shows the Touch model configured in the current project data.
■ Manufacturer
Shows the external device manufacturer configured in the current project data.
■ Protocol
Shows the communication driver name configured in the current project data.
■ External Device
These options configure the communication driver to use. For details, refer to the "External Device Setup Manual".
Transmission Wait (x 10 msec): Specifies the transmission interval for communication commands (0 to 255).
Time Out (x 100 msec): Specifies the time to wait for a response from the external device (1 to 255).
Retry Cycles: Specifies the number of times to execute a reconnection when the Touch cannot
communicate with the external device. When the number of reconnect attempts
reaches the number of times set here, a communication error is displayed.
