8.1 How the Numerical Display is Used

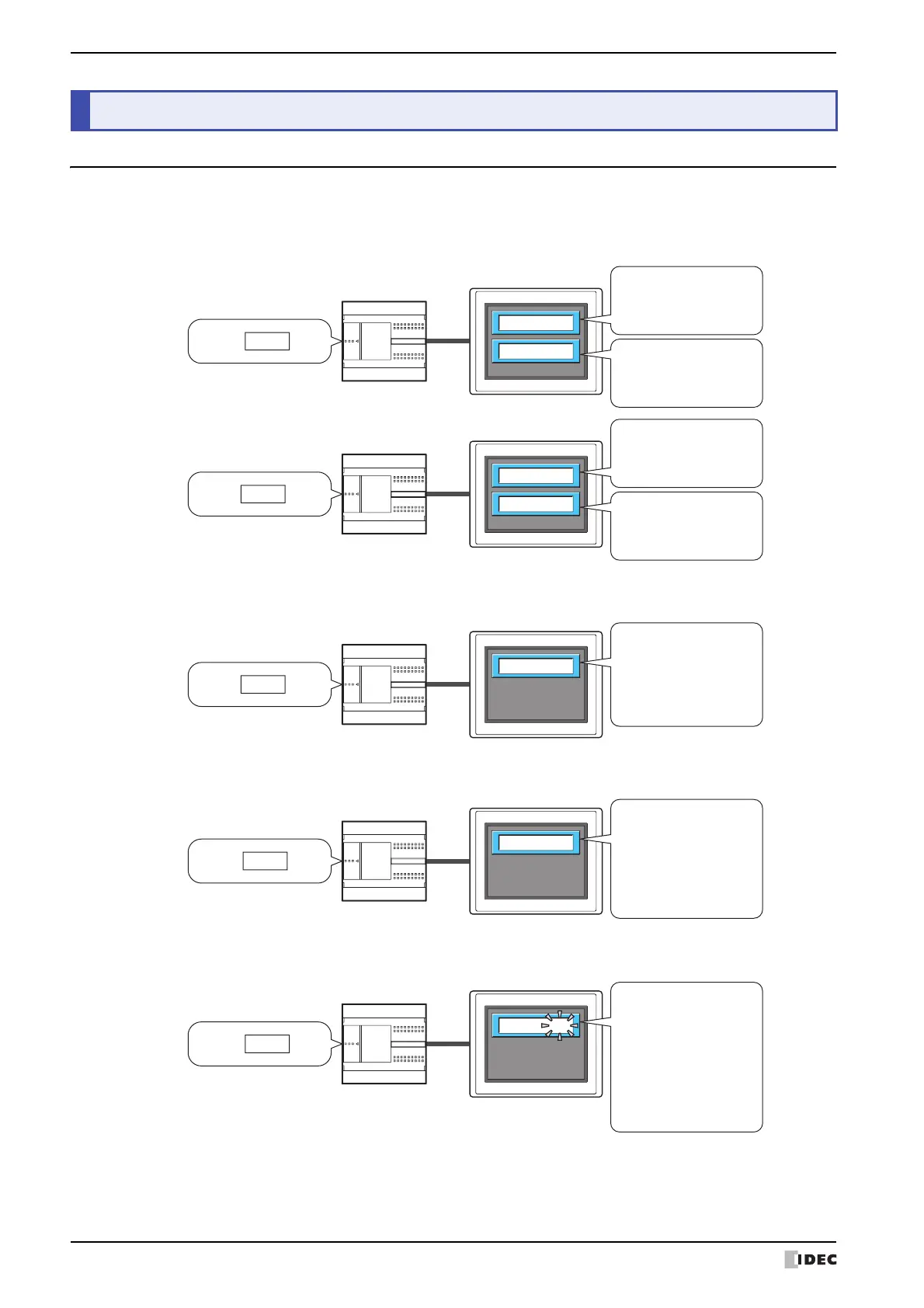

The Numerical Display is used to display the value of a word device in the specified format.
• Display the current value of device
• Display the decimal point
• Display the unit
• Blink a value that exceeds the minimum or the maximum
8 Numerical Display
65535
-1
External device
Touch
D100 :
FFFF
Display Device : D100
Display Type : Decimal
Data Type : BIN16(+)
Digits : 5
Display Device : D100
Display Type : Decimal
Data Type : BIN16(+/-)
Digits : 5
(Hex)
AD2
?
External device
Touch
D100 :
1234
Display Device : D100
Display Type : Hexadecimal
Data Type : BIN16(+)
Digits : 4
Display Device : D100
Display Type : Decimal
Data Type : BCD4
Digits : 4
(
Decimal )
123.4
External device
Touch
D100 :
1234
Display Device : D100
Display Type : Decimal
Data Type : BIN16(+/-)
Digits : 4
Display Floating Point : On
Floating Digits : 1
(
Decimal )
1234 pcs.
External device
Touch
D100 :
1234
Display Device : D100
Display Type : Decimal
Data Type : BIN16(+)
Digits : 4
With Unit : On
Text ID : 1
Text : pcs.
(Decimal)
120
External device
Touch
D100 :
120
Display Device : D100
Display Type : Decimal
Data Type : BIN16(+)
Digits : 3
Range : Value
Minimum : 0
Maximum : 100
When Data Over
Blink : Selected
(Decimal)
