1 Overview
15-6 SmartAXIS Touch User’s Manual

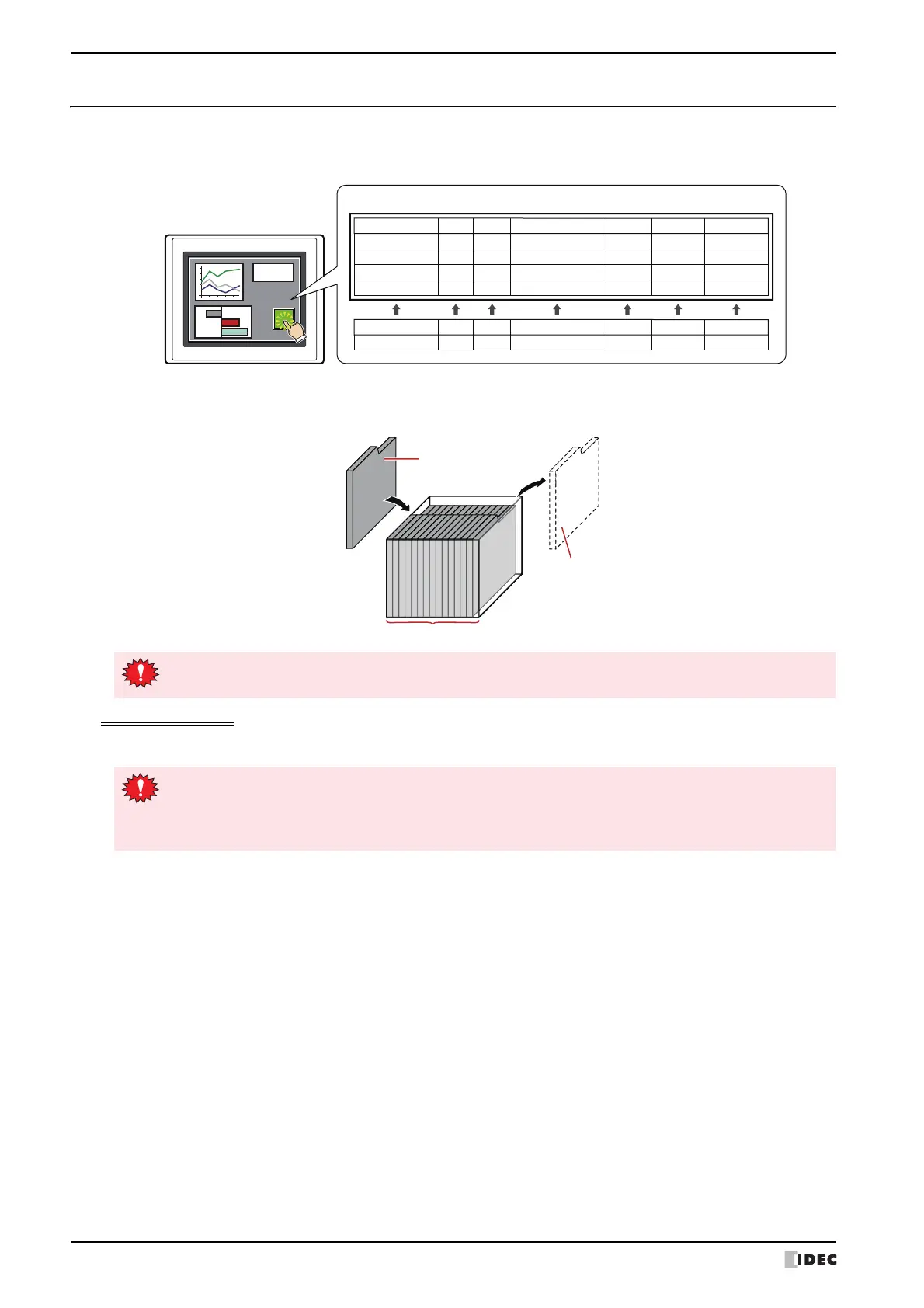

1.4 Saving and Deleting Data
● Saving Data
The recorded data is saved in the data storage area.
If the saved data exceeds the Operation Log data storage amount, the oldest data is deleted and the new data is
saved.
Data Storage Amount
The maximum amount of data that can be saved in the data storage area is 3579.
● Deleting Data
The method to delete recorded data from the data storage area is as follows.
• On the WindO/I-NV3 Online tab, click the arrow under Clear, and then click All or Operation Log Data. For
details, refer to Chapter 23 “4 Clear” on page 23-22.
• On the Top Page in the System Mode, press Main Menu, Initial Setting, Initialize, and Opn Log in order.
Tou ch
130
Operation Log data
Sampling Time User Screen No. Event Name Part Name Details Changed to
12/01/2011 12:00:10 - Base1 Power ON - - -
12/01/2011 12:01:23 User1 Base1 Switch to Base Screen - - Base2
12/01/2011 12:02:45 User1 Base2 Change Users - - User2
12/01/2011 12:03:06 User2 Base2 Change Operation Modes - - System Mode
12/01/2011 12:04:11 User2 Base2 Press buttons BitSwitch - -
12/01/2011 12:04:11 User2 Base2 Write Data to any Devices - LDR 0 55
Operation Log data storage amount
Oldest data
(delete)
New data
When the backup battery is depleted, the data in the Operation Log is erased when the Touch is turned off.
The maximum amount of data that can be recorded by a single operation is 150 items. When writing to
multiple devices in a single operation using the Multi-Button or other part, data over 150 items cannot be
recorded. If the data to be recorded in a single operation exceeds 150 items, HMI Special Internal Relay
LSM22 is set to 1. For details, refer to Chapter 27 “HMI Special Internal Relay (LSM)” on page 27-1.
To Next Page
