1.9 Fill

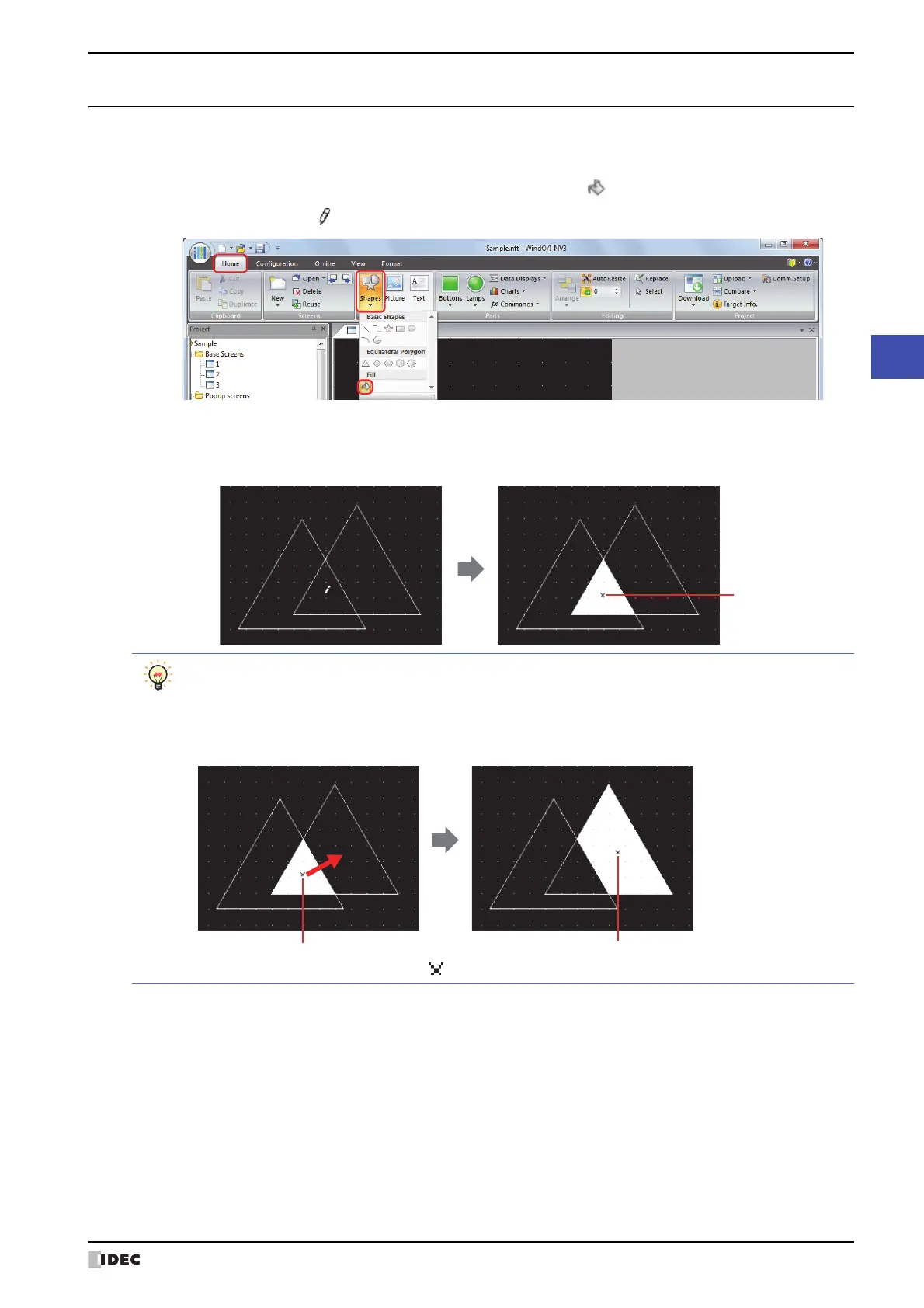

● Fill Configuration Procedure
This section describes the fill configuration procedure.
1 On the Home tab, in the Drawings group, click Shapes, and then click (Fill) under Fill.
The mouse cursor changes to (pencil).
2 Click on a section where multiple shapes overlap on the edit screen.
The section where multiple shapes overlap is filled with the Foreground Color, Background Color, and Pattern
of the shape last drawn or the shape that last had its style changed. The clicked location is the fill starting point.
• To change the fill style, perform one of the following operations.
- Double click the fill starting point to open the Properties dialog box
- Select the fill starting point and select the style with Shape Style on the Format tab
- Select the fill starting point and right click to display the popup menu
• If you move the fill starting point, the closed region where it was moved to is filled.
• To select the fill starting point, click on the edit screen or select Fill on the Object List window.
Fill starting point
Fill starting point
