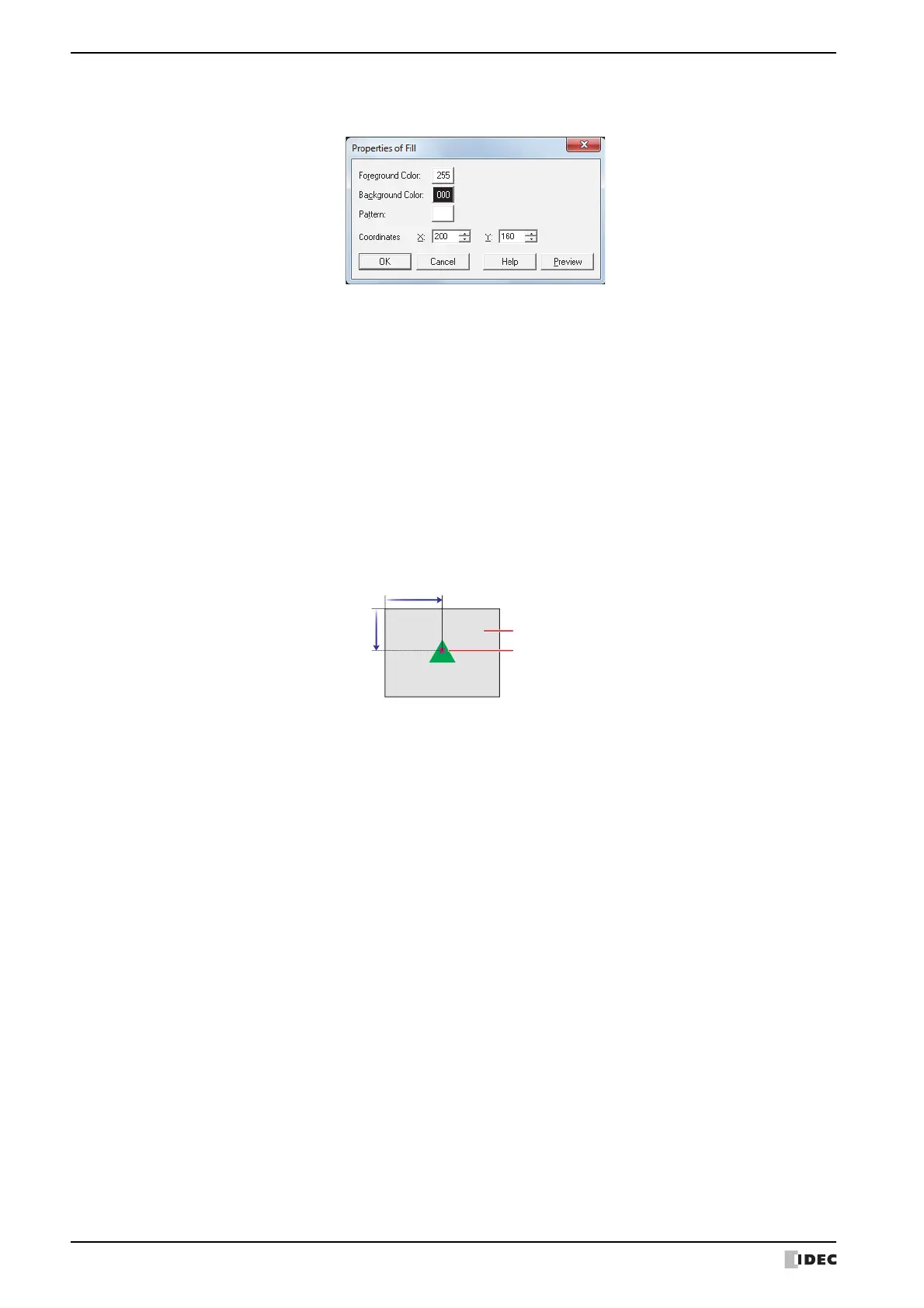

● Properties of Fill Dialog Box
This section describes items and buttons in the Properties dialog box.
■ Foreground Color, Background Color
Selects the foreground color and the background color to fill with (color: 256 colors, monochrome: 8 shades).
Click either button to display the Color Palette. Select a color from the Color Palette.
■ Pattern
Selects the pattern to fill with.
Click this button to display the Pattern Palette. Select a pattern from the Pattern Palette.
■ Coordinates
X, Y: Specifies the display position of the fill start position in coordinates.
The upper-left corner of the screen is the origin.
X: 0 to (Base Screen horizontal size - 1)
Y: 0 to (Base Screen vertical size - 1)
(0, 0)
X
Y
Screen
Fill start point
