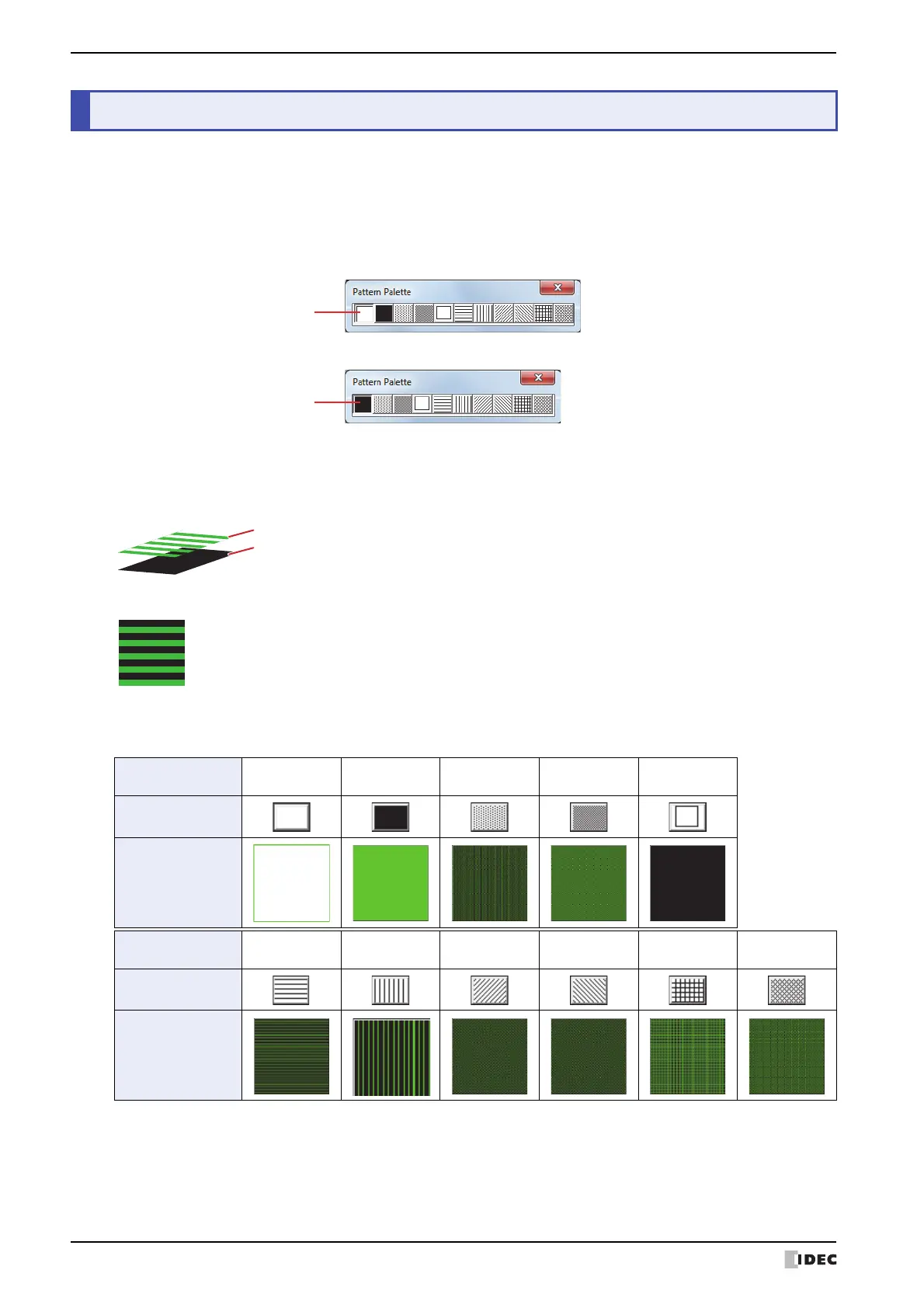

4 Pattern Palette
A-4 SmartAXIS Touch User’s Manual
The Pattern Palette is used to select patterns for drawing objects, part outlines, flanges, and other objects.
The Pattern Palette appears when you click on the Pattern button in the object’s Properties dialog box.
Click the Pattern button and select a pattern.
Drawings
Parts
●
Foreground and Background Colors
Drawing objects, part outlines and flanges are formed by foreground and background colors.
The selected pattern is applied to the foreground color.
The background color is visible through the unpainted parts of the foreground color.
●
Patterns
These patterns are available on WindO/I-NV3.
*1 None can only be applied to drawing objects. Selecting None is the same as not applying any color at all.
4 Pattern Palette
Foreground color
Background color
Pattern name
None
*1
Foreground
100%
Foreground
25%
Foreground
50%
Background
100%
Pattern buttons
Display sample
Pattern name
Horizontal
lines
Vertical lines Slant Upwards
Slant
Downwards
Crosshatch Tint
Pattern buttons
Display sample
To Next Page
