The Popup Screen that is displayed on the Base Screen when the Touch is in Run Mode. The size and coordinates of the
screen can be specified and this screen can also be moved on the Base Screen.
4.1 Popup Screen Settings

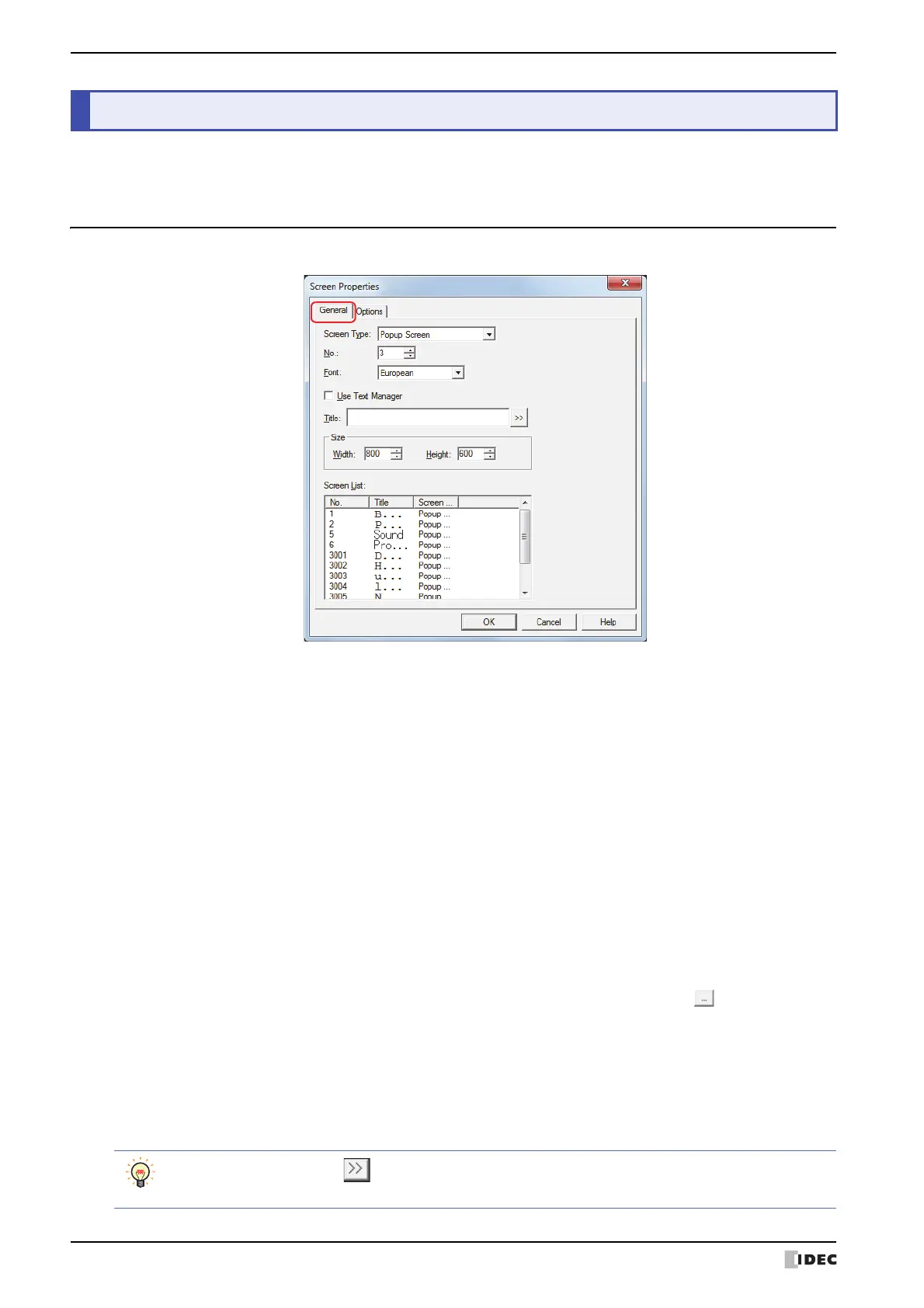

● General Tab
■ Screen Type
Select Popup Screen for the screen type.
You can only select the screen type when creating a new screen.
■ No.
Enter the Popup Screen’s screen number (1 to 3015).
However, screen numbers 3001 to 3015 are Popup Screens for standard Keypads for Numerical Input and Character
Input.
■ Font
Select the font to use for the title from the following choices:
Japanese, European, Chinese, Taiwanese, Korean, Central European, Baltic, Cyrillic
This option can only be selected when Use Text Manager is cleared.
■ Use Text Manager
Select this to use text registered in Text Manager for the screen title.
However, the text color is white, not the color set in Text Manager.
■ Text ID
Specify the Text Manager ID number (1 to 32000) to use text registered in Text Manager. Click to display Text
Manager.
This option can only be set when Use Text Manager is selected.
■ Title
Enter the Popup Screen’s title. The maximum number is 40 characters. This title is displayed in the Popup Screen’s title
bar.
This option can only be entered when Use Text Manager is cleared.
4Popup Screen
To enter Unicode text, click to display the Unicode Input dialog box. Enter the text in the Unicode Input
dialog box, and then click OK.
