3 Color Palette
Appendix
The Color Palette is used to select colors for drawing objects, text on parts, outlines, flanges, plates and other objects.
The Color Palette appears when you click on the Color button in the object’s Properties dialog box.
● Functions of Color Palette buttons
■ Color
Selects a color. Clicking these buttons sets the Color button to the selected color.
■ >>More, <<Less
Switches the palette display. Clicking >> More shows all the colors assignable to the Color button. Clicking <<
Less shows only the basic colors assignable to the Color button.
■ TMC
This feature allows use of the text color specified in Text Manager. Click this button to use the text color specified in
Text Manager. The TMC button appears on the Color Palette only if the Use Text Manager check box is selected.
●

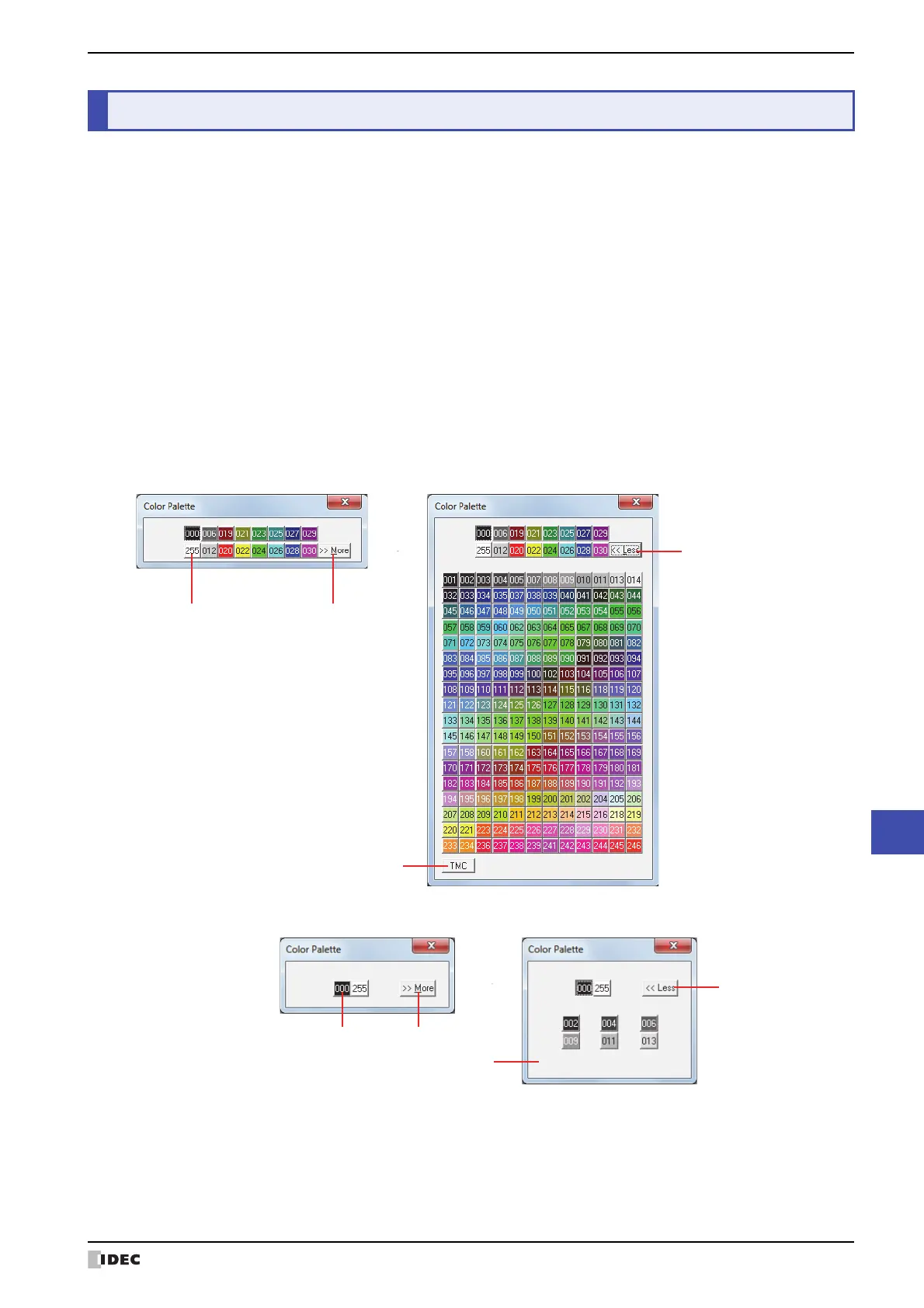

Color Palette Types
The type of color palette shown varies based on the series being used.
■ 256 Color Palette
*1
■ 8 shades Monochrome Palette
*2
*1 Color LCD models only
*2 Monochrome LCD models only
3 Color Palette
Color buttons
TMC button
>> More button
<< Less button
TMC button
Color buttons >> More button
<< Less button
