SmartAXIS Touch User’s Manual 6-1
6
Drawings
This chapter describes the procedures for drawing with shapes and the procedures for configuring pictures and text.

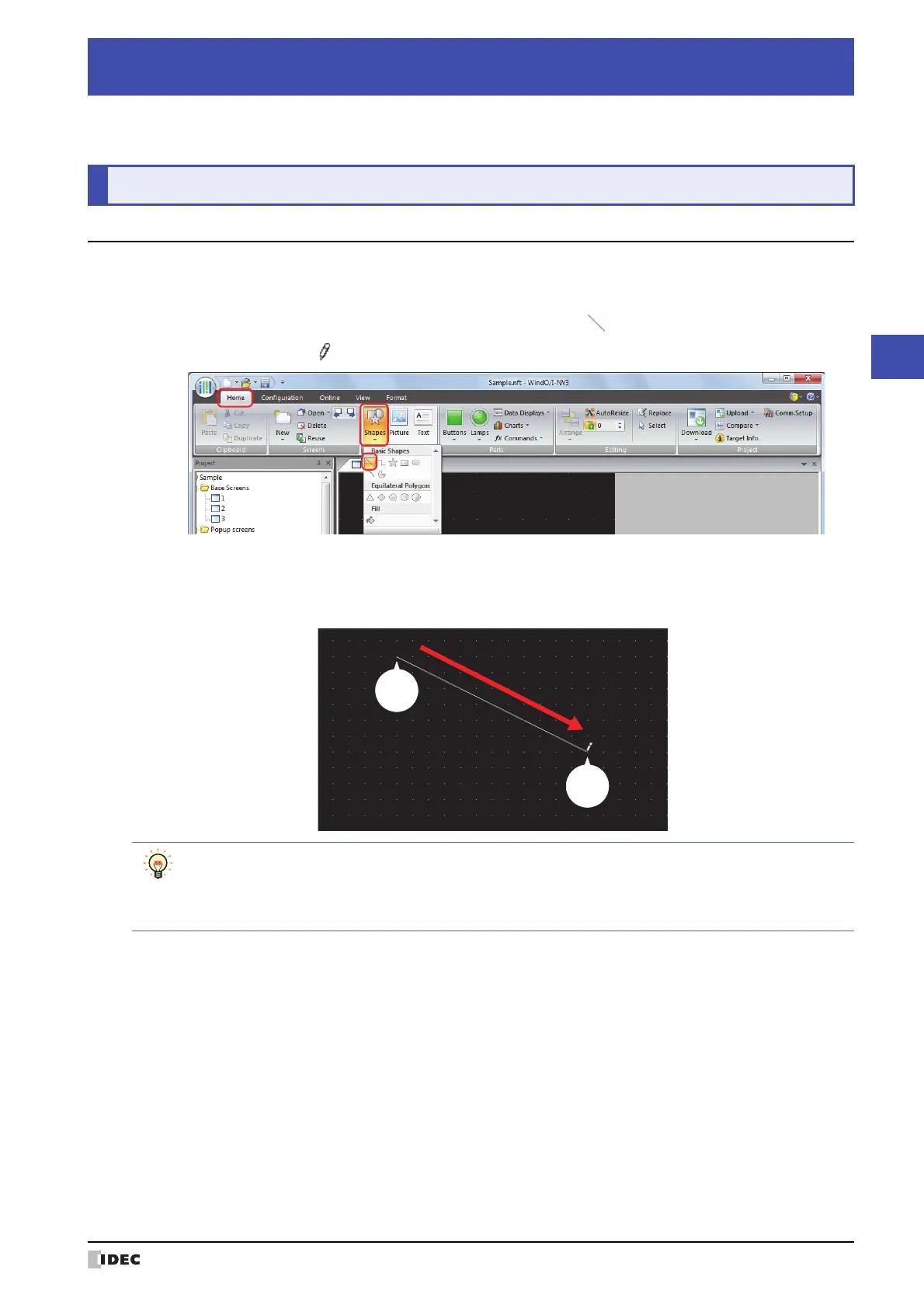

1.1 Line
● Line Drawing Procedure
This section describes the procedure for drawing lines.
1 On the Home tab, in the Drawings group, click Shapes, and then click (Line) under Basic Shapes.
The mouse cursor changes to (pencil).
2 Click and hold the mouse button at the location (starting point) to start drawing the line on the edit screen.
3 Drag the mouse to the ending point location.
A line is drawn that connects the starting point and ending point.
Chapter 6 Drawings
1Shapes
To change the style of the drawn line, perform one of the following operations.
• Double click the line to open the Properties dialog box
• Select the line and select the style with Shape Style on the Format tab
• Select the line and right click to display the popup menu
To Next Page
