SmartAXIS Touch User’s Manual 13-27
4 Using Data and Detected Alarms
13
Alarm Log Function
4.2
Displaying Registered Messages with the Alarm List Display According to the Active Alarm

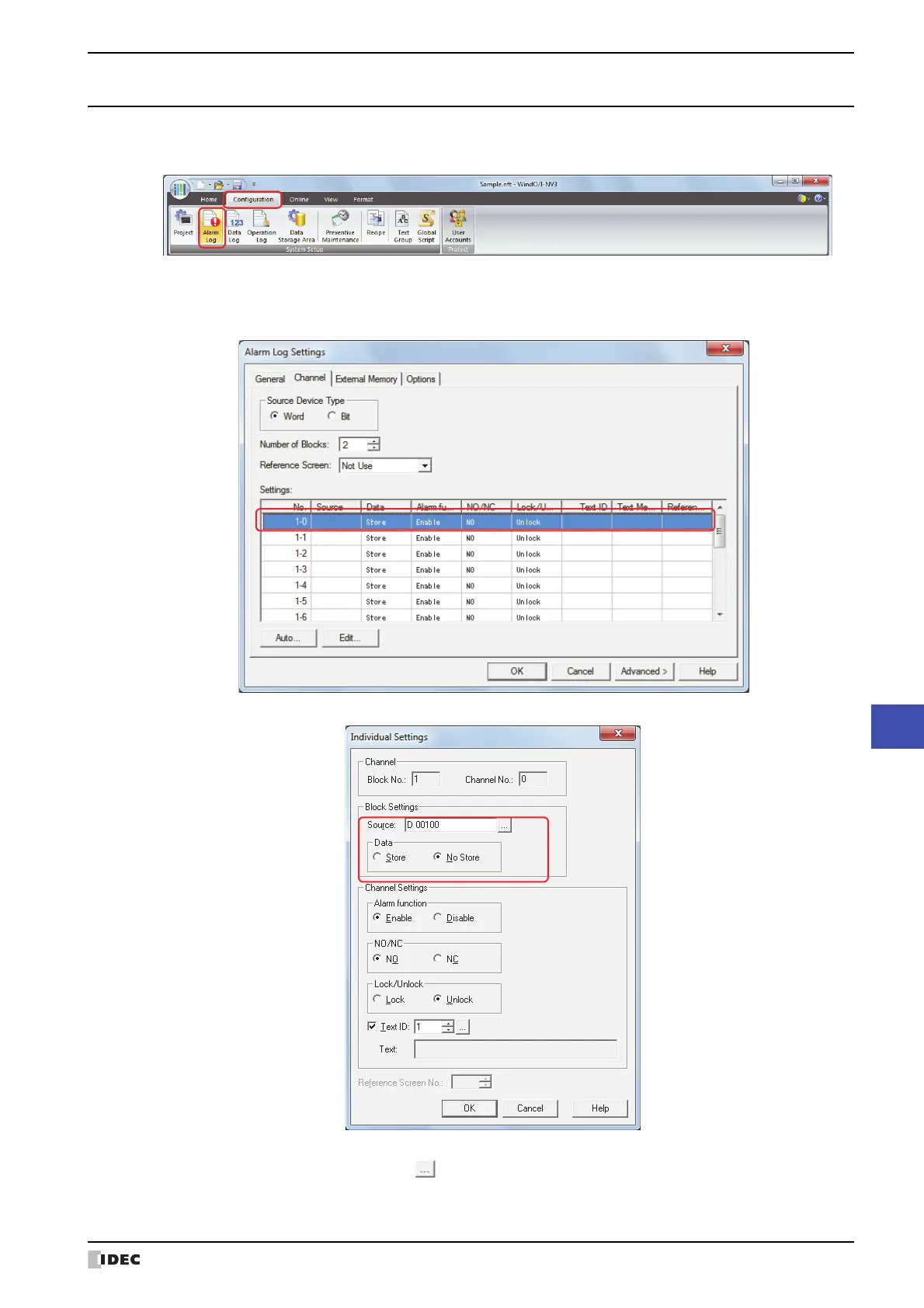

1 On the Configuration tab, in the System Setup group, click Alarm Log.
The Alarm Log Settings dialog box is displayed.
2
Select the type of device to monitor under
Source Device Type
on the
Channel
tab and specify
Number of Blocks
.
3 Select the channel number to register a message to, and then click Edit.
The Individual Settings dialog box is displayed.
4 Specify the device to monitor in Source and select No Store under Data.
5 Select Enable under Alarm function and configure NO/NC and Lock/Unlock.
6 Select the Text ID check box, and then click .
Text Manager opens.
To Next Page
