SmartAXIS Touch User’s Manual 9-115
8 Numerical Display
9
Data Displays

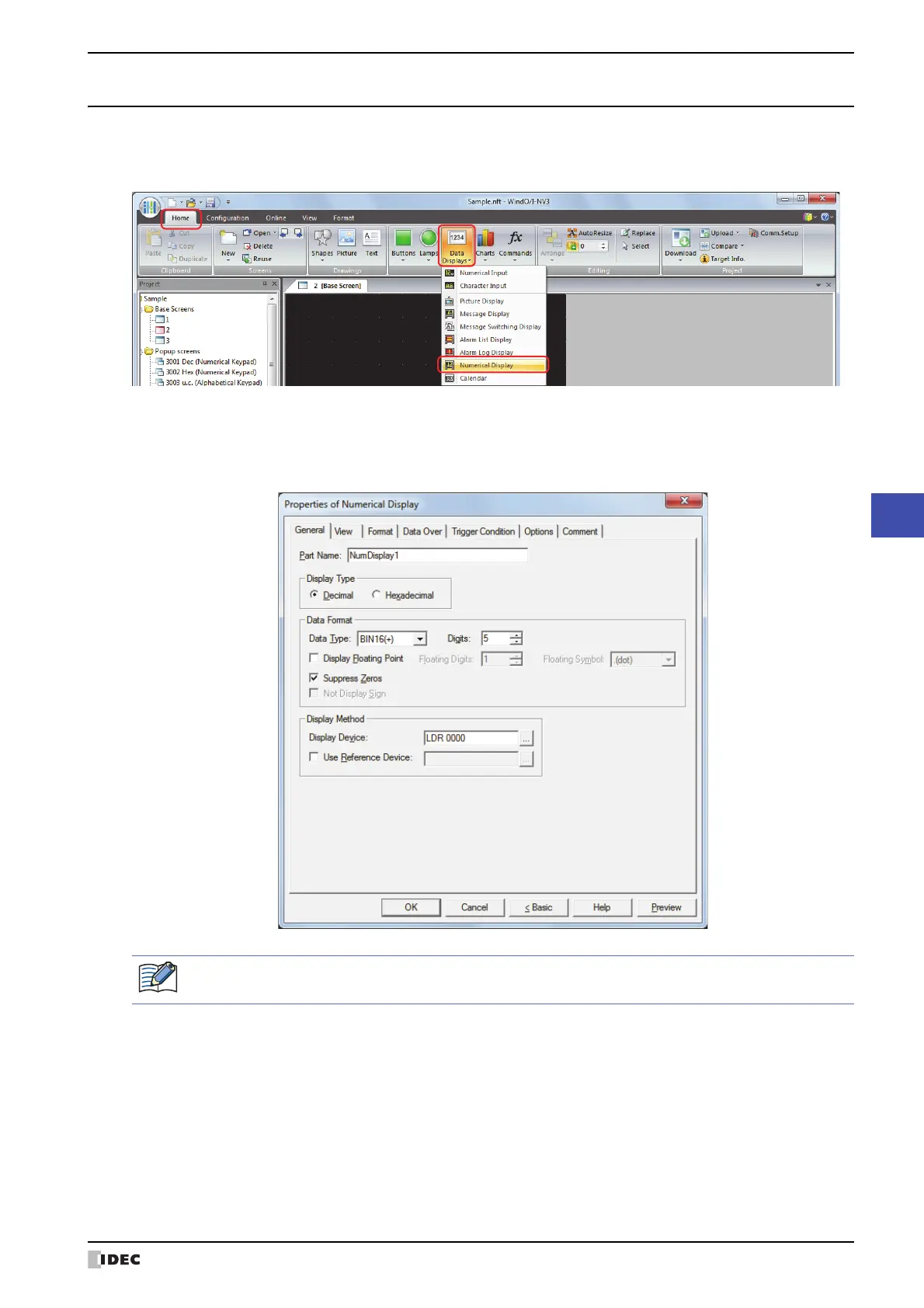

8.2 Numerical Display Configuration Procedure
This section describes the configuration procedure for Numerical Displays.
1 On the Home tab, in the Parts group, click Data Displays, and then click Numerical Display.
2 Click a point on the edit screen where you want to place the Numerical Display.
3 Double-click the dropped Numerical Display and a Properties dialog box will be displayed.
4 Change the settings on each tab as necessary.
The Data Over tab, Trigger Condition tab and Options tab only appear in Advanced mode.
To switch to Advanced mode, click Advanced.
To Next Page
