1 Numerical Input
9-22 SmartAXIS Touch User’s Manual

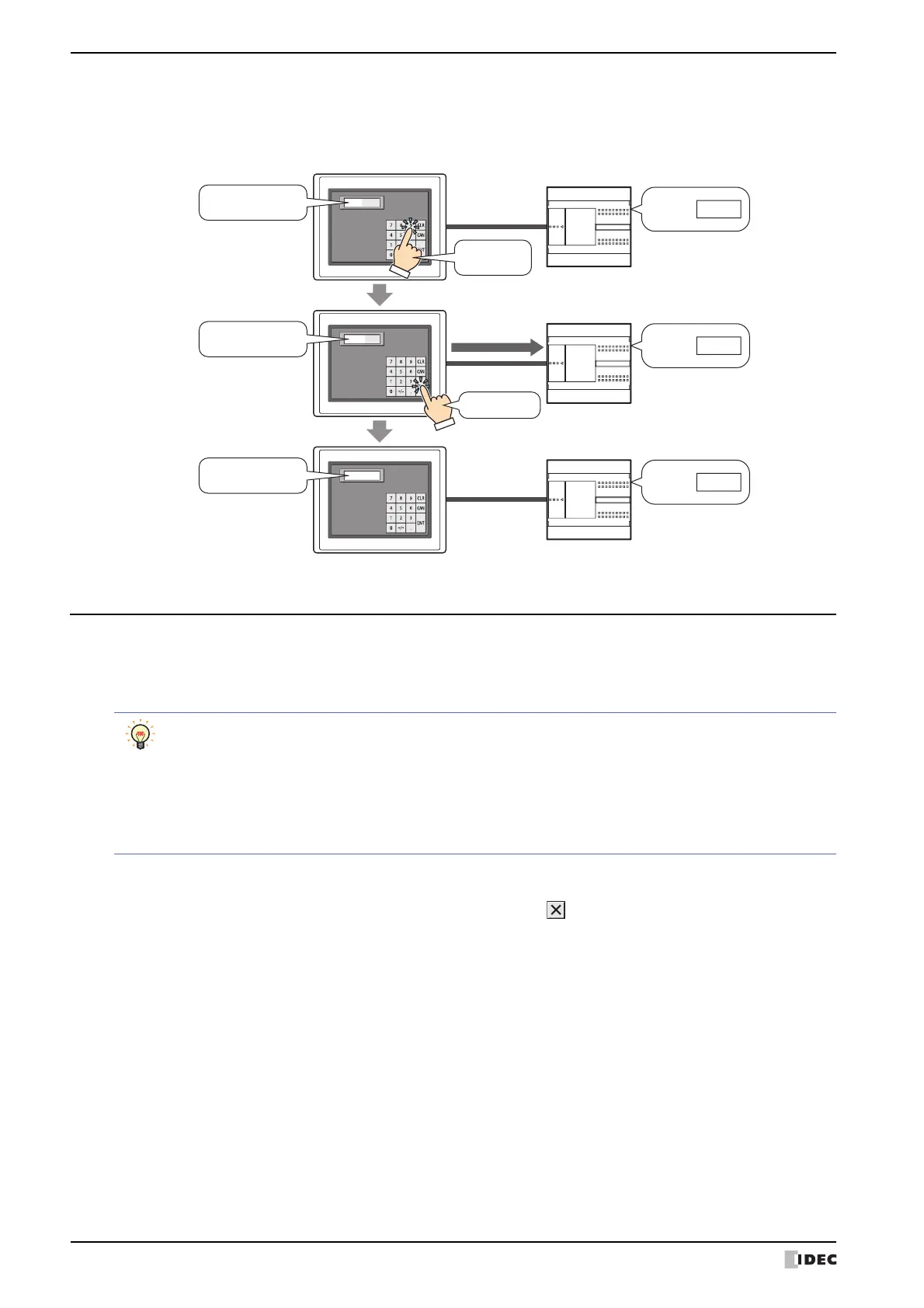

■ Without Pressing the Numerical Input, Directly Entering Values from a Keypad on the Same Screen
Arrange a Numerical Input and a keypad on the same screen. In the properties dialog box for the Numerical Input, on
the General tab, under Keypad, select Current Screen for Type and select the Always Entry Mode check box.
1.5 Advanced Usage
● Using the System Area
• When finished entering a value by pressing ENT, 1 is written to the System Area 2 Numerical Input setting
complete bit (address+3, bit 0).
• When CAN is pressed, entry mode is canceled and 1 is written to the System Area 2 Numerical Input setting cancel
bit (address+3, bit 1). However, if the keypad is closed by pressing (close) on the Popup Screen's title bar or
another Numerical Input is pressed before finished entering the value by pressing ENT, entry mode is canceled and
1 is not written to the System Area 2 Numerical Input setting cancel bit (address+3, bit 1).
• To clear the System Area 2 Numerical Input setting complete bit or the Numerical Input setting cancel bit, write 1
to System Area 1 Numerical Input setting clear bit (address+1, bit 10). To automatically clear these bits when the
Numerical Input keypad is pressed in entry mode, select the Clear Keypad bit in System Area automatically
check box on the System tab in the Project Settings dialog box.
External device
Touch
999
1234
D100:
1234
D100:
999
999
D100:
999
Write value
to device
Press ENT
Display value of device
(Entry mode)
Display value of device
(Entry mode)
Display value of device
(Entry mode)
Enter "999"
If the System Area 2 Numerical Input setting complete bit (address+3, bit 0) is set to another function's
execution condition, that function can be executed when ENT is pressed.
Example: To simultaneously close a Popup Screen when ENT is pressed
In the Properties of Goto Screen Command dialog box, on the General tab, select Close Popup
Screen for Action Mode. On the Trigger Condition tab, select Rising-edge for Trigger
Type, and configure Device as the System Area 2 Numerical Input setting complete bit
(address+3, bit 0).
