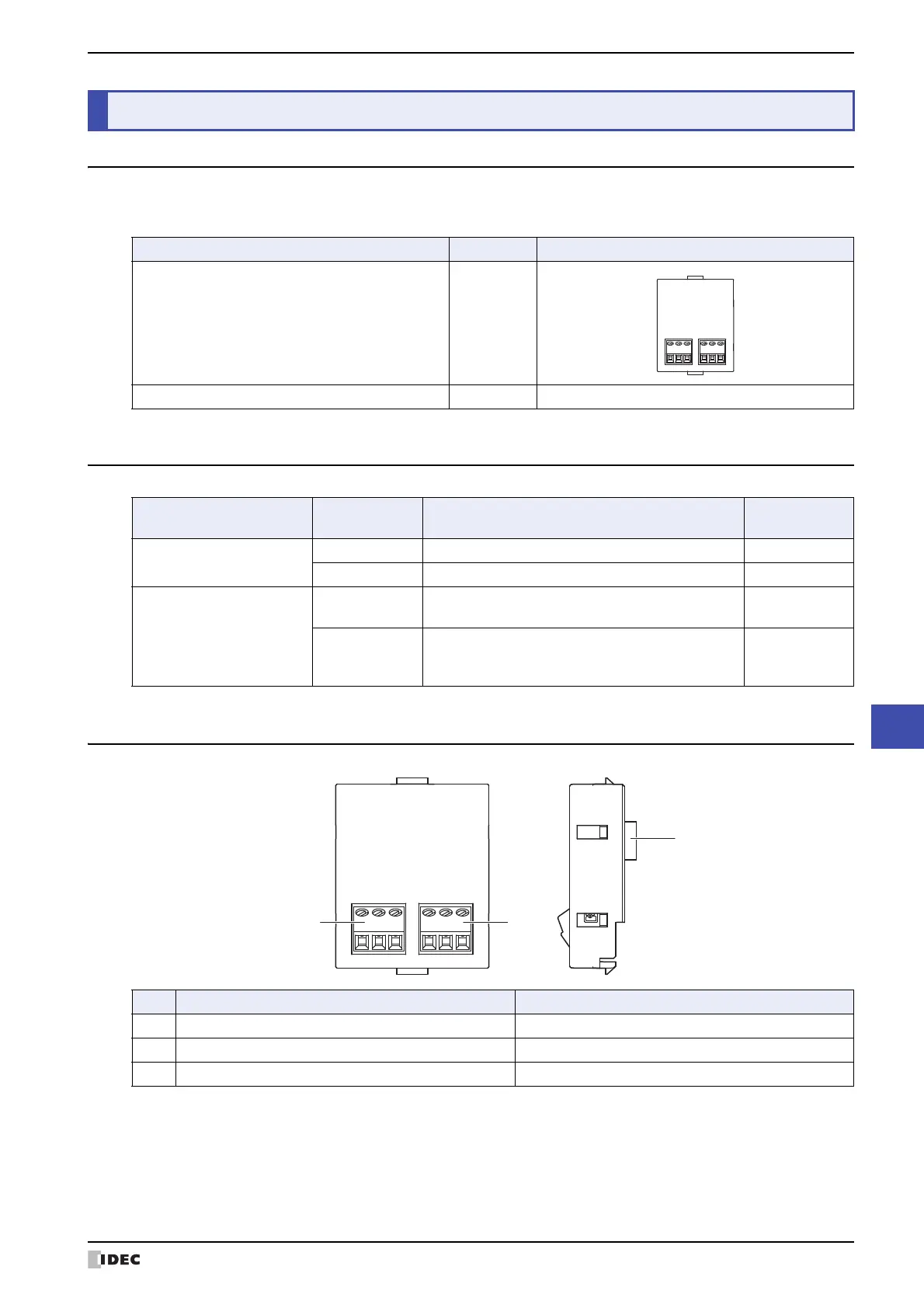

IDEC SmartAXIS Touch FT1A Series

SmartAXIS Touch User's Manual 29-29
2 Analog Cartridge
29
SmartAXIS Specifications
2.1 Packing Contents
Before installing the analog cartridge, make sure that the specifications of the product conform to your requirements,
and that no parts are missing or damaged due to accidents during transportation.
2.2
Type Number
2.3
Part Names
2 Analog Cartridge
Name Pcs/pack
Cartridge 1
Instruction Sheet 1
Cartridge type
Inputs/
outputs
Type Type No.
Analog Output Cartridge
Output: 2 Voltage output: 0 to 10 V FC6A-PK2AV
Output: 2 Current output: 4 to 20 mA FC6A-PK2AW
Analog Input Cartridge
Input: 2
Voltage input: 0 to 10 V
Current input: 0 to 20 mA, 4 to 20 mA
FC6A-PJ2A
Input: 2
Thermocouple input: K, J, R, S , B, E, T, N, C
Resistance thermometer input: Pt100, Pt1000,
Ni100, Ni1000
FC6A-PJ2CP
No. Name Description
(1) Terminal channel 0
(2) Terminal channel 1
(3) Connection connector for the Touch
(1) (2)
(3)
