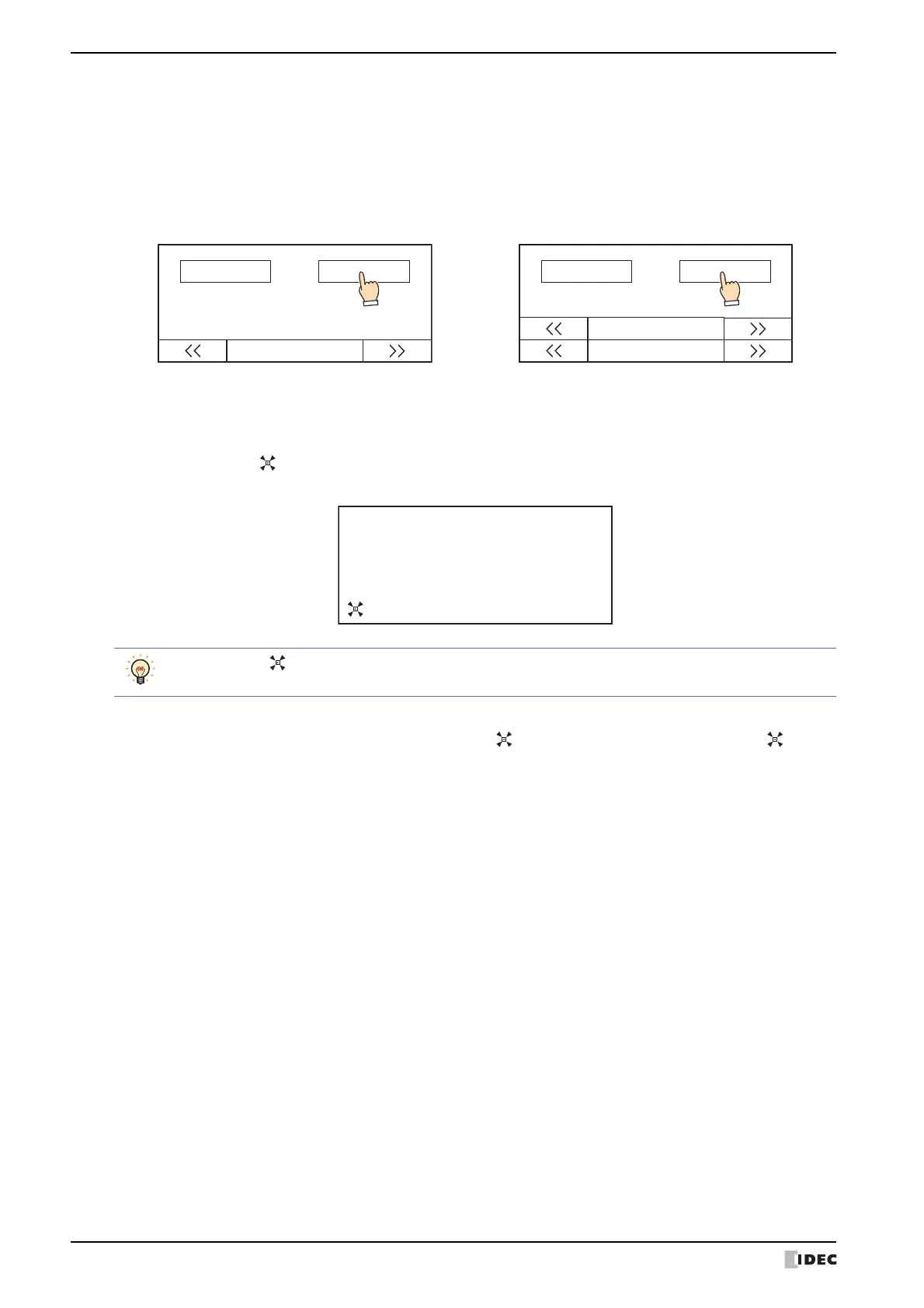

● Adjusting the Touch Panel
A gap may be caused in the operation accuracy of the touch panel by the secular distortion, etc. Adjust the touch
panel according to the following procedure when there is a gap in the operation of the touch panel.
1 Press Main Menu on Top Page in System Mode. The Main Menu appears.
2 Press Init Set, Initialize, and then Touch PnlAdj. The confirmation screen appears and asks “Adjust Touch Panel
setting?” is displayed. Press Yes.
The Touch Panel Adjust Screen is displayed.
3 Press the center of the , then the position of the symbol changes one after another. Press five symbols
sequentially.
4 When normally recognized, the confirmation screen of 2 is restored.
At step
3, when pressing a point away from the center of the , a recognition error will result. Then the returns
to the initial position, then repeat the step of
3 again.
Top Page (Color LCD models) Top Page (Monochrome LCD models)
,3$GG'+&3
-8/)5,
6<67(002'(7233$*(
%5,*+71(66
5XQ 0DLQ0HQX
,3$GG'+&3
-8/)5,
6<67(002'(7233$*(
&2175$67
%5,*+71(66
5XQ 0DLQ0HQX
Pressthecenterof
thesymbol.
When pressing , make sure to press the center of the symbol. This will ensure the accuracy of the touch
panel operation.
