IDEC SmartAXIS Touch FT1A Series

SmartAXIS Touch User's Manual 29-3
1 Touch
29
SmartAXIS Specifications

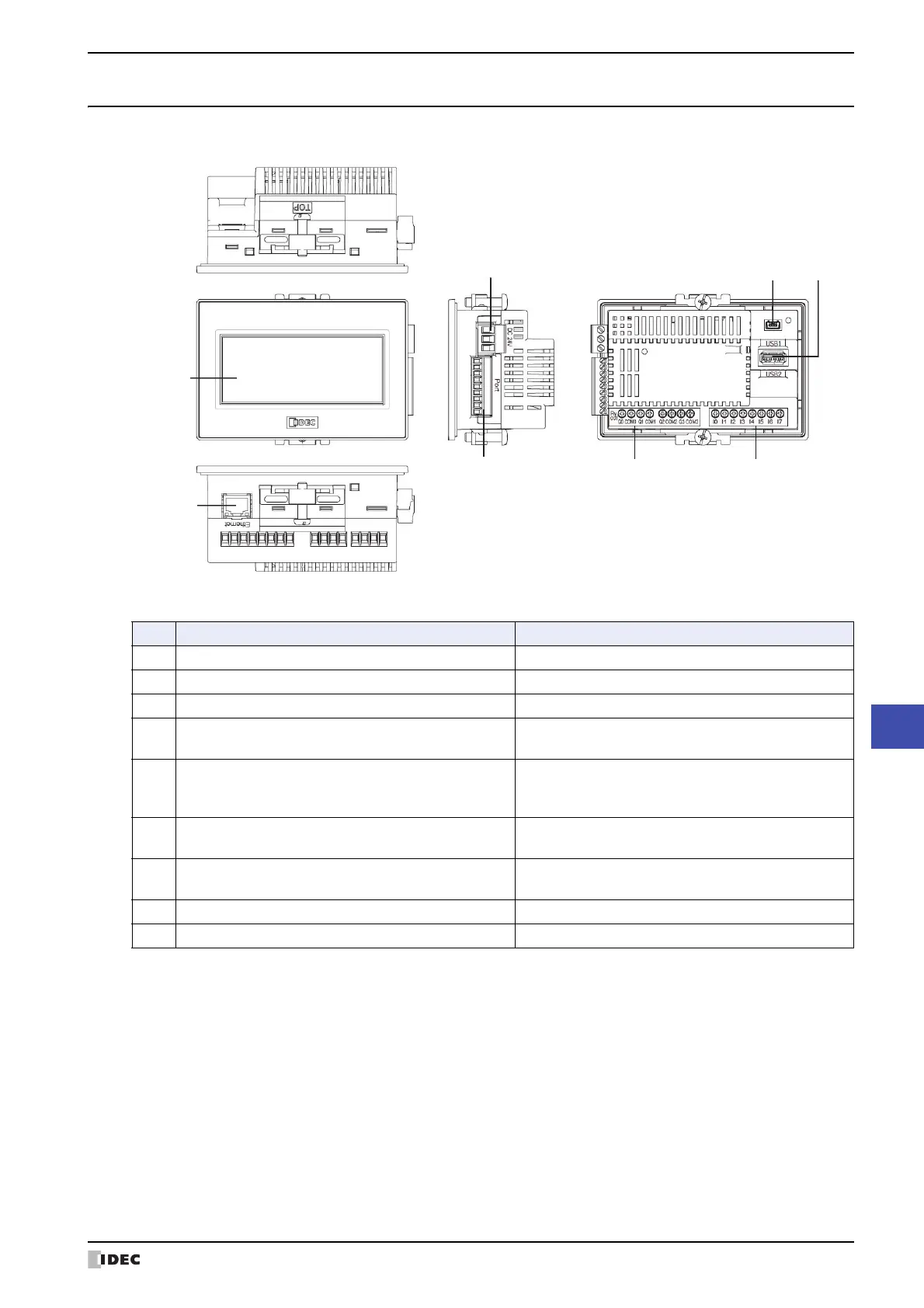

1.3 Part Names
■ FT1A-*12RA
No. Name Description
(1) Display
(2) Touch Panel
(3) Power Supply Terminal Connector : Terminal Block 3 pin
(4) Serial Interface (Port)
RS232C, RS422/485
Connector : Terminal Block 9 pin
(5) Ethernet Interface (Ethernet)
IEEE802.3u
10BASE-T/100BASE-TX
Connector : RJ-45
(6) USB Interface (USB1)
USB2.0 (Device)
Connector : Mini-B
(7) USB Interface (USB2)
USB1.1 (External device)
Connector : Type A
(8) Output Terminal (Q0 to Q3) Relay output (10A)
(9) Input Terminal (I0 to I7) Digital input, Analog input
(1), (2)
(5)
(4)
(3)
(6) (7)
(8) (9)
