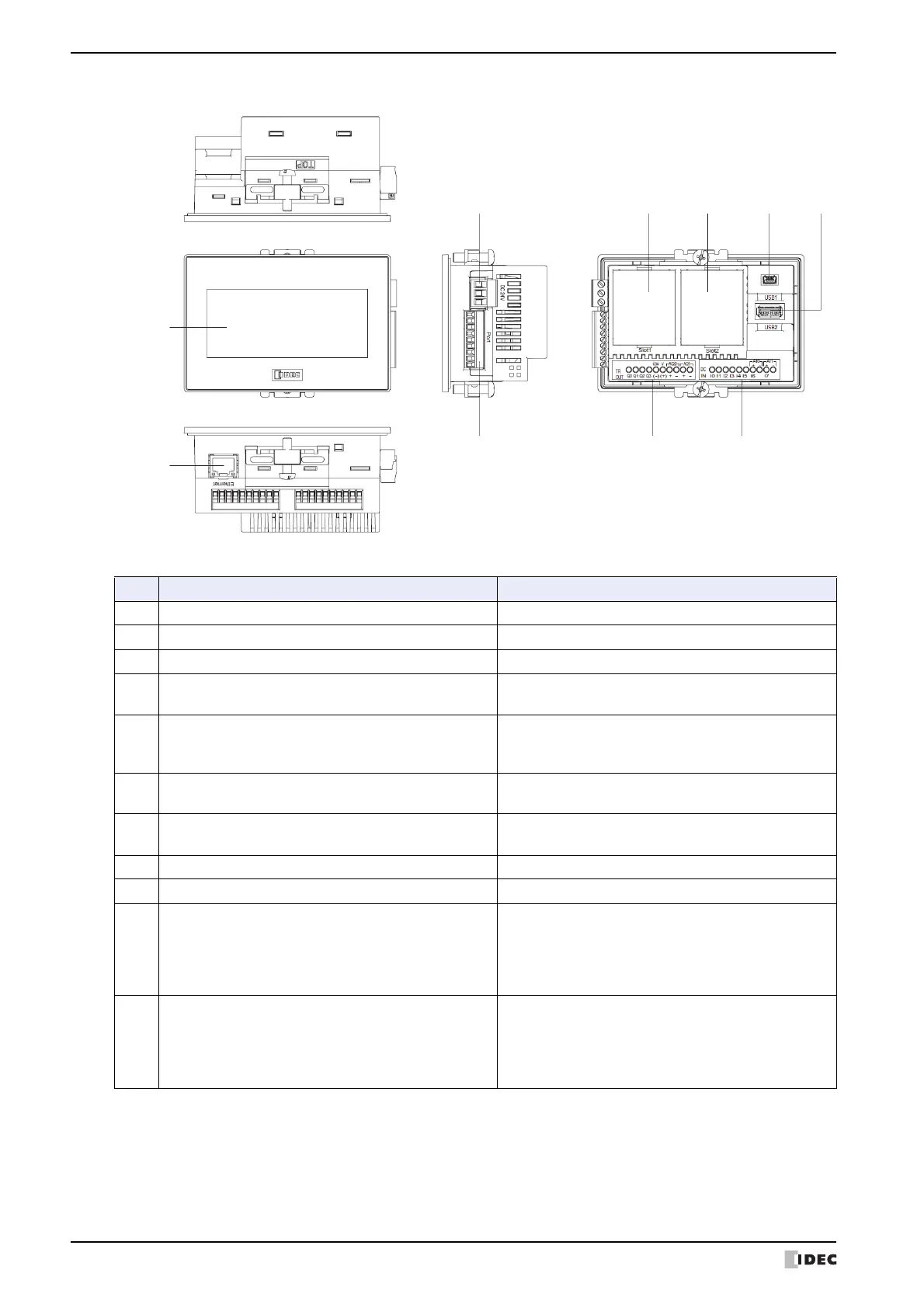

■ FT1A-*14KA/14SA
No. Name Description
(1) Display
(2) Touch Panel
(3) Power Supply Terminal Connector : Terminal Block 3 pin
(4) Serial Interface (Port)
RS232C, RS422/485
Connector : Terminal Block 9 pin
(5) Ethernet Interface (Ethernet)
IEEE802.3u
10BASE-T/100BASE-TX
Connector : RJ-45
(6) USB Interface (USB1)
USB2.0 (Device)
Connector : Mini-B
(7) USB Interface (USB2)
USB1.1 (External device)
Connector : Type A
(8) Output Terminal (Q0 to Q3, AQ0 to AQ1) Transistor output, analog output
(9) Input Terminal (I0 to I7) Digital input, Analog input
(10) Slot 1
Optional product (analog cartridge) expansion
•FC6A-PJ2A
•FC6A-PK2AV
•FC6A-PK2AW
•FC6A-PJ2CP
(11) Slot 2
Optional product (analog cartridge) expansion
•FC6A-PJ2A
•FC6A-PK2AV
•FC6A-PK2AW
•FC6A-PJ2CP
(1), (2)
(5)
(4)
(3)
(6) (7)
(8)
(9)
(10) (11)
