4 Meter

10-50 SmartAXIS Touch User’s Manual

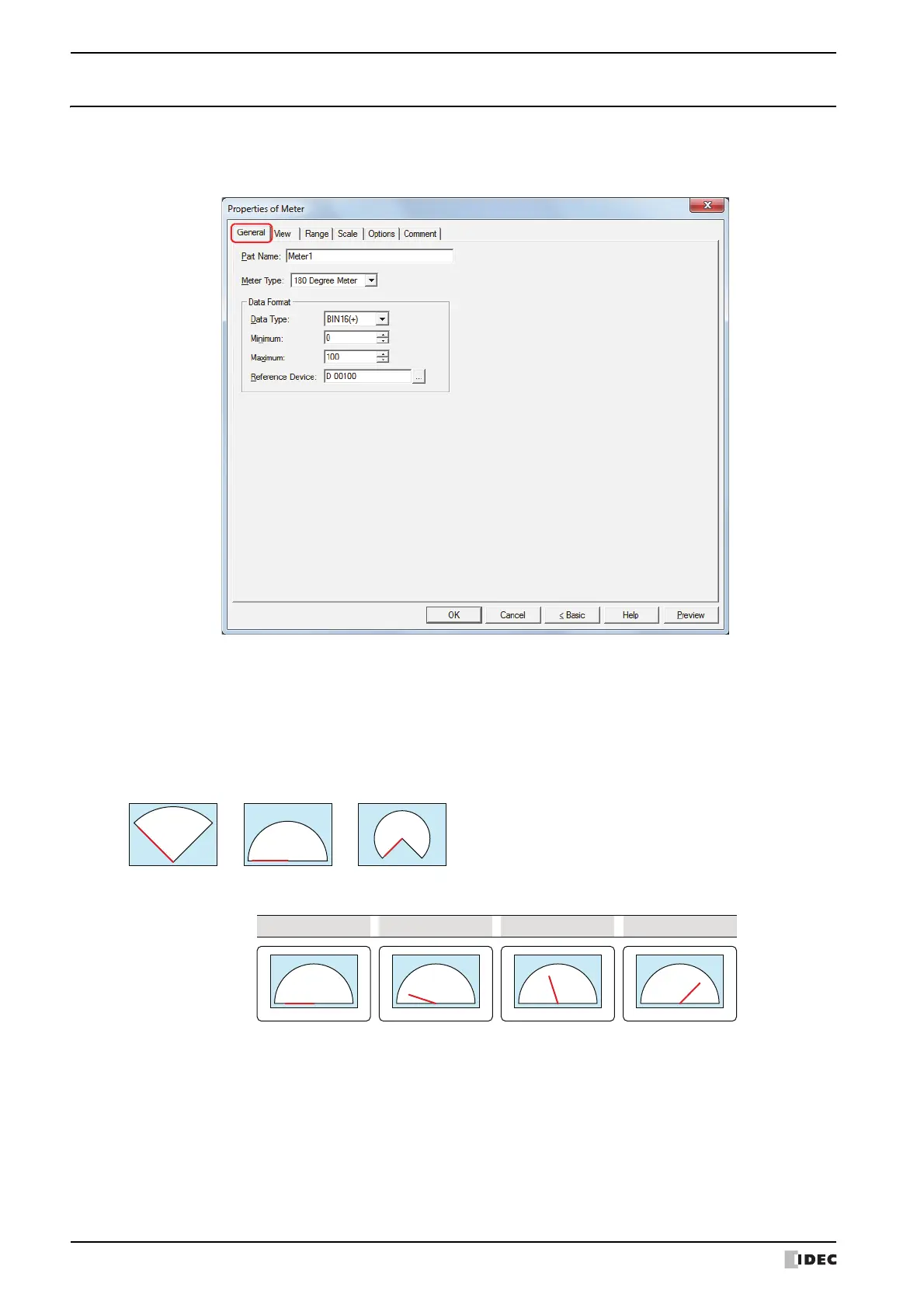

4.3 Properties of Meter Dialog Box

This section describes items and buttons in the Properties dialog box.

●

General Tab

■ Part Name

Enter a name for the part. The maximum number is 20 characters.

■ Meter Type

Select the type of meter from the following items.

90 Degree Meter, 180 Degree Meter, 270 Degree Meter

Example: 180 Degree Meter

90-degree meter 180-degree meter 270-degree meter

180-degree meter display

Data

10 40 75
