2 Multi-State Lamps
8-16 SmartAXIS Touch User’s Manual

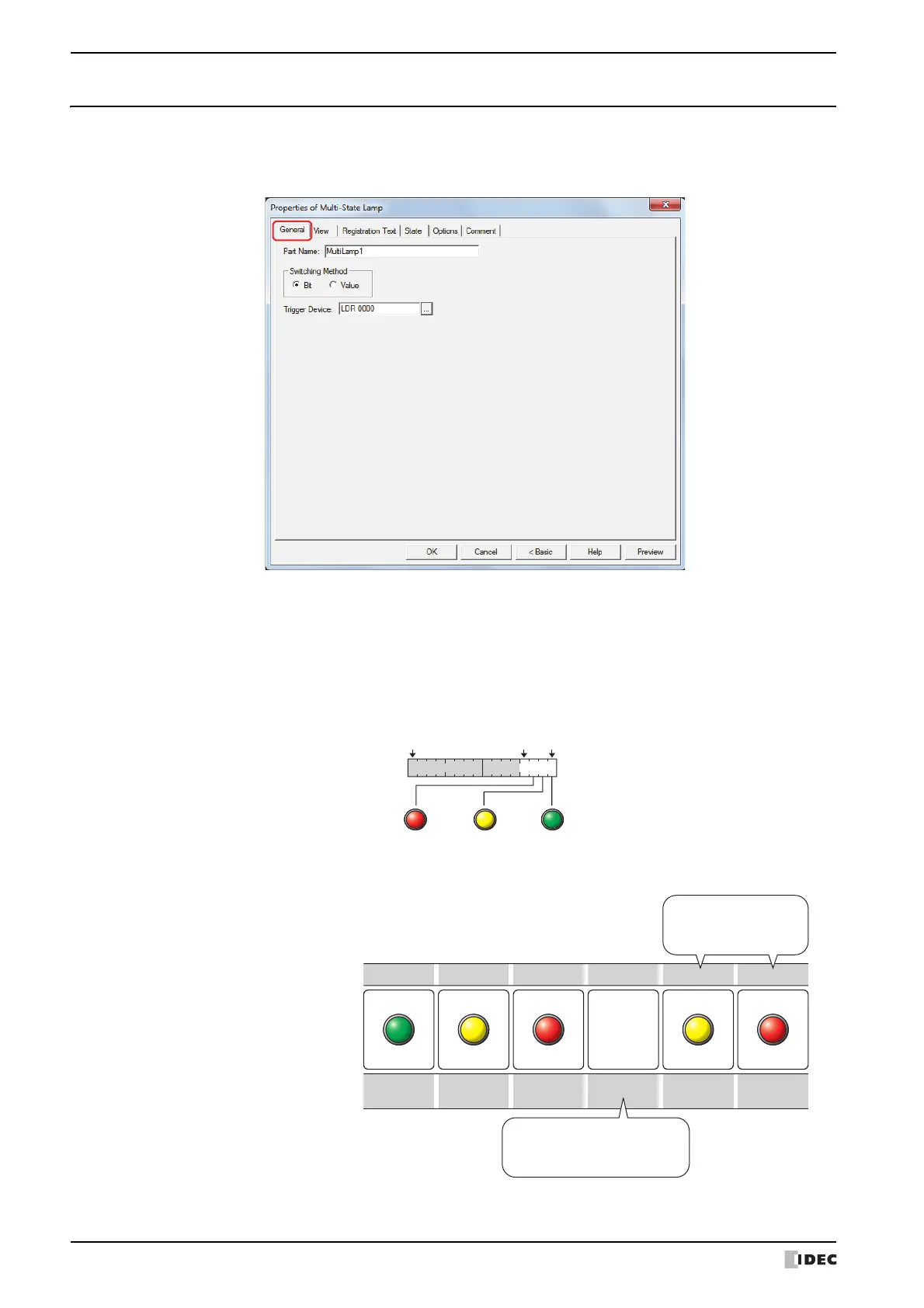

2.3 Properties of Multi-State Lamp Dialog Box
This section describes items and buttons on the properties dialog box.
●
General Tab
■ Part Name
Enter a name for the part. The maximum number is 20 characters.
■ Switching Method
Specify the method to switch drawing objects from the following:
Bit: Switches the drawing object displayed, according to the status of the bits.
Example: When Bit is selected and the bits of trigger device D0 are allocated to the following pictures.
Switches the picture to display according to the status of the bits.
bit15 bit0
bit3
Trigger device D0 value
State: 0 State: 1State: 2
Display picture
for bit 0
Display picture
for bit 1
Display picture
for bit 2
No picture
Display picture
for bit 1
Display picture
for bit 2
0001 0010 0100
1000
1110
1100
State:
0
State:
1
State:
1
State:
2
State:
2
Picture to display
Trigger device D0
bit state
Action
If multiple bits are 1, display
the picture for the lowest
order bit.
If all bits in the device are 0 or if a bit
with no associated picture becomes 1,
display nothing.
