IDEC SmartAXIS Touch FT1A Series User Manual

SmartAXIS Touch User’s Manual 8-17
2 Multi-State Lamps
8
Lamps
■ Trigger Device
Specifies the word device to use as the condition for switching the drawing object.
Click to display the Device Address Settings dialog box. For the device address configuration procedure, refer to
Chapter 2 “5.1 Device Address Settings” on page 2-62.
Value: Switches the drawing object displayed, according to the value of the device.

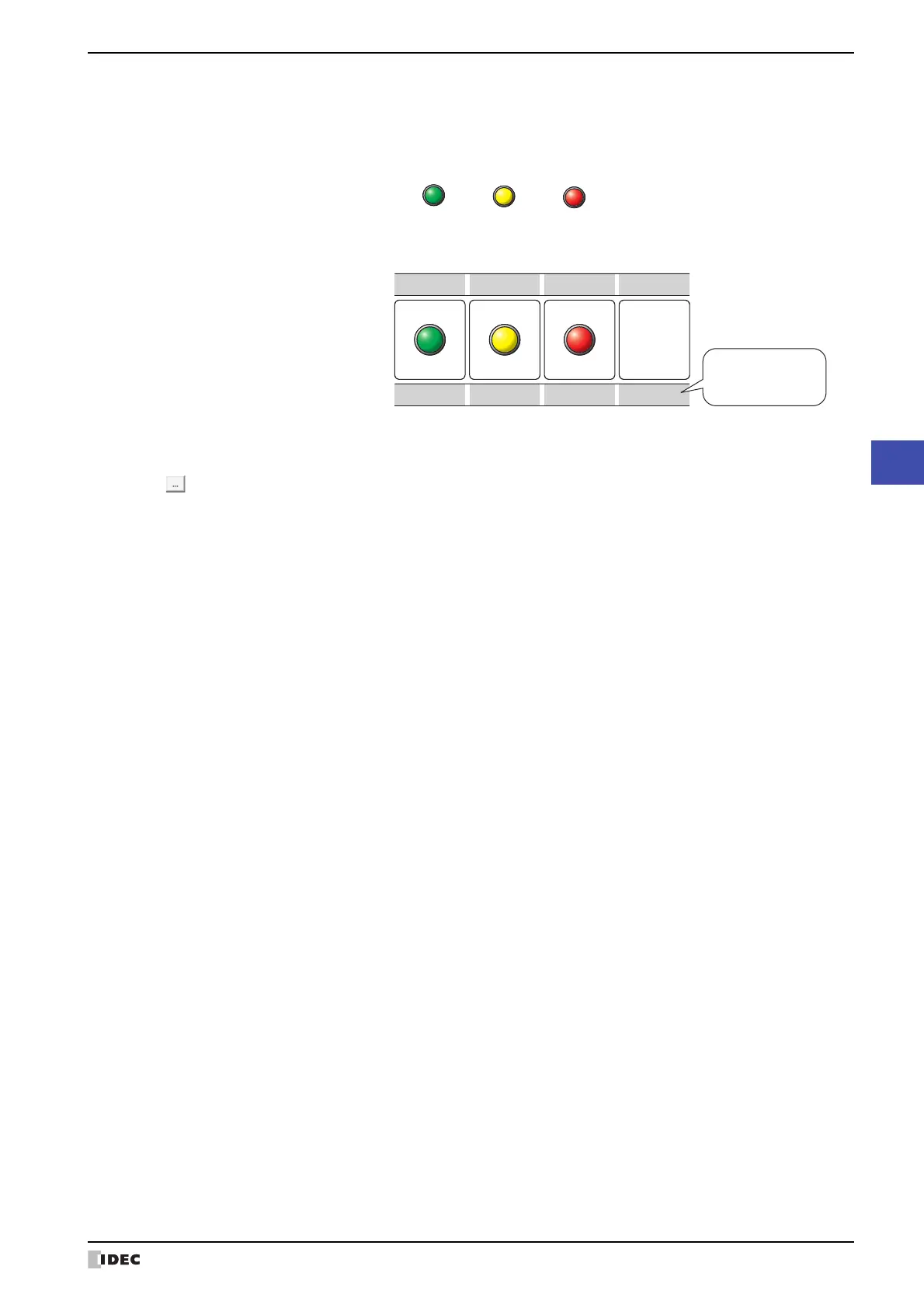

Example: When Value is selected and the values of Trigger Device D0 are allocated to the following
pictures.
Switches the picture to display according to the value of the device.
012
Trigger device D0 value
State: 2State: 1State: 0
Display picture for 0 Display picture for 1 Display picture for 2
No picture
0 1 2 3
State:
0
State:
1
State:
2
Picture to display
Trigger device D0 value
Action
If the value of device
has no picture associated
with it, display nothing.
