IDEC SmartAXIS Touch FT1A Series User Manual

SmartAXIS Touch User's Manual 29-33
2 Analog Cartridge
29
SmartAXIS Specifications
2.7

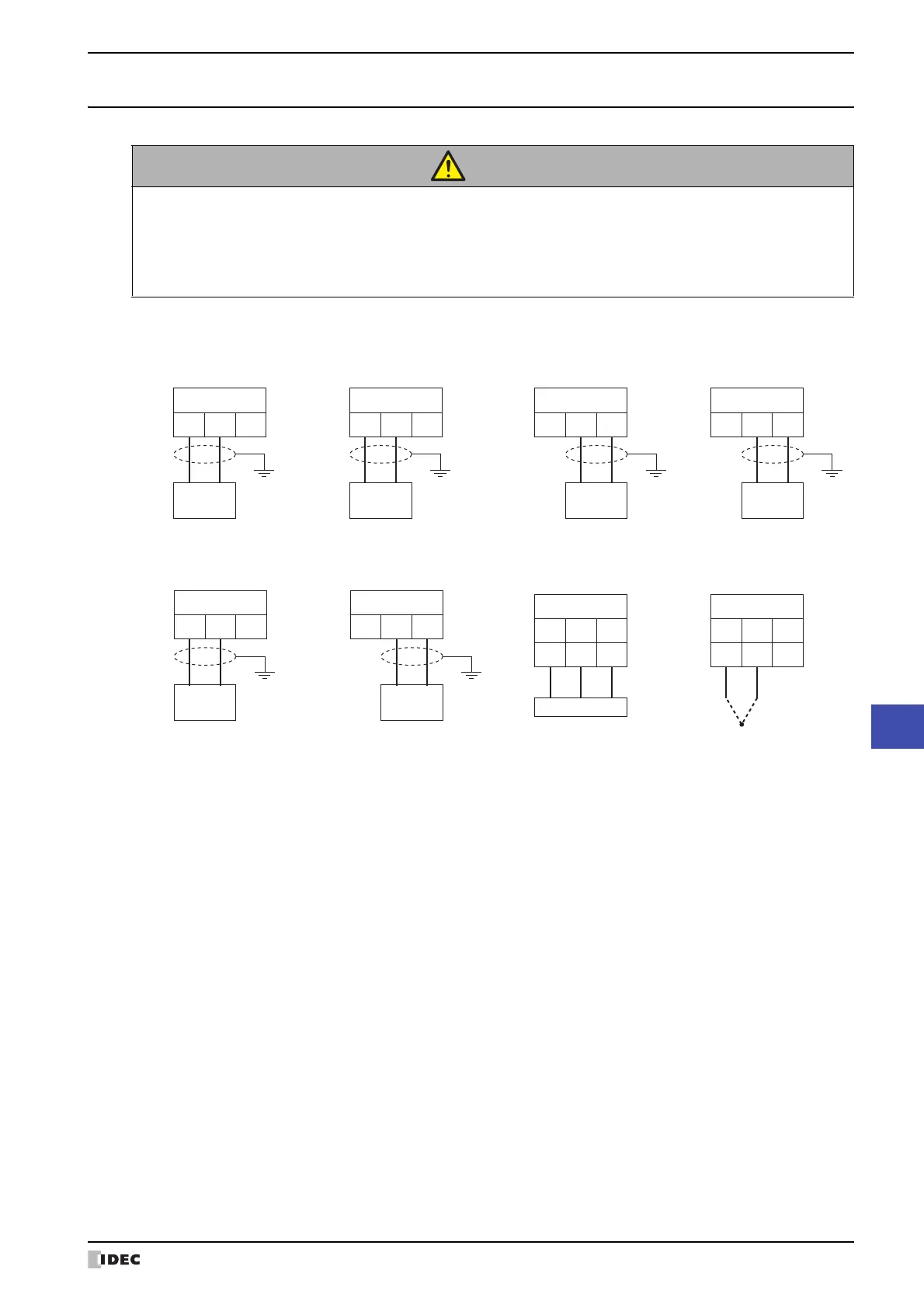

Wiring
● Terminal Arrangement
CAUTION
• Do not connect a thermocouple to a hazardous voltage component (60V DC or peak 42.4 V or higher
component).
• Always check the wiring before turning on the power. If the wiring is incorrect, the analog cartridge may be
damaged. When there is a risk of malfunction due to noise, use a shielded cable for the wiring and connect both
ends of the shield to the FG.
FC6A-PK2AV FC6A-PK2AW
FC6A-PJ2A FC6A-PJ2CP
Analog voltage input device
0...10 V
+-
OUT1
+-NC
Analog voltage input device
0...10 V
+-
OUT0
+-NC
Analog current input device
0...20 mA
4...20 mA
-+
OUT0
NC - +
Analog current input device
0...20 mA
4...20 mA
+-
OUT1
NC + -
Analog current output device
0...20 mA
4...20 mA
-+
IN1
+-+
Analog voltage output device
0...10 V
+-
IN0
+-+
ThermocoupleResistance thermometer
Pt / Ni
A
BB’
IN0
ABB’
+-NC
+
-
IN1
ABB’
+-NC
