1 Shapes
6-4 SmartAXIS Touch User’s Manual

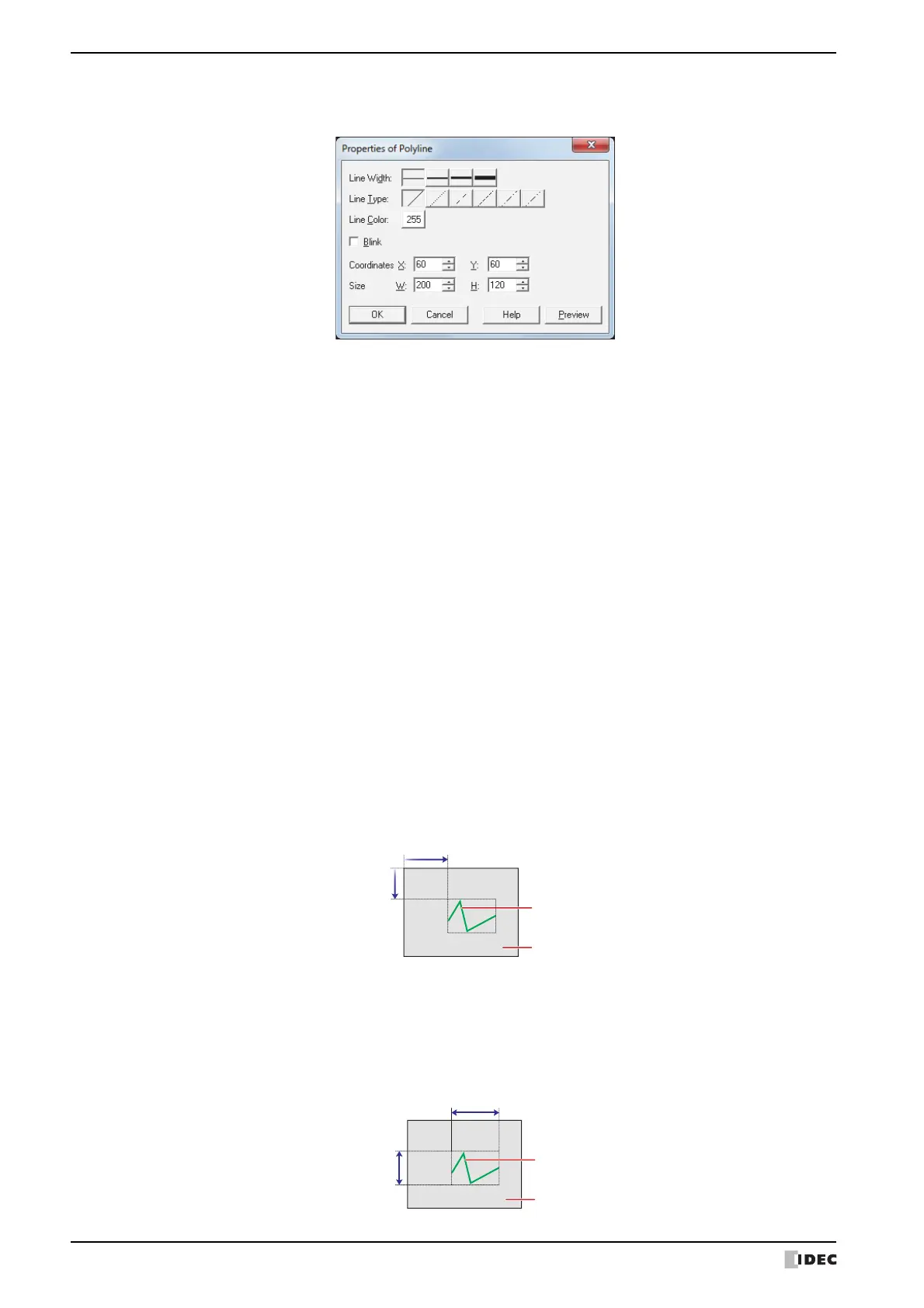

● Properties of Polyline Dialog Box
This section describes items and buttons in the Properties dialog box.
■ Line Width
Selects the line width for the polyline from the following.
1 dot, 2 dots, 3 dots, 5 dots
3 dots and 5 dots can only be configured when Solid is selected for Line Type.
■ Line Type
Selects the line type for the polyline from the following.
Solid, Dot, Dash, Long Dash, Long Dash Dot, Long Dash Dot Dot
Dot, Dash, Long Dash, Long Dash Dot, and Long Dash Dot Dot can only be configured when 1 dot or 2 dots
is selected for Line Width.
■ Line Color
Selects the line color for the polyline (color: 256 colors, monochrome: 8 shades).
Click this button to display the Color Palette. Select a color from the Color Palette.
■ Blink
Select this check box to make the polyline blink.
The blink interval is specified with Blinking Cycle on the System tab in the Project Settings dialog box.
■ Coordinates
■ Size
X, Y: Specifies the display position of the polyline in coordinates.
With the upper-left corner of the screen as the origin, the upper-left corner of the rectangle that
circumscribes the polyline is the X and Y coordinates.
X: 0 to (Base Screen horizontal size - 1)
Y: 0 to (Base Screen vertical size - 1)
(0, 0)
X
Y
Screen
Polyline
W, H: Specifies the size of the polyline in width and height.
W: 1 to (Base Screen horizontal size)
H: 1 to (Base Screen vertical size)
Width
Height
Screen
Polyline
