SmartAXIS Touch User's Manual 3-35
3 Project Settings Dialog Box
3
Project
● Communications Driver Network Settings Dialog Box
To communicate with an external device by using Ethernet communication, specify the Ethernet settings (IP address,
port number) for the destination external device. The settings other than IP Address and Port vary based on the
external device. For details, refer to the External Device Setup Manual.

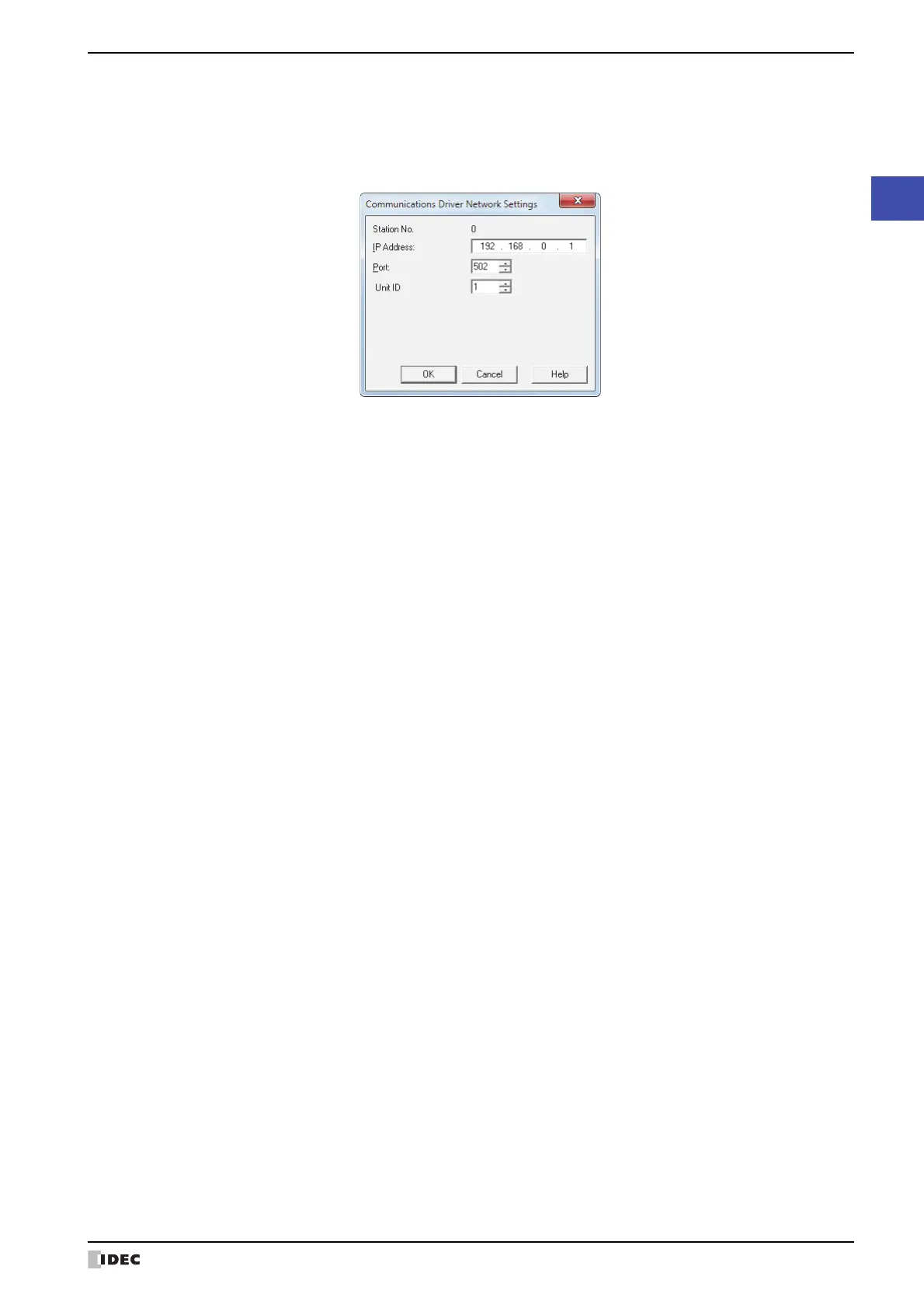

Example: MODBUS/TCP Client is selected for Communication Driver
■ IP Address
Specifies the IP address of the destination external device.
The format is “xxx.xxx.xxx.xxx”. “xxx” stands for a numeric value from 0 to 255.
When connecting multiple devices to the same network, make sure to assign each device a unique IP address.
■ Port
Specifies the port number (0 to 65,535) of the destination external device.
To Next Page
