1 Shapes
6
Drawings

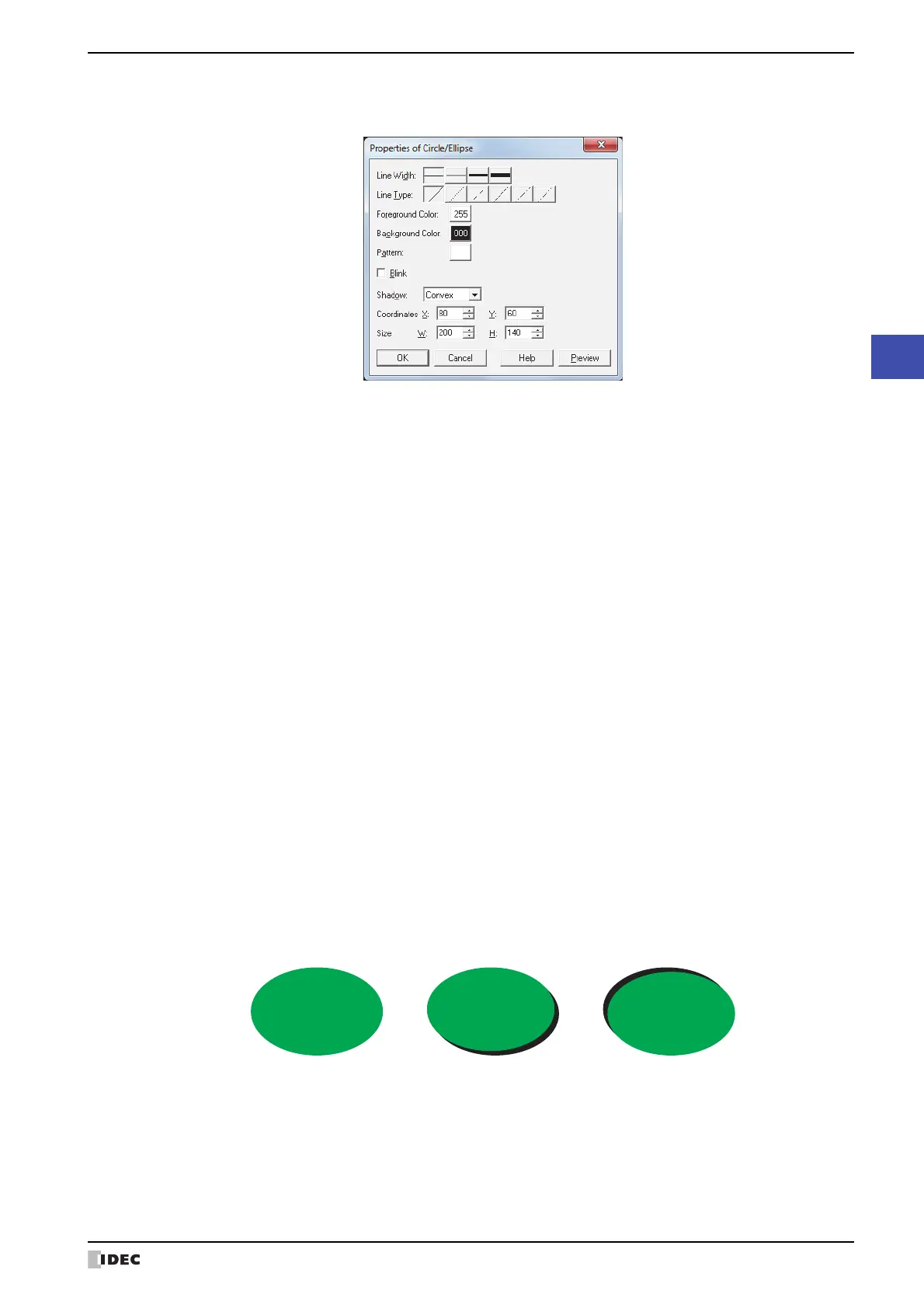

● Properties of Circle/Ellipse Dialog Box
This section describes items and buttons in the Properties dialog box.
■ Line Width
Selects the line width for the circle or ellipse from the following.
1 dot, 3 dots, 5 dots
3 dots and 5 dots can only be configured when Solid is selected for Line Type.
■ Line Type
Selects the line type for the circle or ellipse from the following.
Solid, Dot, Dash, Long Dash, Long Dash Dot, Long Dash Dot Dot
Dot, Dash, Long Dash, Long Dash Dot, and Long Dash Dot Dot can only be configured when 1 dot is selected
for Line Width.
■ Foreground Color, Background Color
Selects the foreground color and the background color to use for the circle or ellipse (color: 256 colors, monochrome:
8 shades).
Click either button to display the Color Palette. Select a color from the Color Palette.
■ Pattern
Selects the pattern for the circle or ellipse.
Click this button to display the Pattern Palette. Select a pattern from the Pattern Palette.
■ Blink
Select this check box to make the circle or ellipse blink.
The blink interval is specified with Blinking Cycle on the System tab in the Project Settings dialog box.
■ Shadow
Selects the style of shadow attached to the circle or ellipse from the following. This option draws the circle or ellipse
in a three-dimensional manner.
None, Convex, Concave
This option can only be configured when 1 dot is selected for Line Width and Solid is selected for Line Type.
Convex ConcaveConvex
