1 Shapes
6-14 SmartAXIS Touch User’s Manual

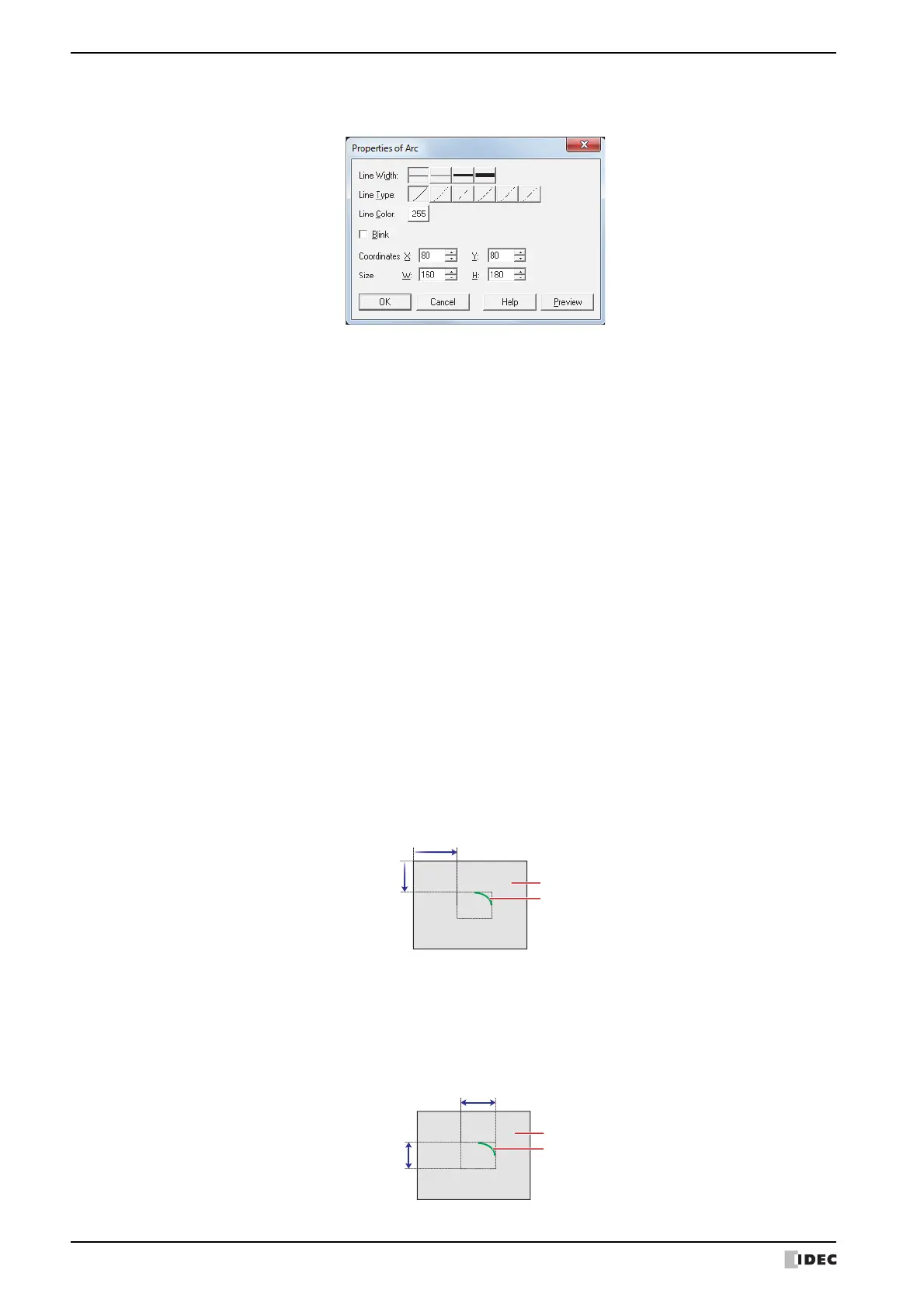

● Properties of Arc Dialog Box
This section describes items and buttons in the Properties dialog box.
■ Line Width
Selects the line width for the arc from the following.
1 dot, 3 dots, 5 dots
3 dots and 5 dots can only be configured when Solid is selected for Line Type.
■ Line Type
Selects the line type for the arc from the following.
Solid, Dot, Dash, Long Dash, Long Dash Dot, Long Dash Dot Dot
Dot, Dash, Long Dash, Long Dash Dot, and Long Dash Dot Dot can only be configured when 1 dot is selected
for Line Width.
■ Line Color
Selects the line color for the arc (color: 256 colors, monochrome: 8 shades).
Click this button to display the Color Palette. Select a color from the Color Palette.
■ Blink
Select this check box to make the arc blink.
The blink interval is specified with Blinking Cycle on the System tab in the Project Settings dialog box.
■ Coordinates
■ Size
X, Y: Specifies the display position of the arc in coordinates.
With the upper-left corner of the screen as the origin, the upper-left corner of the rectangle that
circumscribes the arc is the X and Y coordinates.
X: 0 to (Base Screen horizontal size - 1)
Y: 0 to (Base Screen vertical size - 1)
(0, 0)
X
Y
Screen
Arc
W, H: Specifies the size of the arc in width and height.
W: 3 to (Base Screen horizontal size)
H: 3 to (Base Screen vertical size)
Width
Height
Screen
Arc
