IDEC SmartAXIS Touch FT1A Series User Manual

3 Picture Display
9-44 SmartAXIS Touch User’s Manual
■ Blink
Select this check box to flash the displayed pictures.
■ Dynamic Position
*1
Select this check box to move and display the picture by specifying the coordinates of the picture as values of devices.
Example: When the X-coordinate is D100 and the Y-coordinate is D101
The picture is moved to the values of D100 and D101.
*1 Advanced mode only

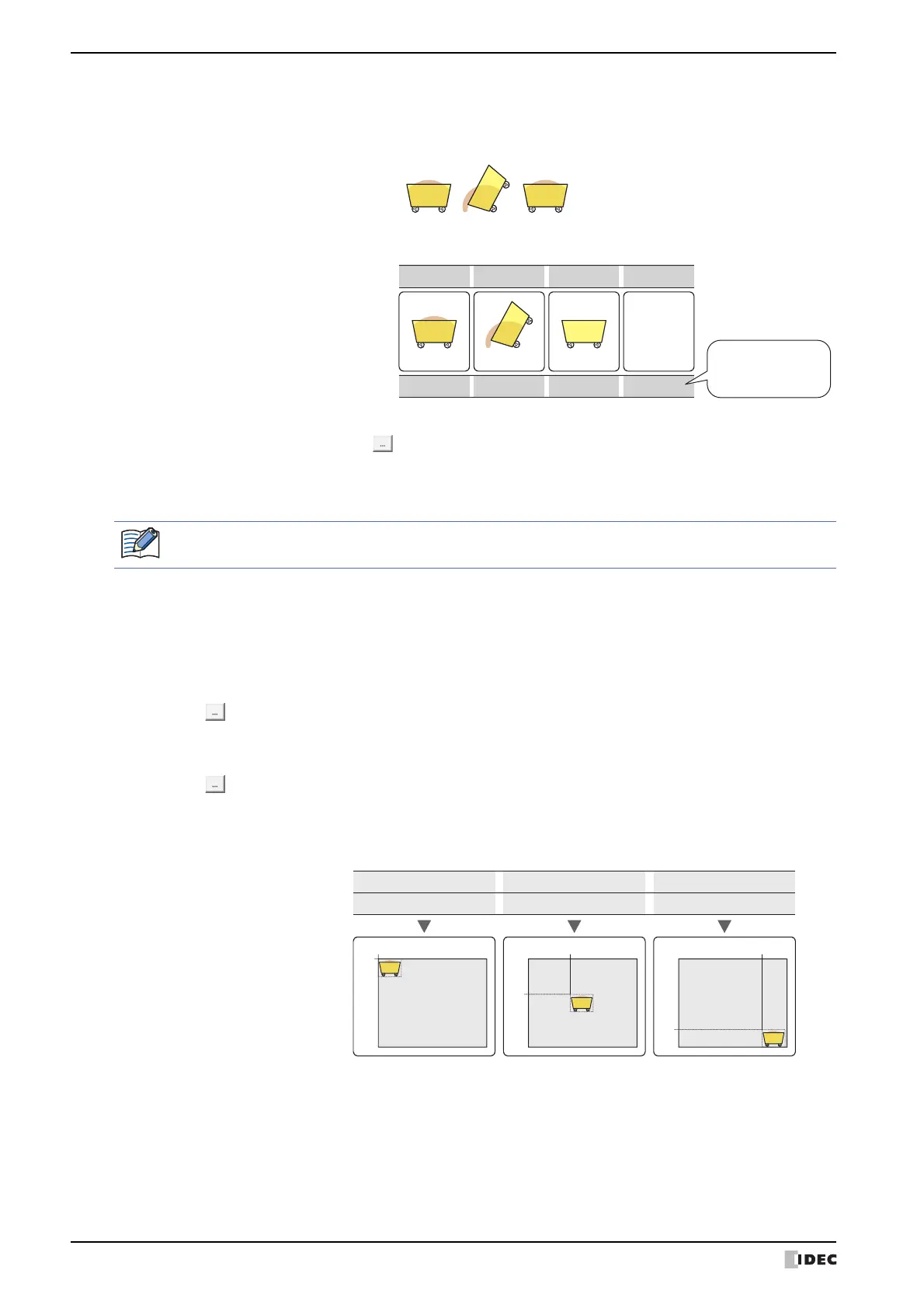

Value: Switches the picture to display according to the value of device.
Example: When Value is selected and the values of Trigger Device D0 are allocated to the
following pictures.
Switches the picture to display according to the value of device.
Trigger Device: Specifies the word device to use as the condition for switching pictures.
Click to display the Device Address Settings dialog box. For the device
address configuration procedure, refer to Chapter 2 “5.1 Device Address
Settings” on page 2-62.
This option can only be configured when Bit or Value is selected.
01 2
Trigger device D0 value
Pic2Pic1Pic0
Pic 1Pic 0 Pic 2
0
Picture to display
Trigger device D0 value
1 2 3
Display picture for 0
Action
Display picture for 1 Display picture for 2
No picture
If the value of device has
no picture associated
with it, display nothing.
When the size of pictures to switch differs and the Dynamic Size check box is cleared, all the pictures are
displayed with the same size as Pic0.
X Point: Specifies the word device that is the X-coordinate of the picture.
Click to display the Device Address Settings dialog box. For the device address configuration procedure,
refer to Chapter 2 “5.1 Device Address Settings” on page 2-62.
Y Point: Specifies the word device that is the Y-coordinate of the picture.
Click to display the Device Address Settings dialog box. For the device address configuration procedure,
refer to Chapter 2 “5.1 Device Address Settings” on page 2-62.
0
0
108
45
216
90
Position of picture to display
Value of Y-coordinate device
D101
Value of X-coordinate device
D100
0
0
108
45
216
90
