1 Communicating with the Touch
23
Online Function
■ Set Slave No.
The slave station number of the Touch to which you are downloading is changed after project data is downloaded.
Specifies the new slave station number (1 to 15) applied to the Touch after downloading a project data.
■ Master IP Address
Specifies the IP address of the O/I Link Master that is used to communicate between the O/I Link Slave and the
external device.
Click to display IP Address Manager. Specify the IP address for the O/I Link Master with IP Address Manager.
This option can only be displayed when O/I Link Slave is selected for Communicate with and Ethernet is
selected for Port in the Communication Settings dialog box.
To execute any function except project data download

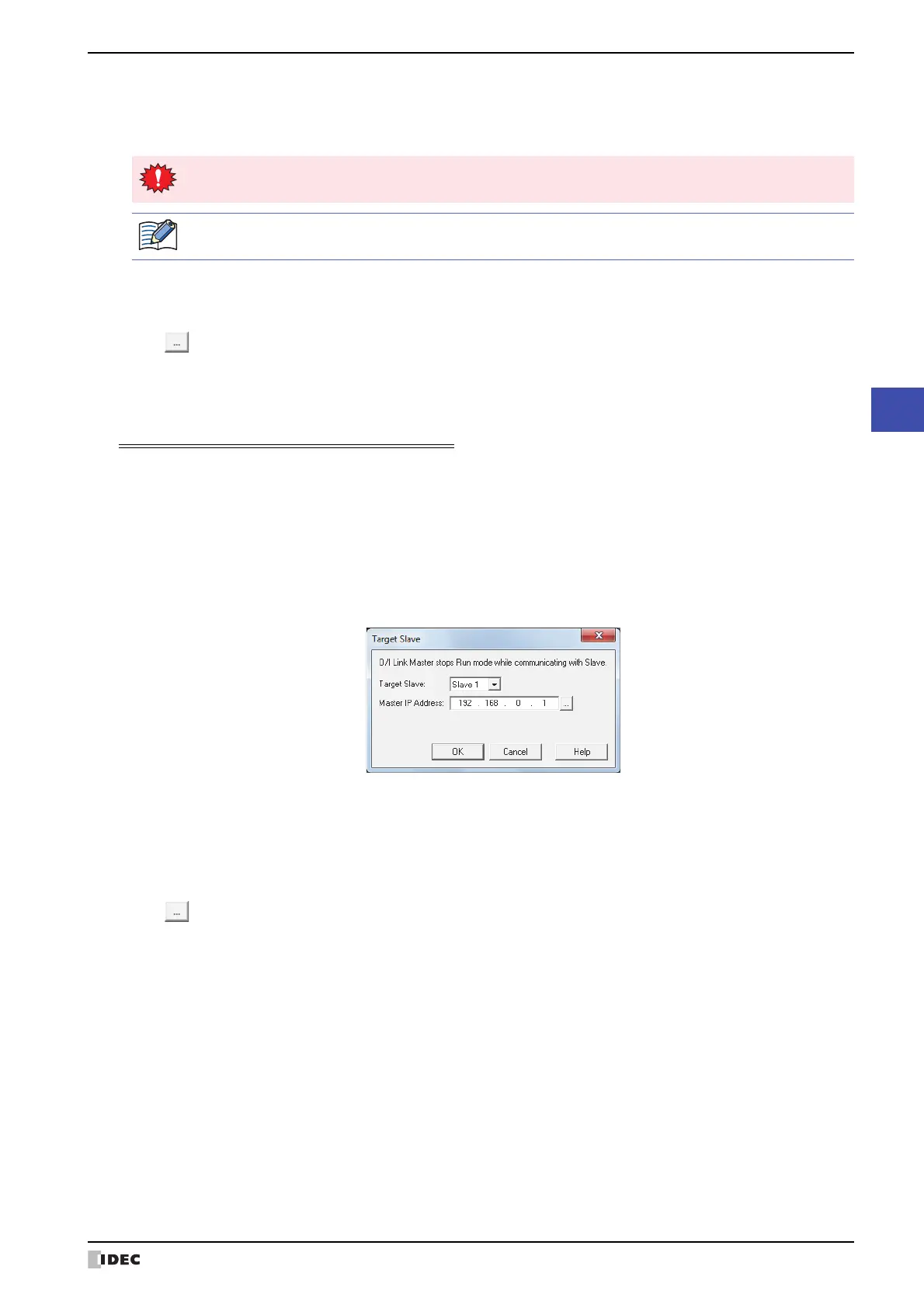

The Target Slave dialog box will be displayed when any of the following functions are executed.
• Upload project data.
• Upload data from an external memory inserted in the Touch.
• Delete data stored in the internal memory of the Touch.
• Delete data from or format an external memory inserted in the Touch.
• Display information about runtime system and project data.
• Monitor the Touch.
Specifies the O/I Link Slave.
■ Target Slave
Select the slave station number (Slave 1 to Slave 15) that will be the subject of the operation.
■ Master IP Address
Specify the IP address of the O/I Link Master that is used to communicate between the O/I Link Slave and the
external device.
Click to display IP Address Manager. Specify the IP address for the O/I Link Master with IP Address Manager.
This option can only be displayed when O/I Link Slave is selected for Communicate with and Ethernet is
selected for Port in the Communication Settings dialog box.
If the slave station number of the Touch is duplicated after downloading, communication is not possible.
Even if the slave station number of the Touch configured in the Target IP Address dialog box when
downloading a project is rewritten, project data remains unchanged during editing.
