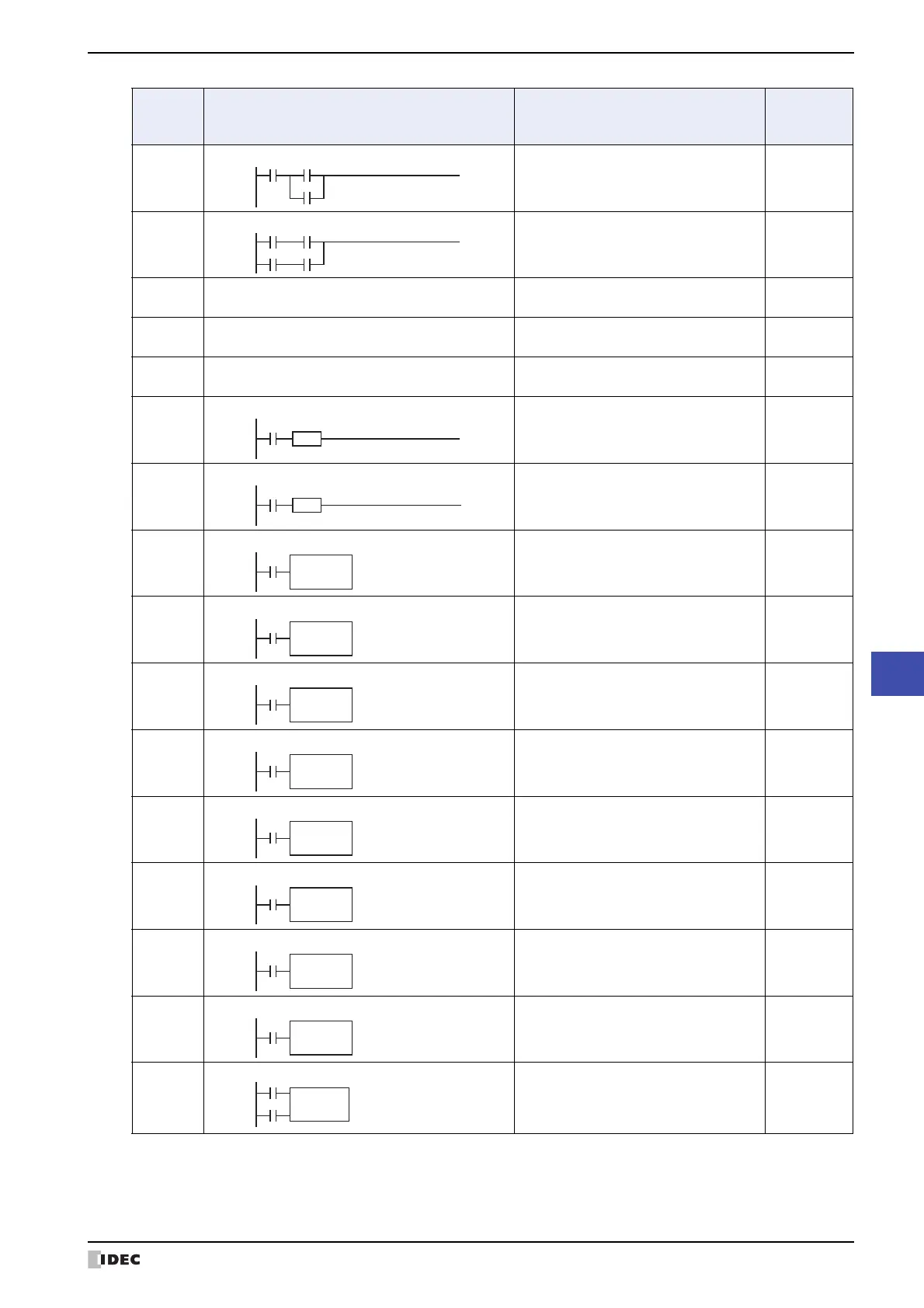

SmartAXIS Touch User's Manual 12-15
2 Ladder Program
12
Control Function
AND·LOD
And Load
Series connection of circuit blocks YES
OR·LOD
Or Load
Parallel connection of circuit blocks YES
BPS Bit Push
Saves the result of bit logical operation
temporarily
YES
BRD Bit Read
Reads the result of bit logical operation
which was saved temporarily
YES
BPP Bit Pop
Restores the result of bit logical
operation which was saved temporarily
YES
SOTU
Single Output Up
Falling-edge differentiation output NO
SOTD
Single Output Down
Rising-edge differentiation output NO
TML
1-sec Timer
1 sec On Delay timer NO
TIM
100-ms Timer
100 msec ON Delay timer NO
TMH
10-ms Timer
10 msec ON Delay timer NO
TMS
1-ms Timer
1 msec ON Delay timer NO
TMLO
1-sec Off-delay Timer
1 sec OFF Delay timer NO
TIMO
100-ms Off-delay Timer
100 msec OFF Delay timer NO
TMHO
10-ms Off-delay Timer
10 msec OFF Delay timer NO
TMSO
1-ms Off-delay Timer
1 msec OFF Delay timer NO
CNT
Counter
Adding counter NO
Symbol Name and Diagram Function
Interrupt
Program
Execution
