EXi: MOD-7 Waveshaping VPM Synthesizer
310
EXi PROGRAM > MOD-7: Home
0–1: Overview
This is the main page of PROGRAM mode. For a full
description of this page and all of its functions, please see
“EXi PROGRAM > Home” on page 127. This section
describes only the overview display, which differs for each
individual EXi.

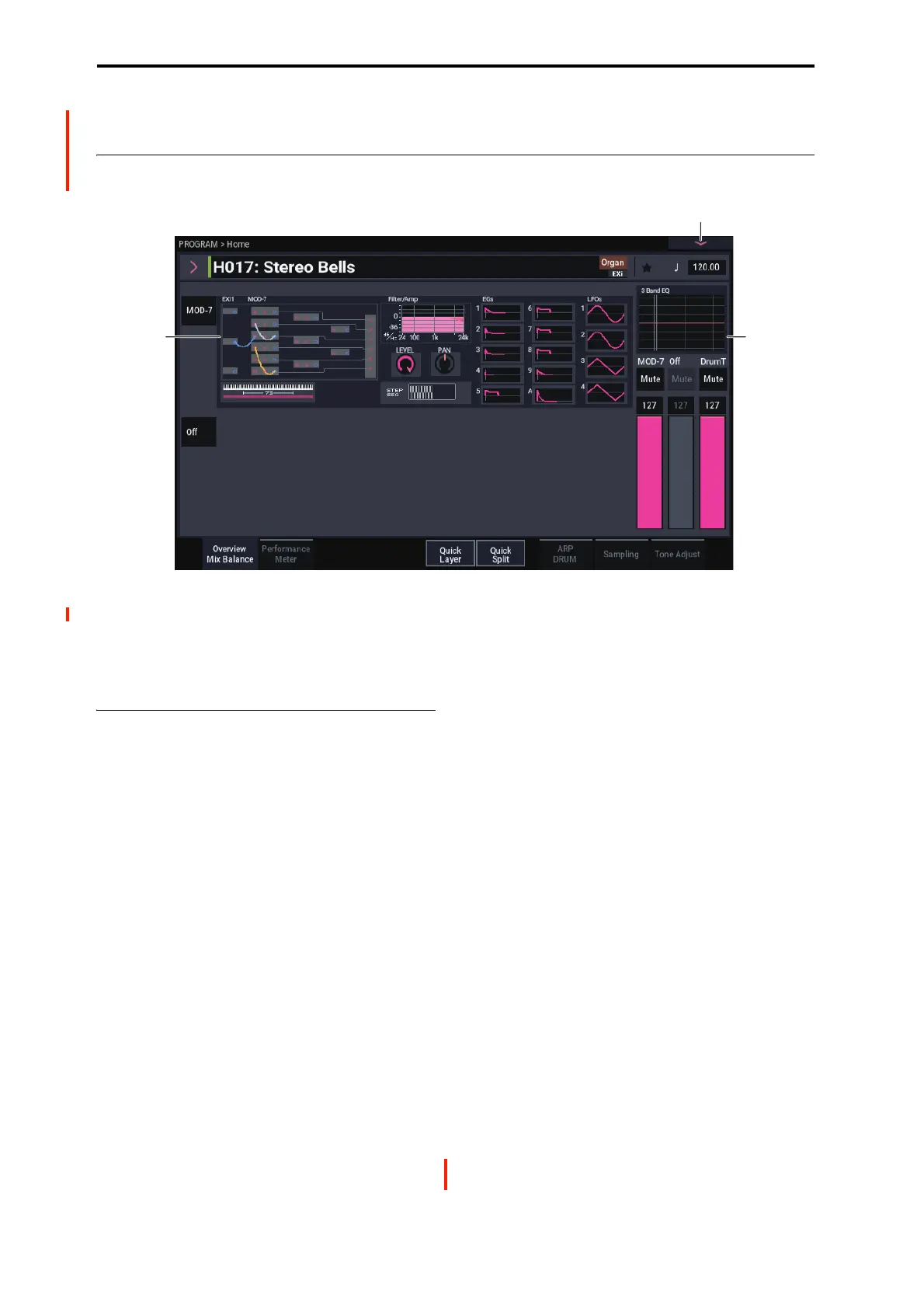

0–1b: Overview and Page Jump
This part of the page shows an overview of the most
important settings for the Program’s two EXi instruments.
The specific parameters will vary, depending on which EXi
are being used. The specific parameters for the MOD-7 are
described below.
The graphics give you a quick way to check all of these
settings at a glance. They also let you jump instantly to any
of the displayed parameters. Just touch one of the sections,
and you’ll jump to the page containing its parameters. For
instance, if you touch the Filter graphic, you’ll go to the
Oscillator and Filter page.
Tip: Pressing EXIT several times will always bring you back
to this page.
Patch Panel
This section shows a miniature version of the patch panel,
including patch cables and the selected algorithm’s
normalled connections. Touch this area to jump directly to
the Patch Panel page.
Filter
Filter
This shows a graphic representation of the filter frequency
response, including cutoff and resonance.
Press this area to jump to the Filter Basic page.
Amp
Pan, Amp Level
This shows the Amp section’s Pan and Amp Level values.
Press this area to jump to the Amp page.
EGs, LFOs, and Step Sequencer
EG Graphics
These show the shapes of all 10 EGs, including EGs 1-9 and
the Amp EG. Touch either of them to jump directly to the
corresponding edit page.
LFO 1-4 Graphics
These show the waveforms and shapes of the four LFOs.
Touch them to jump directly to the corresponding edit page.
If the LFO is synchronized to tempo, a small “M” appears
under the LFO number (short for “MIDI Clock”).
Step Sequencer Graphic
This shows a graphic overview of the per-voice Step
Sequencer.
Press this area to jump to the Step Sequencer page.
Key Zone
Key Zone
This shows the key zones for EXi1 and EXi2, as set on the
Common section’s Program Basic page, in relation to the
entire MIDI note range. The range of the 61-, 73-, or 88-note
keyboard is also shown, as appropriate.
Press this area to jump to the PROGRAM > Basic/X-
Y/Controllers– Basic page.
