COMBINATION > MIDI Filter/Zones 3–5: Keyboard Zones
417
3–5: Keyboard Zones
These settings specify the keyboard range in which each
timbre will sound.
The top/bottom key parameters specify the range of notes in
which timbres 1–16 will sound, and the top/bottom slope
parameters specify the range over which the original volume
will be reached.
Key Split: By setting timbres of different sounds to ranges
that do not overlap, you can play different sounds in
different ranges of the keyboard.
Layer: By setting the ranges to overlap, you can play two or
more sounds with a single note.
Positional Cross-fade: If you set the slopes (the grayed
portion) to overlap, the sounds will overlap, and the
proportion of the overlap will change according to the
keyboard location.

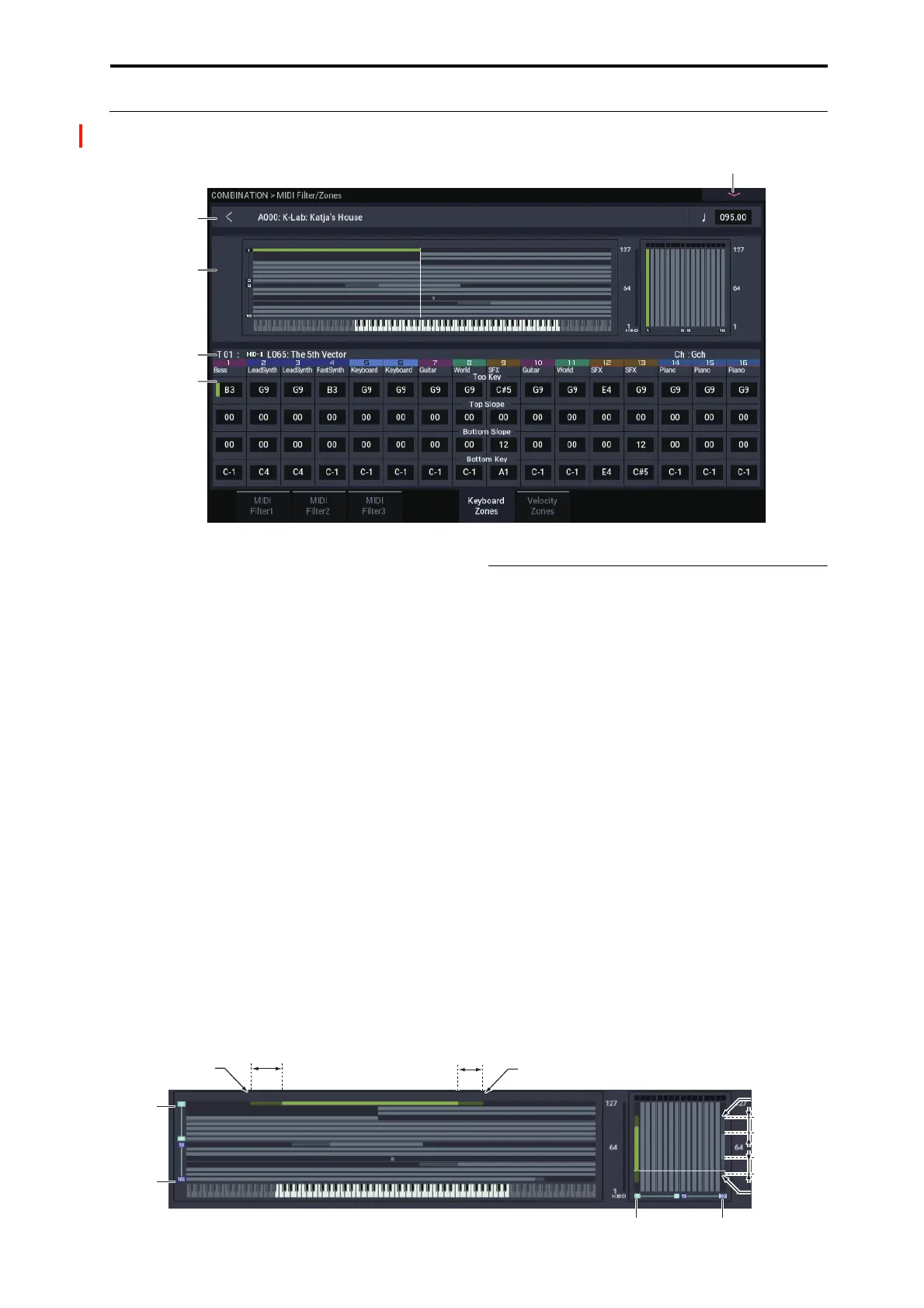

3–5a: Zone Map
This area provides a graphic display of the note and velocity
ranges in which each MIDI Track will sound. The slope
portions of the zones are displayed in a different color.
Under the Key Zone graphic, a keyboard graphic shows the
most recently-played note in green, aligned with the
keyboard zones.
To the left of the Velocity Zone graphic, a meter shows the
velocity of the most recently-played note; red dots above the
graphic show the Zone(s) triggered by that velocity.
3–5PMC
3–5a
3–5a
1–1a
1–1b
Timbre 1
Timbre 16
C–1 G9E1
Key zone display
1 16
Timbre
Velocity zone display
Bottom Key
Bottom Slope Top Slope
Top Key
Top Velocity
Bottom Velocity
Top Slope
Bottom Slope
To Next Page
