Mixer

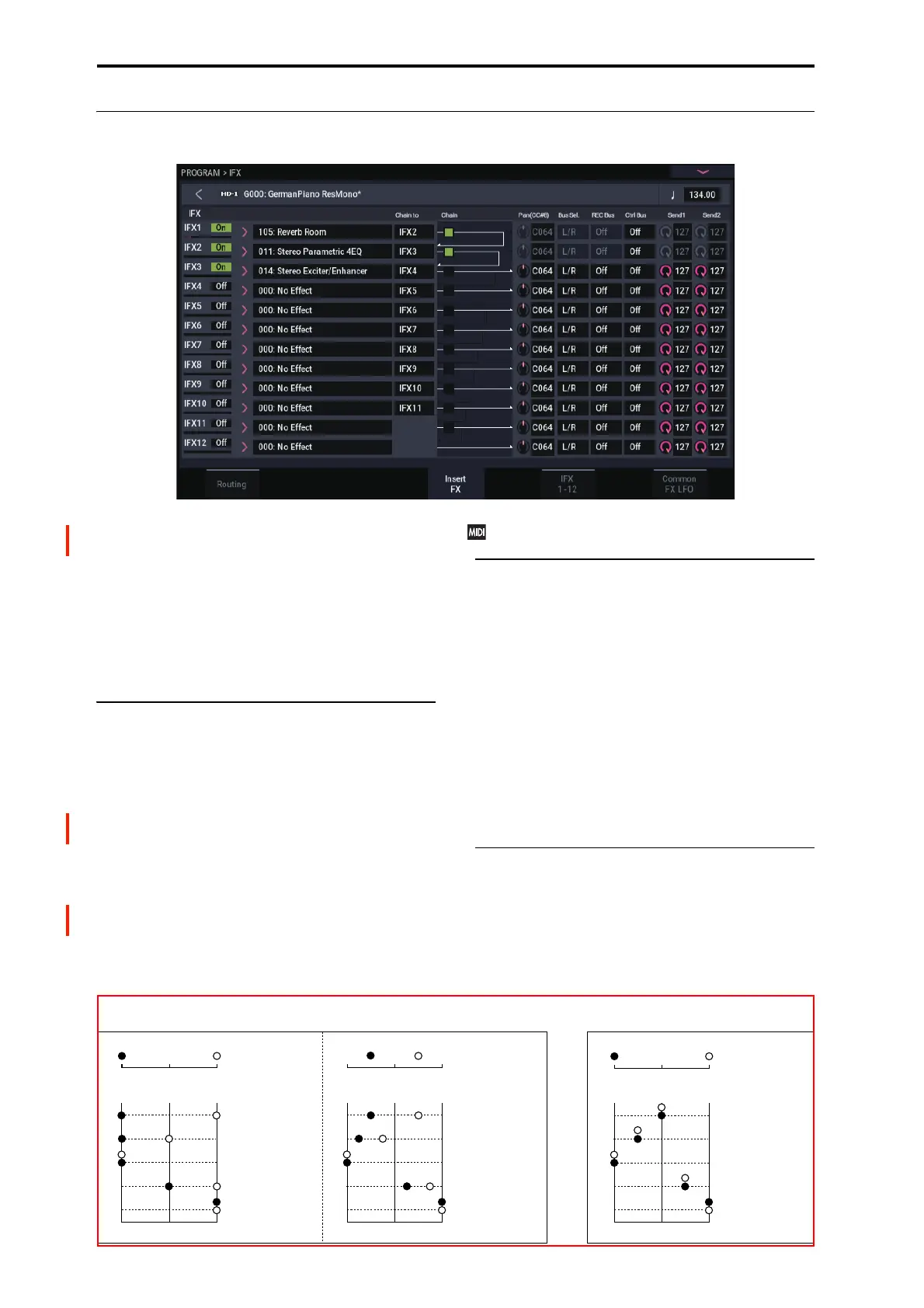

In PROGRAM, COMBINATION, and SEQUENCER
modes, the IFX– Insert FX page lets you set “Pan (CC#8)”
(post-IFX panning), “Bus Sel. (Bus Select),” “Ctrl Bus” (FX
control bus), REC Bus, and Send1 and Send2 levels to the
master effects.
If you have checked the Chain to connect the Insert Effects
in series, these parameters “Pan (CC#8)” –Send2 for the
post-IFX (last Insert Effect in the chain) signal become
effective.
Pan (CC#8)
This parameter enables you to set the pan of the post-IFX
signal.
If you are using the stereo-in/stereo-out Insert Effects, set
this parameter to “C064” to enable the Pan settings for the
oscillators (PROGRAM 4–1c, 4–5), timbres
(COMBINATION 0–1b), tracks, and audio inputs.
If you are using mono-in/stereo–out or mono-in/mono–out
Insert Effects, the Pan settings for the oscillators, timbres,
tracks and audio inputs are ignored, and they are set to
Center. Use the “Pan (CC#8)” parameter (IFX– Insert FX
page page) to set the pan. “L000” is hard left, and “R127” is
hard right.
For more about effect types such as stereo-in/stereo-out, see
“In/Out” on page 737.
You can control these parameters via CC#8.
Bus Sel. (Bus Select)
This parameter enables you to specify the destination bus for
the post-IFX signals.
“L/R” is a common setting to send signals to the Total
Effects (TFX1, TFX2) before they are routed to the
OUTPUT (MAIN) L/MONO and R outputs.
Select 1…4 or 1/2…3/4 to route the signals to one of the
Individual Outputs. If this is set to 1–4, the output will be
monaural. If set to 1/2–3/4, the post-IFX pan settings will be
valid, and the output will be stereo. If set to Off, the signal
will not be sent to the L/R bus or buses 1–4. Choose this
setting if you want to use the Send1 or Send2 levels to route
the signal through a master effect in series (i.e., not as a send
effect).
Ctrl Bus (FX Control Bus)
This specifies the FX Control bus that follows the insert
effect. The FX Control buses (FX Control 1, 2) are stereo
two-channel buses.
The NAUTILUS provides two (stereo two-channel) effect
control buses, giving you a wide range of ways to control
effects.
OSC1: Amp1 Pan=L001
OSC2: Amp2 Pan=R127
Left
Center
Right
Post IFX Pan(CC#8)
C064
Left
Center
Right
L032
L001
R096
R127
Insert Effect = Stereo In - Stereo Out
Left
Center
Right
Left
Center
Right
OSC1
OSC2
OSC1: Amp1 Pan=L032
OSC2: Amp2 Pan=R096
Post IFX Pan(CC#8)
C064
L032
L001
R096
R127
OSC1: Amp1 Pan=L001
OSC2: Amp2 Pan=R127
Left
Center
Right
Post IFX Pan(CC#8)
C064
Left
Center
Right
L032
L001
R096
R127
Insert Effect = Mono In - Stereo Out
OSC1
OSC2
Mono In - Mono Out
