COMBINATION > IFX 8–5: Insert FX
425
v
8–2: Page Menu Commands
• Compare →p.112
• Write Combination →p.433
• Exclusive Solo →p.113
• Copy Insert Effect →p.122
• Swap Insert Effect →p.122
• Drum Kit IFX Patch →p.437
•PAGE →p.126
•MODE →p.126
8–5: Insert FX
8–5a: IFX

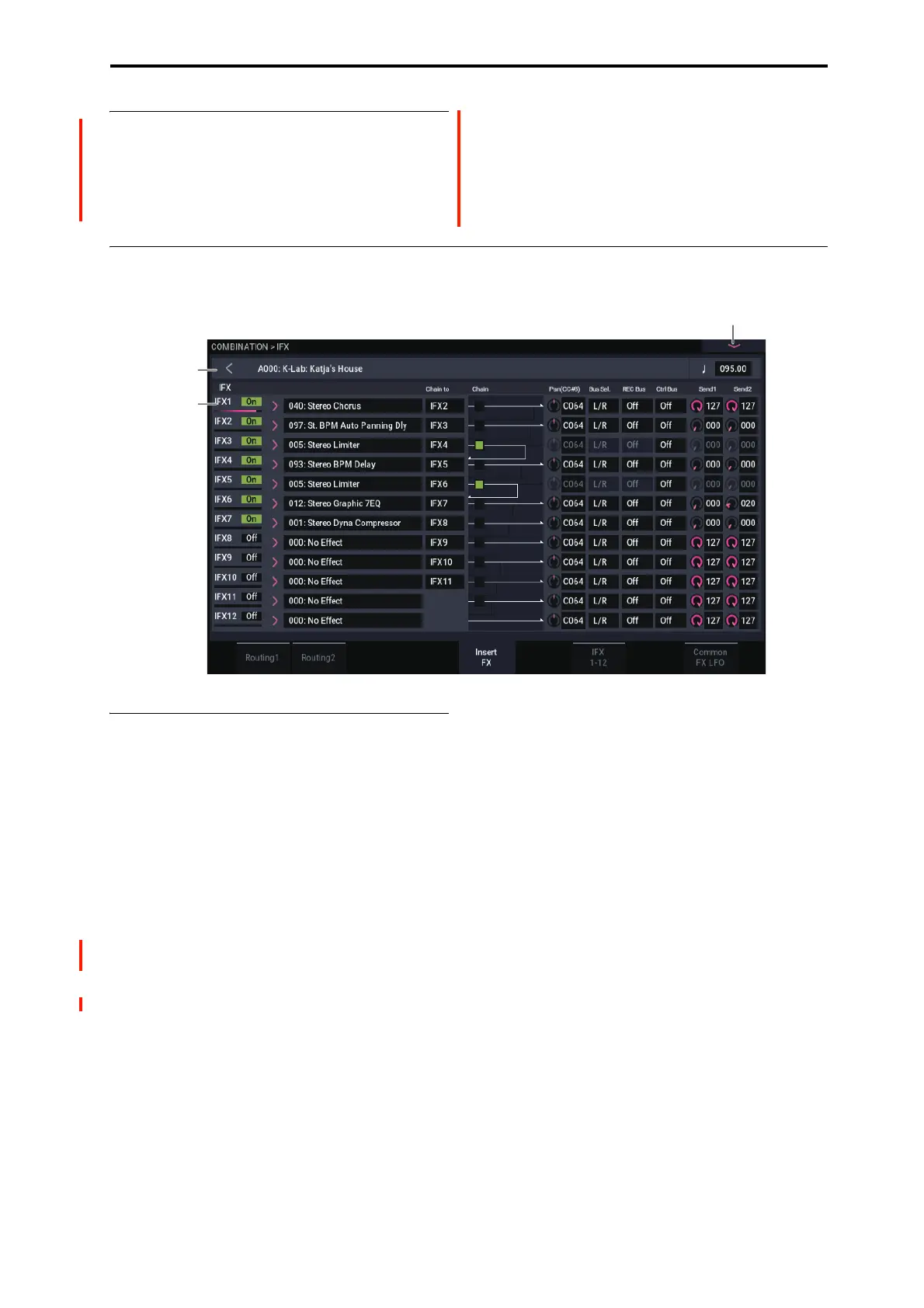

Here you can choose the type of each insert effect 1 through
12, its on/off status, chaining, and adjust the post-IFX mixer
settings. Meters below the IFX labels display the effect
output levels in realtime, showing the combined peak signals
of the left and right channels.
For insert effects, the direct sound (Dry) is always stereo-in
and out. The input/output configuration of the effect sound
(Wet) depends on the effect type.
For detailed explanations of the individual effects, please see
the “Effect Guide” on page 729.
The following parameters are the same as in PROGRAM
mode. For more information, please see “8–5a: IFX” on
page 101.
However, unlike in PROGRAM mode, you can use a
different MIDI channel to modulate each effect, if desired.
This includes the post-IFX Pan (CC#8), Send1, and Send2
settings, as well as the effect’s dynamic modulation (Dmod).
To set the MIDI channel, use the Ch parameter on the IFX 1-
12 page (8–7a).
IFX1
For detailed information on these parameters, see “8–5a:
IFX” on page 101.
IFX1 [000…197]
IFX1 On/Off [Off, On]
Chain to [IFX2…IFX12]
Chain [Off, On]
Pan(CC#8) (Post IFX Pan) [L000…C064…R127]
Bus Sel. (Bus Select) [L/R, 1…4, 1/2…3/4, Off]
Ctrl Bus (FX Control Bus) [Off, 1, 2]
REC Bus [Off, 1…4, 1/2, 3/4]
Send1 [000…127]
Send2 [000…127]
IFX2…12
These parameters specify the type of each insert effect, its
on/off status, chaining, and post-IFX mixer settings. With
the exception of Chain to and Chain, the parameters are the
same as for IFX1. For more information, please see “IFX1”
on page 101.
