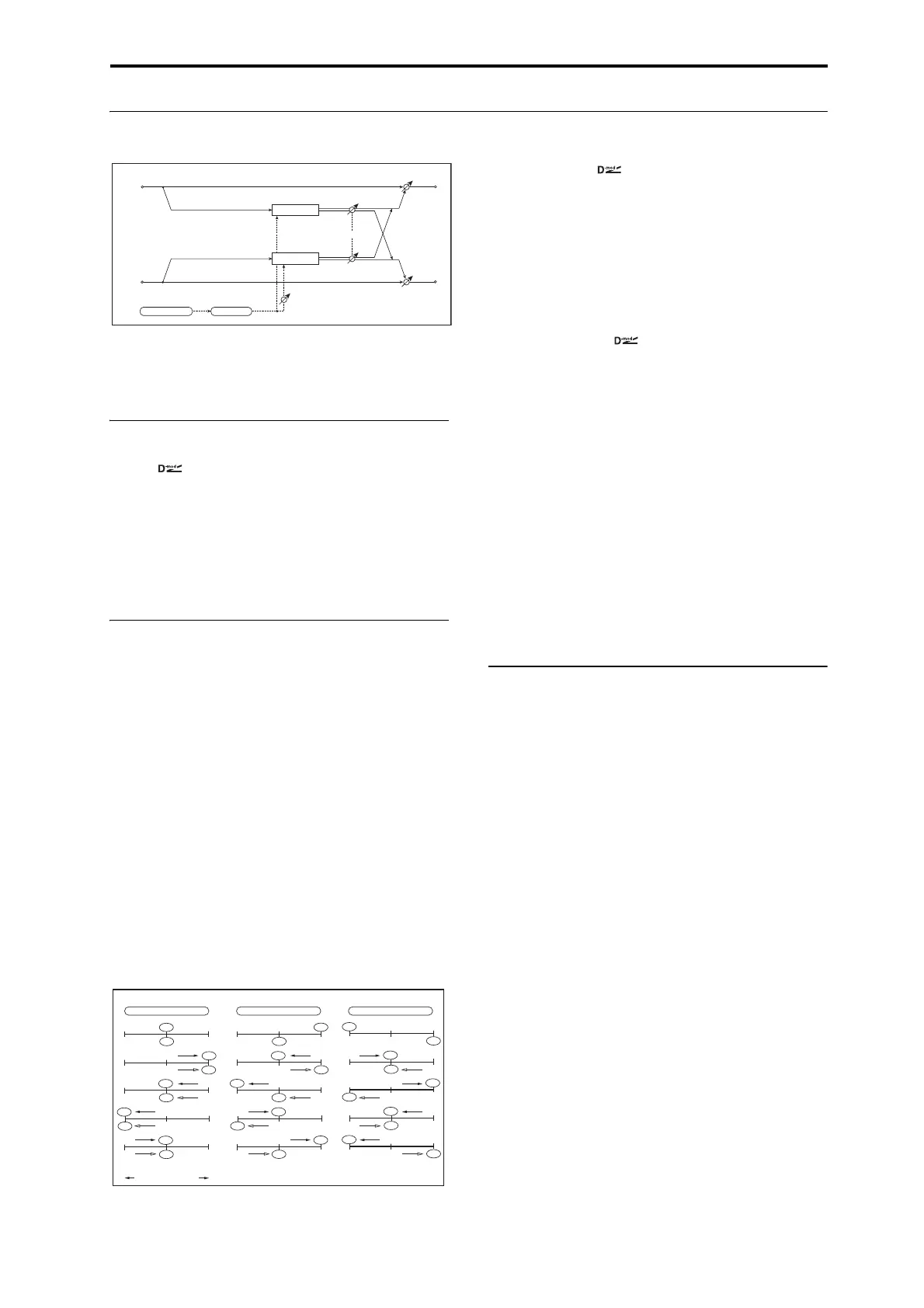

Modulation and Pitch Shift 063: Stereo Auto Pan
819
063: Stereo Auto Pan
This is a stereo-in, stereo-out auto-panner. The Phase and
Shape parameters lets you create various panning effects,
such as making the left and right inputs seem to chase each
other around the stereo field.
AUTO PAN
Depth [0…100]
Sets the depth of LFO modulation.
Source [Off…Tempo]
Selects the modulation source of the depth of modulation.
Amount [+/–100]
Sets the modulation amount of the depth of modulation.
LFO
Waveform [Triangle, Sine]
Selects the LFO Waveform.
Shape [+/–100]
This changes the curvature of the LFO Waveform, which
controls the way that the audio moves around the stereo
field.
Phase [degrees] [–180…+180]
This determines the phase difference between the left and
right LFOs. When you gradually change the value away
from 0, the sounds from the left and right channels will seem
to chase each other around. If you set the parameter to +180
or –180, the sounds from each channel will cross over each
other.
You’ll only hear the effect of this parameter if the input is
true stereo, with different signals in the left and right
channels.
Frequency [Hz] [0.02…20.00]
This sets the LFO speed, in Hz. It applies only when
MIDI/Tempo Sync, below, is Off.
Source [Off…Tempo]
This selects a modulation source for the Frequency.
Amount [–20.00…+20.00]
This sets the Frequency modulation amount, in Hz.
MIDI/Tempo Sync [Check-box]
BPM [MIDI, 40.00…300.00]
Base Note [ … ]
Times [x1…x32]
When MIDI/Tempo Sync is on, the LFO speed is set by
BPM, Base Note, and Times, instead of Frequency. For
more information, see “MIDI/Tempo Sync” on page 779.
Type [Individual, Common1, Common2]
This controls whether the effect uses its individual LFO, or
one of the Common FX LFOs. For more information, see
“LFO Type” on page 779.
Common LFO Phase Offset [degrees] [+/–180]
When Type is set to Common FX LFO 1 or 2, this lets you
offset the phase from the master LFO.
OUTPUT
This is the standard effects output section, with modulatable
control over wet/dry balance. For more information, see
“OUTPUT” on page 762.
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
LFO Phase
LFO Shape
Pan
Pan
LFO: Tri / Sin
Depth
L-In
Left
Center
Right
Output Stereo Image
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
L-In
R-In
LFO Phase = 0 degrees LFO Phase = 90 degrees LFO Phase = 180 degrees
Stereo Auto Pan - LFO Phase
