PROGRAM > MFX/TFX 9–1: Routing
107
PROGRAM > MFX/TFX
Here you can make settings for the master effects and total
effects. For instance, you can:
• Route a sound to an master effects and total effects
• Make detailed settings for master effects and total effects
For more information, please see “Effect Guide” on
page 729.

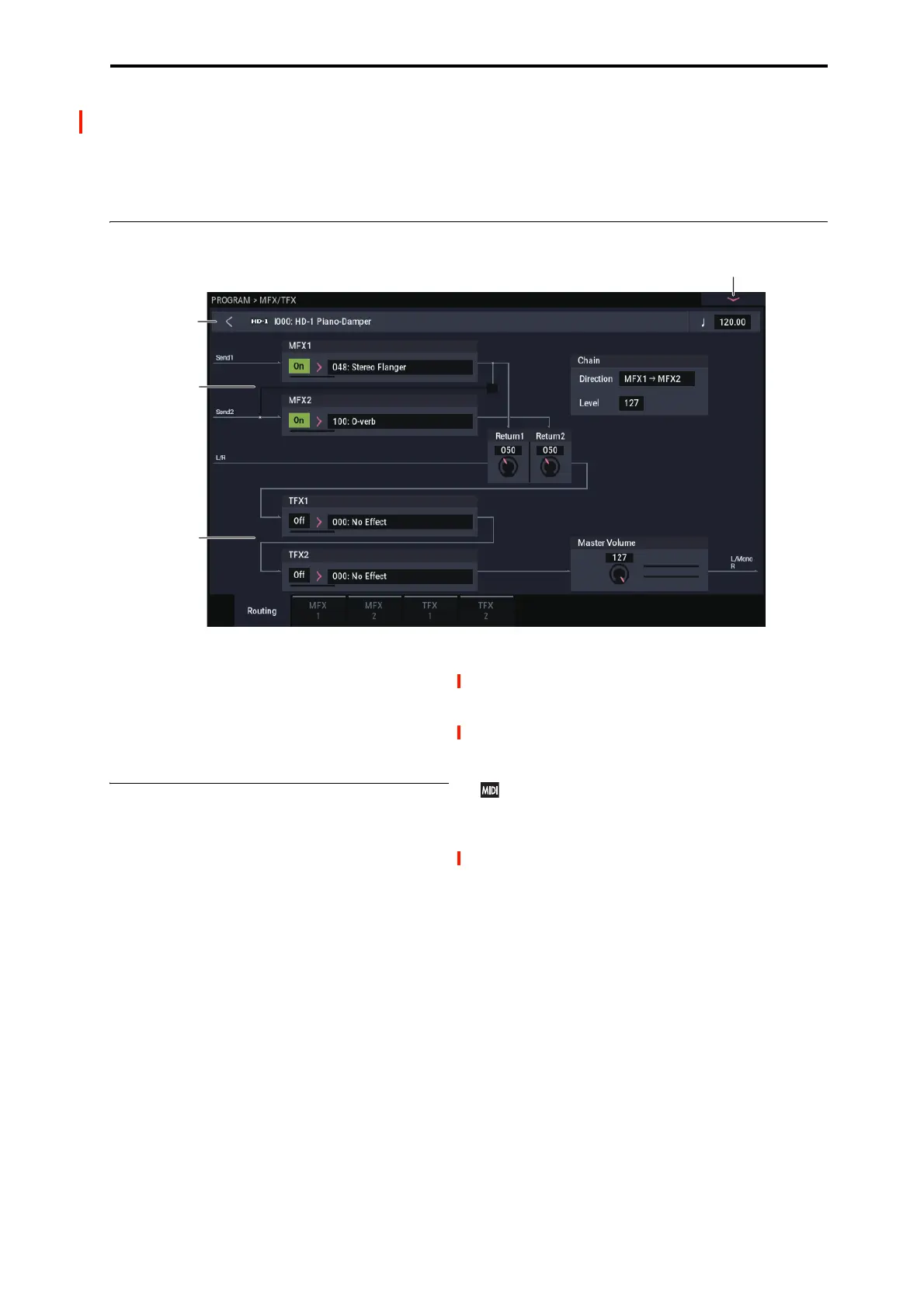

9–1: Routing
Here you can specify the type of master effects and total
effects, and turn them on/off. The meters below the effects
names display the effect output levels in realtime, showing
the combined peak signals of the left and right channels.
The master effects are sent to the L/R bus. The total effects
are inserted into the L/R bus.
9–1a: MFX1, 2
The master effect does not output the direct sound (Dry).
Adjust the “Return 1” and “Return 2” return levels to return
the signal to the L/R bus and mix it with the L/R bus signal.
The master effects are stereo-in/out, but depending on the
selected effect type, the output may be monaural. See
“In/Out” on page 737.
MFX1
MFX1 [000…197]
This selects the effect type for master effect 1. You can use
any of the available effects, without limitation. If you choose
000:No Effect, the output from the master effect is muted.
The meter below the effect name displays the effect’s output
level in realtime, showing the combined peak signals of the
left and right channels.
Category/MFX Select menu
When you press the popup button, the Category/MFX Select
menu will appear, letting you select effects by category. Use
the tabs to select a category, and then select an effect within
that category. Press the OK button to execute your selection,
or press the Cancel button to cancel.
You can also use the Find button to search for effects by
name. For more information, see “Find dialog” on page 7.
MFX1 On/Off [Off, On]
Switches the master effect 1 on/off. When off, the output
will be muted. This will alternate between on and off each
time it is pressed.
Separately from the settings here, you can use control
change #94 to turn master effects 1 and 2 off. A value of 0
turns them off, and values of 1–127 restore the original
setting. The global MIDI channel specified by MIDI
Channel (GLOBAL 1–1a) is used for this message.
Return 1 [000…127]
This specifies the return level from the master effect to the
L/R bus (after which it passes through TFX1 and 2, and is
sent from L/MONO and R).
MFX2
MFX2 [000…197]
MFX2 On/Off [Off, On]
Return 2 [000…127]
These parameters specify the effect type for master effect 2,
its on/off status, and the return level from master effect 2 to
the L/R bus. See “MFX1” on page 107.
Chain:
Chain On/Off [Off, On]
On (checked): Chain (series connection) will be turned on
for MFX1 and MFX2.
9–1PMC
1–1a
9–1a
9–1b
