802

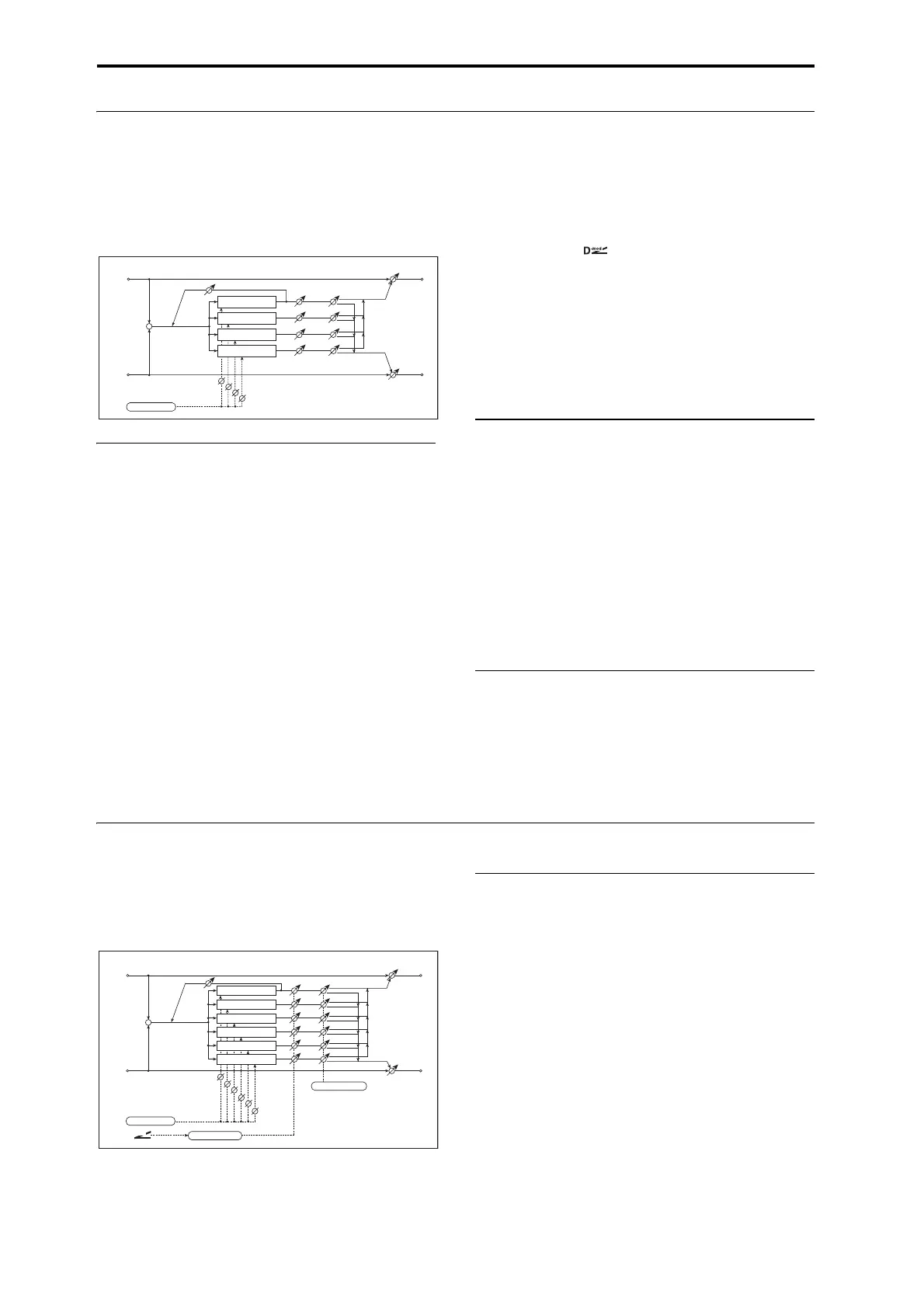

043: Multitap Cho/Delay 4Taps
This effect has four chorus blocks, each with a different LFO
phase. You can create a complex stereo image by setting
each block’s delay time, depth, output level, and pan
individually. You can also fix some of the chorus blocks to
combine the chorus and delay effects.
MOD DELAY
Taps 1-4
There are four delay taps, each with separate settings for
delay time, chorus depth, level, and pan. The chorus LFO
phases are different for each tap:
Tap 1 = 0 degrees
Tap 2 = 180 degrees
Tap 3 = 90 degrees
Tap 4 = 270 degrees
Tap 1…4 [msec] [0…1000]
This sets the tap’s delay time.
Depth 1…4 [0…30]
This sets the tap’s chorus depth.
Level 1…4 [0…30]
This sets the tap’s output level.
Pan 1…4 [L6…L1, C, R1…R6]
This sets the tap’s stereo position.
Tap 1 Feedback
Tap1 Feedback [+/–100]
Sets the Tap1 feedback amount.
Source [Off…Tempo]
Selects the modulation source of Tap1 feedback amount and
effect balance.
Amount [+/–100]
Sets the Tap1 feedback amount and modulation amount.
LFO
Frequency [Hz] [0.02…13.00]
This sets the LFO speed, in Hz.
LFO Type [Individual, Common1, Common2]
This controls whether the effect uses its individual LFO, or
one of the Common FX LFOs. For more information, see
“LFO Type” on page 779.
Common LFO Phase Ofs [deg] [–180…+180]
When Type is set to Common FX LFO 1 or 2, this lets you
offset the phase from the master LFO.
OUTPUT
This is the standard effects output section, with modulatable
control over wet/dry balance. For more information, see
“OUTPUT” on page 762.
044: Multitap Cho/Delay 6Taps
This effect has six chorus blocks with different LFO phases.
You can produce a complex stereo image by setting a
different delay time and depth for each block. You can
control the delay output level via a modulation source.
MODULATION DELAY
Taps 1-6
There are six delay taps, each with separate settings for delay
time, chorus depth, and on/off/modulation status. The chorus
LFO phases are different for each tap:
Tap 1 = 0 degrees
Tap 2 = 180 degrees
Tap 3 = 60 degrees
Tap 4 = 240 degrees
Tap 5 = 120 degrees
Tap 6 = 300 degrees
Tap 1…6 [msec] [0…2000]
This sets the tap’s delay time.
Depth 1…6 [0…30]
This sets the tap’s chorus depth.
Left
Right
Feedback
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In -Stereo Out
+
Level
Level
Level
Level
Pan
Pan
Pan
Pan
LFO: Triangle
Tap1 Delay
Tap2 Delay
Tap3 Delay
Tap4 Delay
0 [degree]
180 [degree]
90 [degree]
270 [degree]
Left
Right
Feedback
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In -Stereo Out
+
LFO: Triangle
0 [degree]
180 [degree]
60 [degree]
240 [degree]
120 [degree]
300 [degree]
Tap1 Delay
Tap2 Delay
Tap3 Delay
Tap5 Delay
Tap6 Delay
Tap4 Delay
D
-mod
On/O Control
Panning Preset
