5–2c: Drag Across Drawbars
Drag Across Drawbars [Off, On]
Off (un-checked): When Drag Across Drawbars is Off,
you can edit CX-3 drawbars just as you would other slider
controls, by touching and dragging the individual drawbars
one by one. This is the default.
On (checked): When Drag Across Drawbars is On, you
can edit multiple drawbars in a single gesture. Just drag a
shape across the drawbars horizontally.
v
5–2: Page Menu Commands
• Compare →p.112
• Write Program →p.112
• Exclusive Solo →p.113
• Copy Drawbars →p.206
• Swap Drawbars →p.206
• PAGE →p.126
•MODE →p.126
5–3: EX Drawbars
When the Drawbar Mode is set to EX, this adds four extra
drawbars to the basic nine, with pitches adjustable in half-
step increments between 16’ and two octaves above 1’. You
can select from four preset combinations of drawbar pitches,
or create your own from scratch.
When the Drawbar Mode is set to Normal, this section is
grayed out.
Wrap-around and EX mode
Any harmonics above F#8 are “wrapped around” so that
they will sound one or more octaves lower. Similarly,
harmonics below C2 will be wrapped around to sound an
octave higher. For more details, see “Wrap-around” on
page 191.
In particular, this means that high settings of the EX
Drawbar 1-4 Pitch parameters, below, may only be
perceptible in the lower octaves of the keyboard.

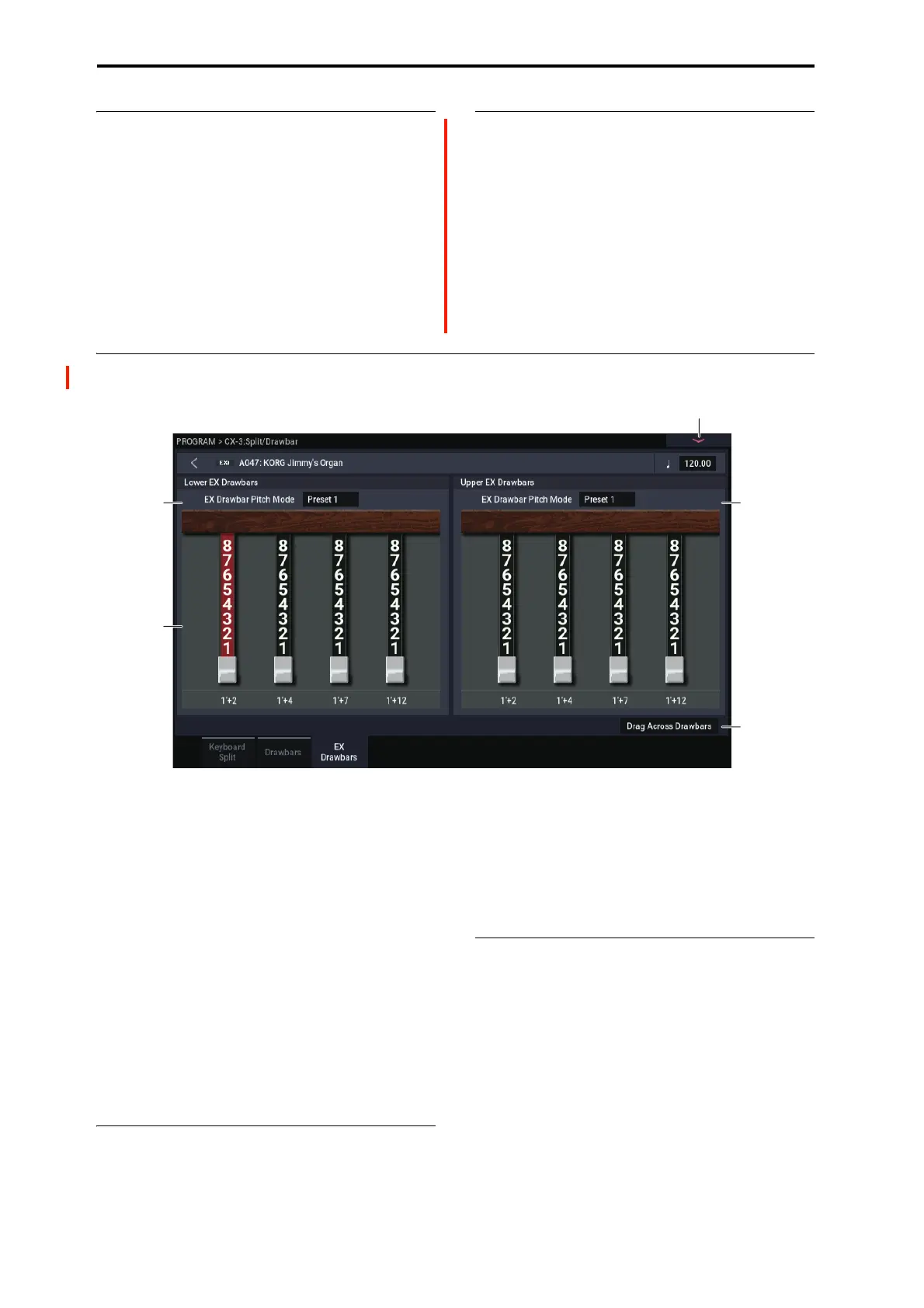

5–3a: Lower EX Drawbars
These parameters control the individual EX drawbar pitches
and volume levels for the Lower split.
EX Drawbar Pitch Mode [Preset 1…4, Custom]
Presets 1-4 are the CX-3’s default Pitch settings for the set
of four EX Drawbars. When one of the Presets is selected,
the EX Drawbar 1-4 Pitch parameters, below, are grayed out.
Custom lets you specify the pitches for each EX drawbar,
using the EX Drawbar 1-4 Pitch parameters.
5–3b: Custom Drawbar Settings
Ex Drawbar 1 Pitch [16’…1’ +24]
This specifies the pitch assigned to EX Drawbar 1. The
values are expressed in organ feet and semitones, with
single-semitone steps from 16’ to 1’ +24 semitones.
This parameter is only available if the EX Drawbar Mode
is set to Custom. Otherwise, it is grayed out.
Ex Drawbar 1 Level [0…8]
This is the volume for EX Drawbar 1.
0 means that the drawbar will be silent, and 8 is the
maximum volume.
Ex Drawbars 2-4 Pitch [16’…1’ +24]
These parameters specify the pitch assigned to EX Drawbars
2-4. For more information, see “Ex Drawbar 1 Pitch,” above.
5–3PMC
5–3a
5–3b
5–3c, d
5–3e
