Effect Guide
750
Routing
Master effects MFX1 and MFX2 can both be used in any
mode. If you are not using any Insert Effects in any mode,
the Master Effects send levels are determined by the Send1
(to MFX1) and Send2 (to MFX2) parameters specified
independently for the oscillators (PROGRAM/SAMPLING
mode), timbres (COMBINATION mode), tracks
(SEQUENCER mode), and audio inputs (in all modes).
For example, since you can adjust the master effect send
levels for each timbre/track, you can make settings so that
reverb is applied deeply to the piano, lightly to the strings,
and not at all to the bass.
If you’re using insert effects, use the post-IFX Send1 and
Send2 to adjust the send amounts.
PROGRAM mode
Use the Send1 (to MFX1) and Send2 (to MFX2)
parameters of the IFX– Routing page, or the Send1 and
Send2 parameters of the IFX– Insert FX page for the post-
IFX1–12 signals, to set the Master Effect send level.
If you have set Bus Select to L/R or Off, Send1 (to MFX1)
and Send2 (to MFX2) of the Routing page are effective.
These parameters can be set for oscillators 1 and 2

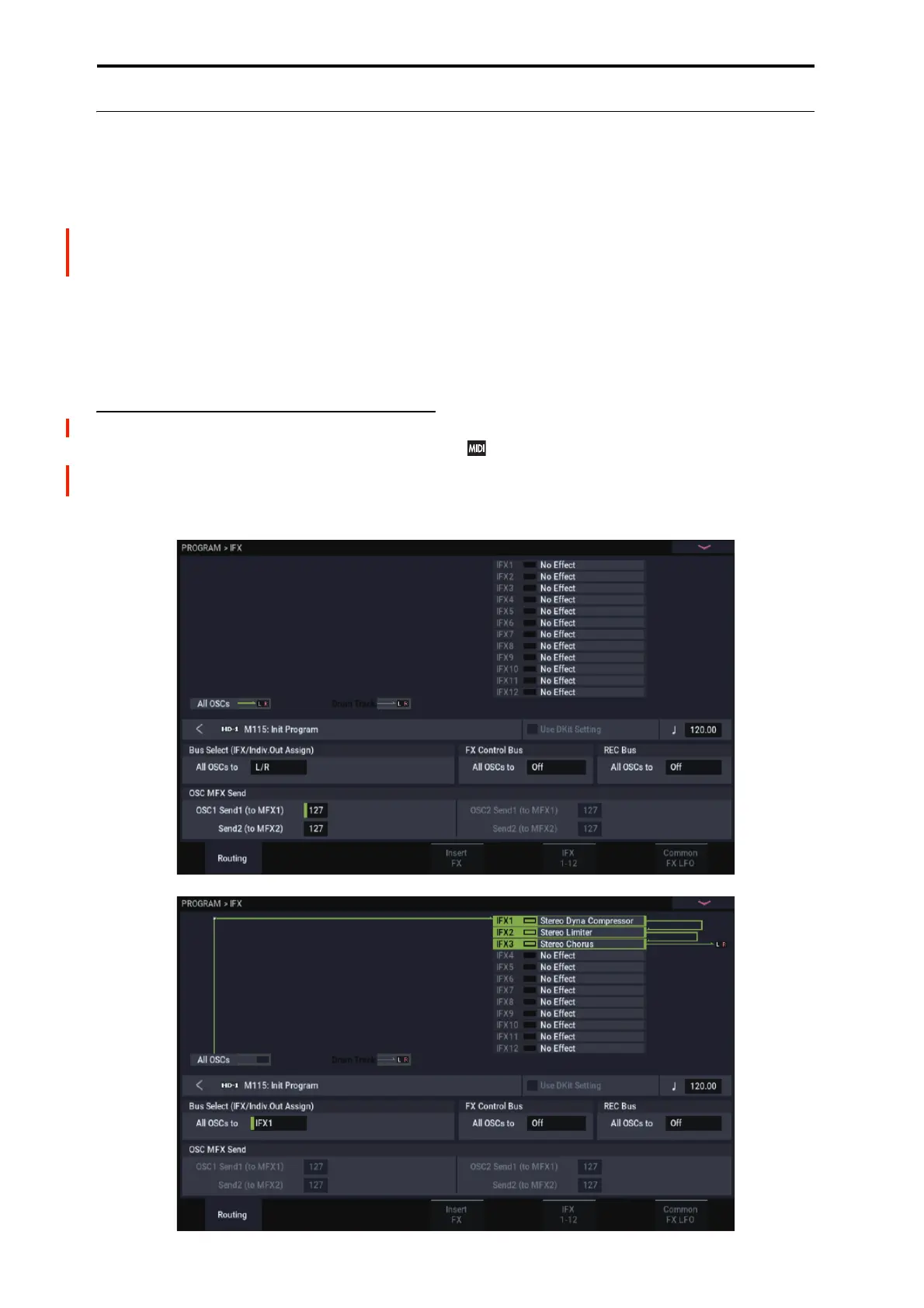

individually. (Fig. 2–1a)
If you have set Bus Select to IFX1–12, Send1 and Send2 of
the Insert FX page for the post-P8-IFX1–12 signals are
effective. If you are using the Insert Effects in chain (series),
the Send1 and Send2 parameters for the post-IFX (last IFX)
are effective (Fig 2–1b).
If you have set Bus Select to 1–4 or 1/2–3/4, the oscillator
signals are output directly to AUDIO OUTPUT
(INDIVIDUAL) 1–4.
In this case the Send 1 and Send 2 settings are ignored, and
the Master Effects will not be applied (see “Individual
Outputs” on page 757).
Send1 responds to CC#93 and Send2 responds to CC#91
on the global MIDI channel. At this time, the actual send
level uses the value of the Send 1 and 2 settings for
Oscillators 1 and 2, multiplied by the Send 1 and 2 values
received via MIDI.
