SAMPLING > IFX 8–5: Insert FX
597
8–5: Insert FX
In this page you can select the effect types for the insert
effects, turn them on/off, and make chaining settings.

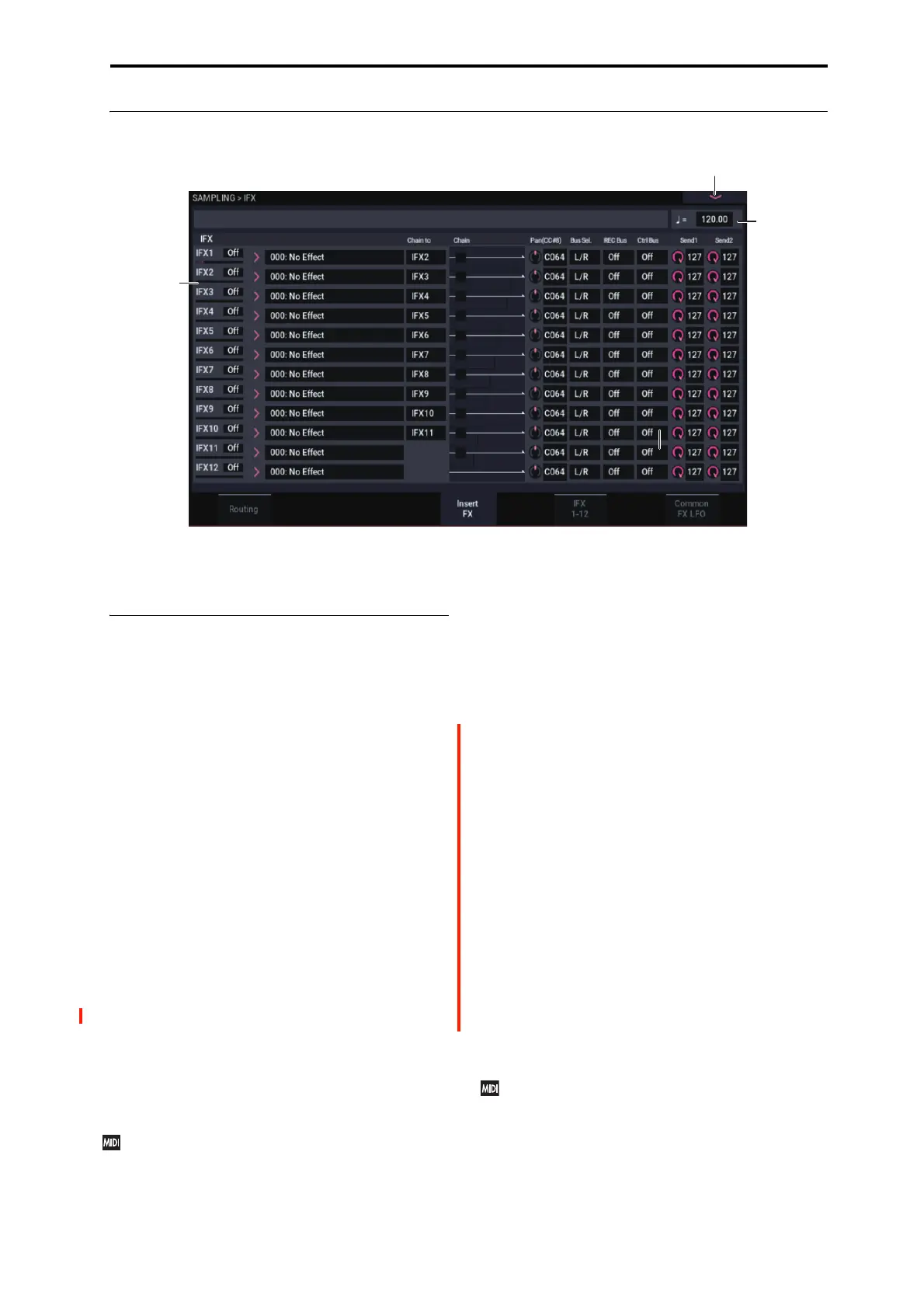

8–5a: IFX
Here you can select the type of effect for each insert effect
1–12, turn it on/off, make chaining settings, and make post-
IFX mixer settings. For insert effects, the direct (Dry) sound
is always stereo-in/out. The configuration of the effect sound
(Wet) will depend on the type of effect.
Meters below the IFX labels display the effect output levels
in realtime, showing the combined peak signals of the left
and right channels.
IFX1
IFX1 [000…197]
This selects the effect type for insert effect 1.
Category/IFX Select menu
When you press the popup button, the Category/IFX Select
menu will appear, letting you select effects by category. Use
the tabs to select a category, and then select an effect within
that category. Press the OK button to execute your selection,
or press the Cancel button to cancel.
IFX1 On/Off [Off, On]
Switches the insert effect on/off.
If this is off, the input will simply be passed to the output.
(Turning on 000:No Effect is the same as the Off setting.)
The setting will alternate between on and off each time you
press this.
Separately from this setting, you can use control change
#92 to turn all insert effects off. A value of 0 turns them
off, and values of 1–127 restore the original setting. The
global MIDI channel specified by MIDI Channel is used
for this message.
Chain to [IFX2…IFX12]
You can chain up to twelve insert effects together in series,
to create more complex effects. Set up the chain using this
parameter, and then enable it using the Chain check box,
below.
Effects must be chained in ascending numeric order. For
example, IFX1 can be chained to any of IFX2 through
IFX12, and IFX2 can be chained to IFX3 through IFX12.
Chain [Off, On]
This connects the insert effects in series.
If the Chain checkbox is selected, the insert effect will be
connected in series to the insert effects configured in “Chain
to”.
Example: IFX1 “Chain to”: IFX2
IFX1 “Chain”: On
Connects the IFX1 → IFX2 in series. Setting “Bus Select”
(8-1b) to “IFX1” will insert the effects for the OSC output in
series, with the IFX1 first and then IFX2. You can connect a
maximum of 12 insert effects in series (from IFX1 to
IFX12). When the insert effects are chained, the settings
after passing through the final IFX will be enabled, including
“Pan (CC#8)”, “Bus Select”, ”REC Bus”, “Send1” and
“Send2”.
Pan (CC#8) (Post IFX PanCC#8)
[L000…C064…R127]
Specifies the panning immediately after the insert effect.
You can use CC#8 to control this.
Bus Sel. (Bus Select) [L/R, 1…4, 1/2…3/4, Off]
Specifies the bus to which the signal will be sent
immediately after the insert effect.
L/R: The signal will be output to the L/R bus. Then after
passing through TFX1 and TFX2, it will be output to
AUDIO OUTPUT L/R. This is the normal setting.
8–5b
8–5PMC
8–5a
8–1d
To Next Page
