Korg NAUTILUS Series Parameter Guide

EXi: PolysixEX
294
PolysixEX: Tone Adjust

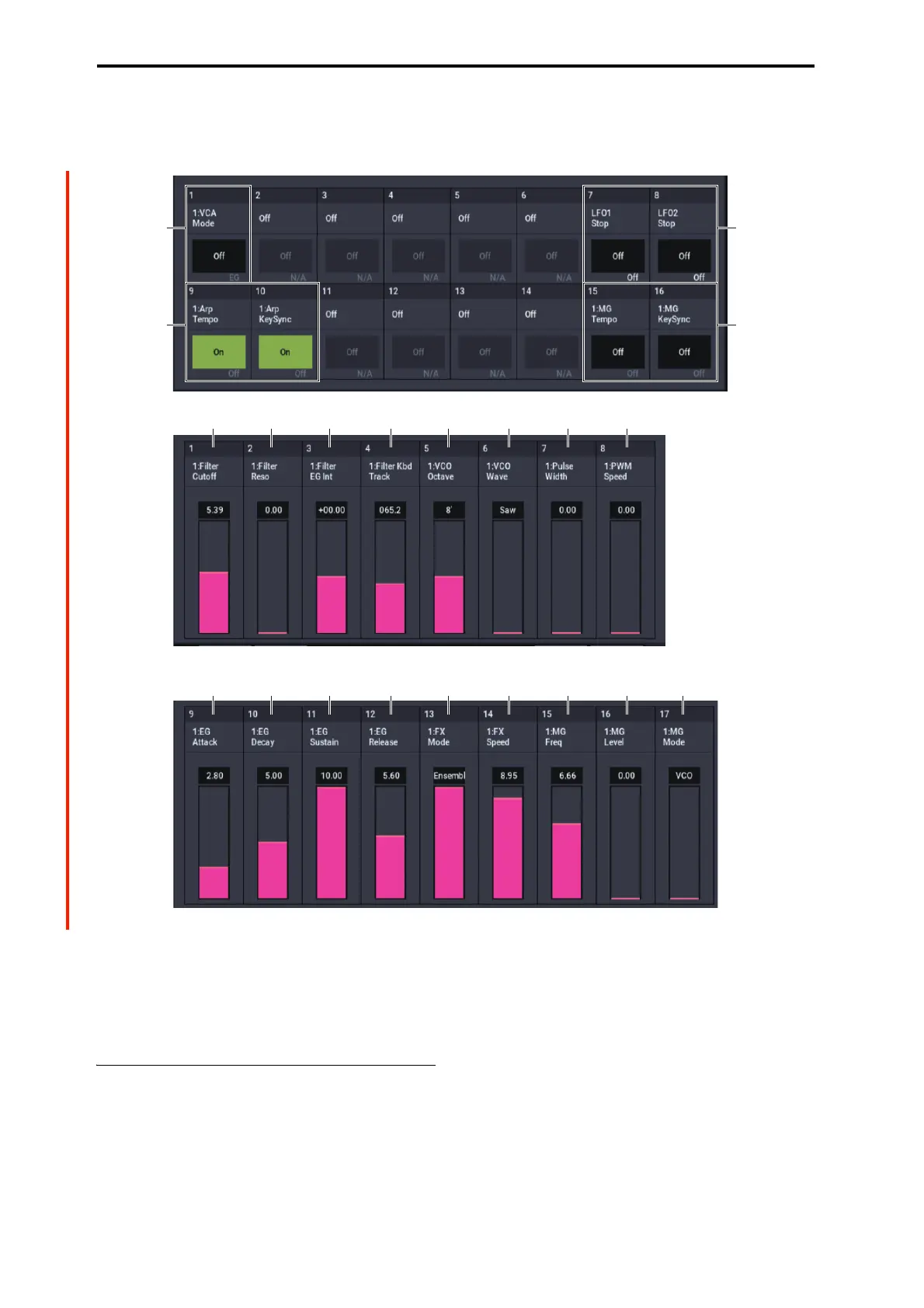

PolysixEX Tone Adjust Default Settings
Tone Adjust provides an elegant physical interface to the
PolysixEX’s parameters. Most of the factory sounds use the
default layout, as shown above. You can also customize the
layout for individual sounds, if desired.
For more information about Tone Adjust, please see “0–9a:
Tone Adjust,” on page 29.
Common Tone Adjust parameters
These parameters affect both EXi 1 and 2. Except as noted
below, the Common Tone Adjust parameters behave as
described under “Common Tone Adjust Parameters,” on
page 31.
Amp Velocity Intensity. (–99…+99)
Not supported.
Filter/Amp EG Attack Time.
(–99…+99, CC#73)
This scales the attack time of the PolysixEX EG. It interacts
with CC# 73.
Filter/Amp EG Decay Time.
(–99…+99, CC#75)
This scales the decay time of the PolysixEX EG. It interacts
with CC# 75.
Filter/Amp EG Sustain Level.
(–99…+99, CC#70)
This scales the sustain level of the PolysixEX EG. It interacts
with CC# 70.
Filter/Amp EG Release Time.
(–99…+99, CC#72)
This scales the release time of the PolysixEX EG. It interacts
with CC# 72.
Filter
Resonance
Filter EG
Intensity
Filter Kbd
Track
VCO
Octave
VCO
Waveform
Pulse
Width
PWM
Speed
Filter
Cuto
EG1
Decay
EG1
Sustain
EG1
Release
Eect
Mode
Eect
Int/Speed
MG
Freq/Times
MG
Level
MG
Mode
EG1
Attack
Button 7, 8:
LFO 1 & 2 Stop
Button 15, 16:
MG Tempo &
Key Sync
Button 1:
VCA Mode
Button 9, 10:
Arp Tempo &
Key Sync

Korg NAUTILUS Series Specifications

General

Sampling	Open Sampling System
MIDI	In, Out, Thru
Preset Combinations	384
Keyboard	61-key (NAUTILUS 61), 73-key (NAUTILUS 73), 88-key (NAUTILUS 88, RH3 weighted action)
Effects	12 Insert Effects; 2 Master Effects; 2 Total Effects
Sequencer	16-track MIDI Sequencer
Storage	Internal SSD (60 GB)
Audio Inputs	2 x 1/4"
Audio Outputs	Headphones
USB	Type A (host), Type B (device)
Weight	NAUTILUS 88: 23.1 kg
Display	8 inch TouchView™ GUI (800x600 pixels)
