SEQUENCER > IFX 8–1: MIDI Routing1
507
SEQUENCER > IFX
You can also specify the bus routing for the program used by
each MIDI track 1–16 and audio track 1–16. For instance,
you can:
• Send the output of a track to an insert effect
• Route a sound to an insert effect
• Make detailed settings for insert effects
• Make common LFO settings for effects
For details on Insert Effects, see “Effect Guide” on
page 729.
8–1: MIDI Routing1
Specifies the bus to which the program oscillator(s) used by
each MIDI track 1–16 will be sent. You can also set the send
levels to the master effects from this page.

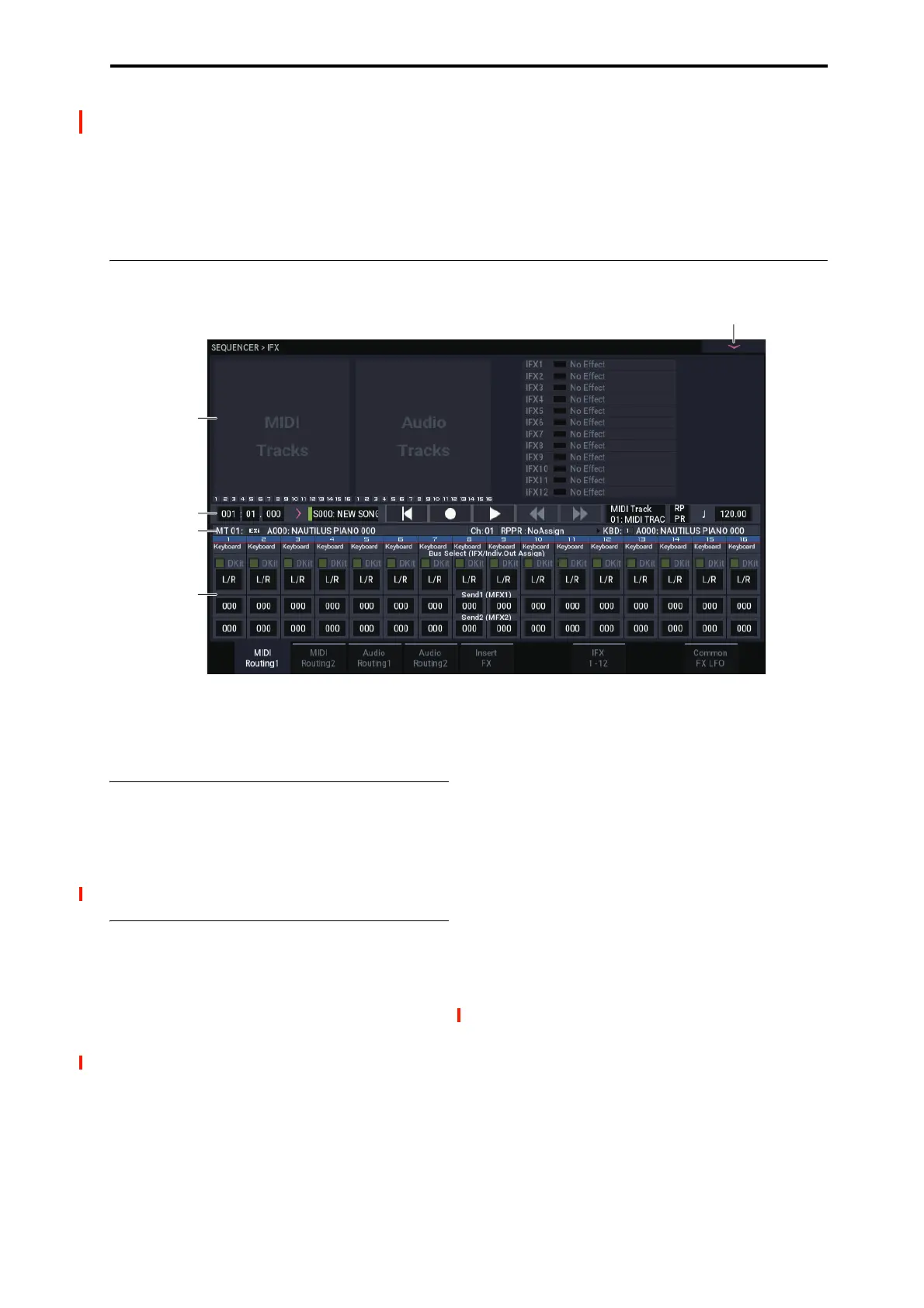

8–1a: Routing Map
This area shows the insert effect routing, the name of the
assigned effect, the on/off status, chaining, and the output
bus that follows the insert effect. The type of insert effect,
the on/off status, and the chain settings can be edited in the
IFX– Insert FX page.
8–1b: MIDI Routing1
Track 01 (Track Number)
Bus Select (IFX/Indiv. Out Assign) Dkit [Off, On]
You can select this only if the specified program is a drum
program (Oscillator Mode Drums or Double Drums).
This parameter can also be edited from the IFX– MIDI
Routing 2 page.
On (checked): The Bus Select, FX Control Bus, Send1,
and Send2 settings for each key of the selected drum kit will
be used. Check this setting if you want to apply an individual
insert effect to each drum instrument, or to send individual
drum instruments to AUDIO OUTPUT (INDIVIDUAL).
Tip: In most preloaded drumkits, the drum instruments have
the same Bus Select settings according to their type, as
follows.
Snares → IFX1
Kicks → IFX2
Toms → IFX3
Cymbals → IFX4
Percussion etc. → IFX5
If you want to edit these routings, use the “Drum Kit IFX
Patch” page menu command. For details, see “Drum Kit IFX
Patch” on page 437.
Off (unchecked): The Bus Select, FX Control Bus, and
Send 1/2 settings will be used. All drum instruments will be
sent to the specified bus.
Bus Select (IFX/Indiv.Out Assign)
[L/R, IFX1…12, 1…4, 1/2…3/4, Off]
This specifies the output bus for the track’s program
oscillator. This parameter can also be edited from the IFX–
MIDI Routing 2 page.
L/R: Output to the L/R bus.
IFX1…12: Output to the IFX1–12 buses.
1…4: The track will be output in mono from the
corresponding AUDIO OUTPUT (INDIVIDUAL).
1/2…3/4: The track will be output in stereo according to its
pan setting from the corresponding AUDIO OUTPUT
(INDIVIDUAL) pairs.
To Next Page
