EQ and Filters 012: Stereo Graphic 7EQ
775
GAIN MOD
Band2 Source [Off…Tempo]
Selects the modulation source for the Band 2 gain.
Amount [dB] [–18.0…+18.0]
Sets the modulation amount for the Band 2 gain.
OUTPUT
This is the standard effects output section, with modulatable
control over wet/dry balance. For more information, see
“OUTPUT” on page 762.

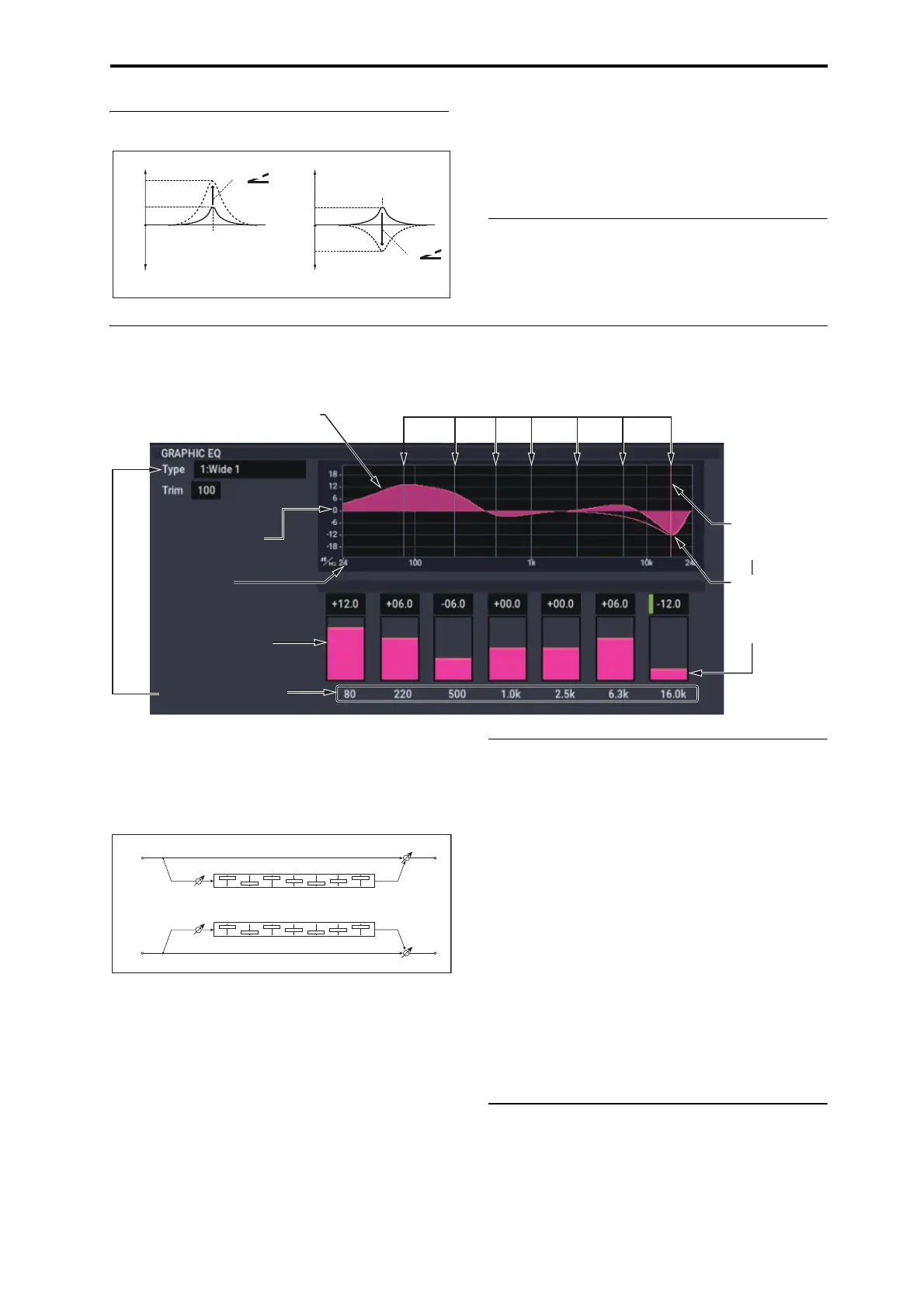

012: Stereo Graphic 7EQ
On-screen graphic, 012: Stereo Graphic 7EQ
This is a stereo 7-band graphic equalizer. The bar graph of
the gain setting for each band gives you a clear, visual idea
of frequency responses. You can select a center frequency
setting for each band from twelve types, according to the
sound.
GRAPHIC EQ
Type [1:Wide 1, 2:Wide 2, 3:Wide 3,
4:
Half Wide 1,
5:
Half Wide 2,
6:
Half Wide 3,
7:Low, 8:
Wide Low,
9:Mid, 10:
Wide Mid,
11:High, 12:
Wide High]
This parameter selects a combination of center frequencies
for each band. Each center frequency is shown on the bottom
of the Gain slider.
You can configure a 21-Band Graphic EQ ranging from
80Hz to 18kHz if you route three Graphic 7Band EQ effects
in series, with a setting of 7:Low, 9:Mid, and 11:High for
each EQ.
Trim [0…100]
Sets the input level
(Band1…8 Gain [dB]) [–18.0…+18.0]
These controls set the gain for each of the eight bands.
OUTPUT
This is the standard effects output section, with modulatable
control over wet/dry balance. For more information, see
“OUTPUT” on page 762.
Band2 Cuto
Band2 Cuto
0dB
+6dB
+15dB
Band2 Gain[dB]= +6.0
Band2 Gain Mod Amount[dB]= +9.0
D
-mod
0dB
+6dB
–9dB
Band2 Gain[dB]= +6.0
Band2 Gain Mod Amount[dB]= –15.0
D
-mod
Parametric 4EQ - Band2 Gain Mod
Vertical axis: Gain (dB)
Horizontal axis:
Frequency (Hz)
This line shows the center
frequencies of the selected Type.
Red area: This shows the frequency response
after passing through all of the bands.
These sliders adjust the
gain (dB) of each band.
The selected band
is indicated by a
thick red line.
Red line: Shows
the frequency response
of the selected band
alone, without the results
of the other bands.
White lines show the center frequencies of each band.
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Band1 Band2 Band3 Band4
Trim
Trim
Band5 Band6 Band7
Band1 Band2 Band3 Band4 Band5 Band6 Band7
