PROGRAM mode: HD-1
48

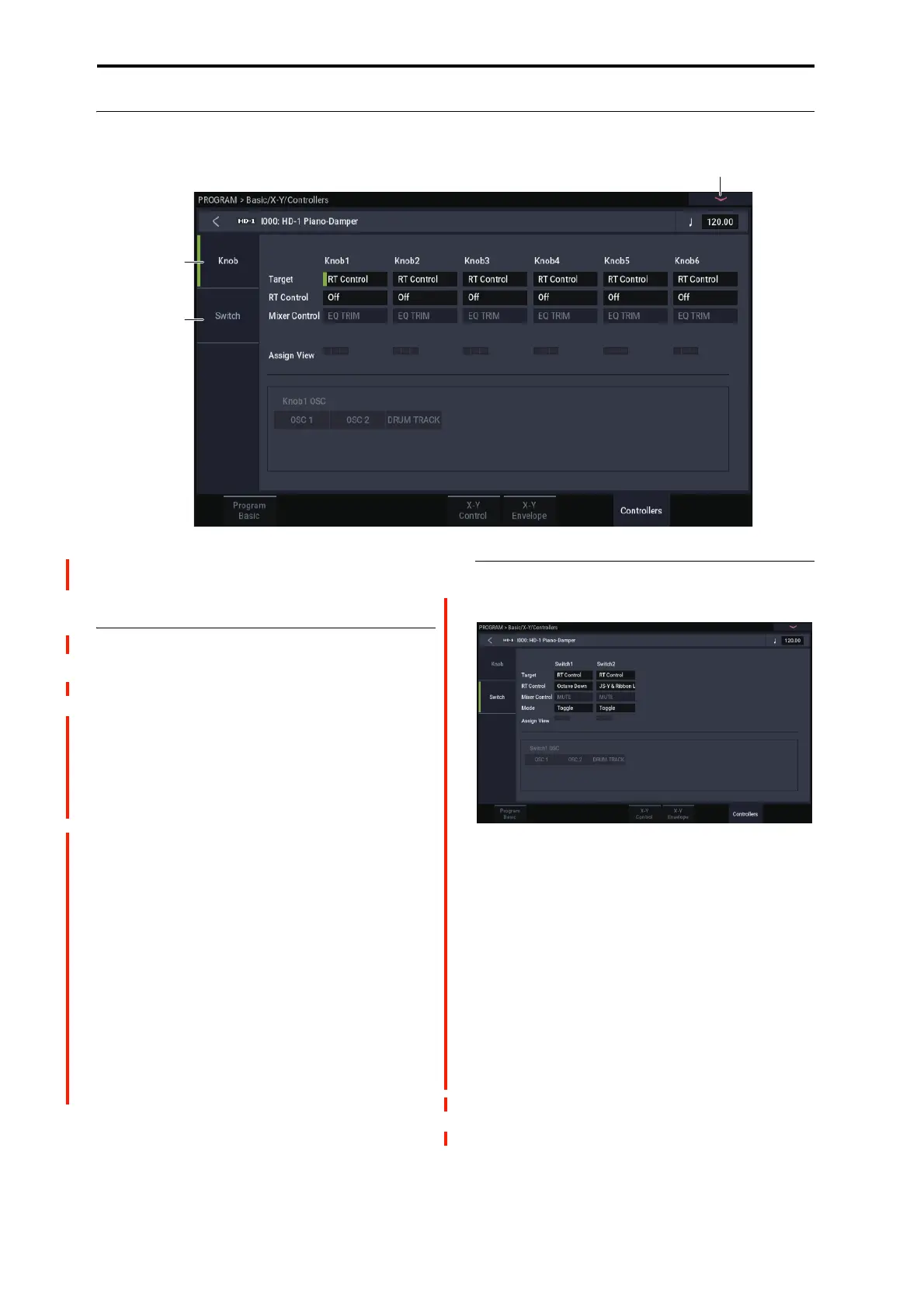

1–8: Controllers
This page lets you set up the functionality of buttons 1 and 2
(SW1/2) and RT Control Knobs 1–6. These settings are
made independently for each Program.
1–8a: RT Control Knob Assign
These settings assign functions (mainly MIDI control
changes) to RT control knobs 1–6. For a complete list of the
possible assignments, please see “RT Control Knobs 1–6
Assignments” on page 914.
The functions that you set here are enabled when you select
a USER with the SELECT button and then operate the RT
control knobs 1–6.
Knob1
Target [RT Control, Mixer]
Selects the function controlled by the knob.
RT Control: Controls the parameter that you have selected
with RT Control.
Mixer Control: Controls the parameter that you have
selected using Mixer Control.
RT Control [Off, ..., MIDI CC#119]
When the Target is “Mixer”, you can select the oscillator
(OSC1, OSC2, DRUM TRACK) to be controlled.
Mixer Control [EQ TRIM, EQ LO GAIN,
EQ MID GAIN, EQ MID FREQ,
EQ HI GAIN, SEND1, SEND2, PAN,
VOLUME, EXPRESSION]
1–8b: Panel Switch Assign
These settings control the functionality of SW1 and SW2.
Target
Selects the function controlled by the switch.
RT Control: Controls the parameter that you have selected
with RT Control.
Mixer Control: Controls the parameter that you have
selected using Mixer Control.
RT Control [Off, ..., Soft (CC#67)]
When the Target is “Mixer”, you can select the oscillator
(OSC1, OSC2, DRUM TRACK) to be controlled.
Mixer Control [Play/Mute, Solo]
Switch1 [Off, …, Soft (CC#67)]
This assigns a function to the SW1 button. The on/off status
can also be memorized. When you change the assignment,
the button is set to the Off condition.
For a complete list of the possible assignments, please see
“SW1/2 Assignments” on page 913.
1–8PMC
1–8b
1–8a
To Next Page
