EXi PROGRAM > STR-1: Home 0–1: Overview
209
EXi PROGRAM > STR-1: Home
0–1: Overview
This is the main page of PROGRAM mode. For a full
description of this page and all of its functions, please see
“EXi PROGRAM > Home” on page 127. This section
describes only the overview display, which differs for each
individual EXi.

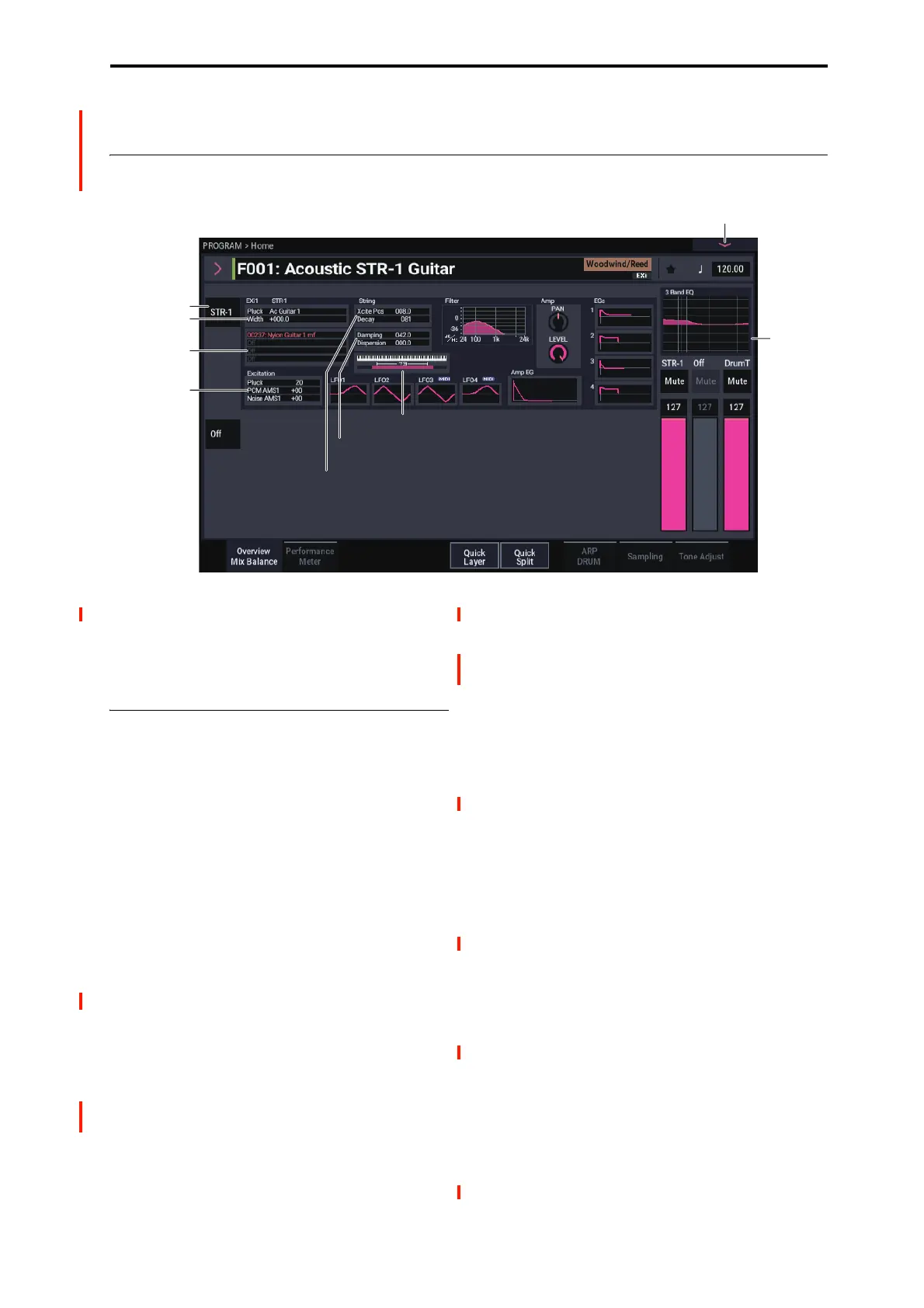

0–1b: Overview and Page Jump
This part of the page shows an overview of the most
important settings for the Program’s two EXi instruments.
The specific parameters will vary, depending on which EXi
are being used. The specific parameters for the STR-1 are
described below.
The graphics give you a quick way to check all of these
settings at a glance. They also let you jump instantly to any
of the displayed parameters. Just touch one of the sections,
and you’ll jump to the page containing its parameters. For
instance, if you touch the Filter EG graphic, you’ll go to the
Filter EG page.
Tip: Pressing EXIT several times will always bring you back
to this page.
STR-1
Excitation
Pluck
This area shows the selected Pluck Type and Width.
Touch this area to jump to the STR-1: String– Pluck/Noise
page.
PCM Oscillator
This area shows the four Multisamples selected for the PCM
Oscillator. Colors are used to distinguish between the
various possibilities, as detailed below.
• Red: ROM, EXs, and User Sample Bank Multisamples
• White: SAMPLING mode Multisamples
•Grey: Off
Touch this area to jump to the STR-1: Strings– PCM OSC
page.
Excitation (Mixer)
This shows the excitation Level for the Pluck, and the
AMS1 Intensities for the Noise Generator and PCM
Oscillator (since these levels will often be controlled
completely via AMS).
Touch this area to jump to the STR-1: Strings– Excitation
Mixer page.
String
String Main
This shows the Excitation Position and Decay settings for
the string.
Touch this area to jump to the STR-1: Strings– String Main
page.
Damping and Dispersion
This shows the Damping and Dispersion settings for the
string.
Touch this area to jump to the STR-1: Strings– Damping and
Dispersion page.
Output
Filter
This shows a graphic representation of the filter frequency
response, including cutoff and resonance.
Press this area to jump to the STR-1: Filter– Basic page.
