3–5: Keyboard Zones
Here you can specify the key zones in which MIDI tracks 1–
16 will sound.
The top/bottom key settings specify the zone in which MIDI
tracks 1–16 will sound, and the top/bottom slope settings
specify the key range over which the volume will change
starting from the top/bottom key.
These settings do not affect MIDI transmission/reception.
All note data that is received will be recorded into the
internal sequencer, and all note data from the internal
sequencer or from the keyboard will be transmitted.

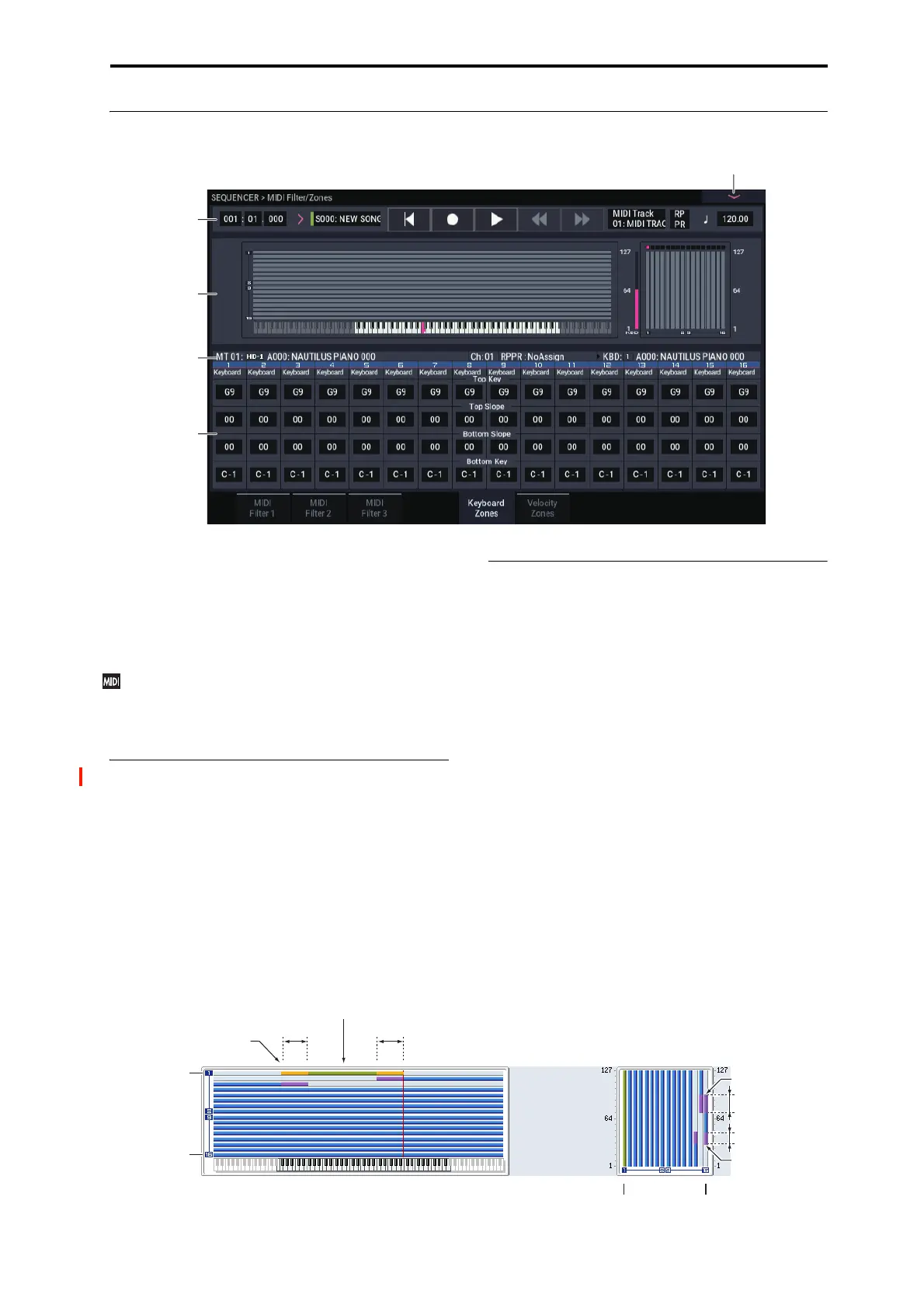

3–5a: Zone Map
This area provides a graphic display of the note and velocity
ranges in which each MIDI Track will sound. The slope
portions of the zones are displayed in a different color.
Under the Key Zone graphic, a keyboard graphic shows the
most recently-played note in green, aligned with the
keyboard zones.
To the left of the Velocity Zone graphic, a meter shows the
velocity of the most recently-played note; red dots above the
graphic show the Zone(s) triggered by that velocity.
3–5b: Keyboard Zones
Track 01 (Track Number)
Top Key [C–1…G9]
Specifies the top key (upper limit) of the notes that will
sound each MIDI track.
Top Slope [00, 01, 02, 03, 04, 06, 08, 10,
12, 18, 24, 30, 36, 48, 60, 72]
Specifies the range of keys (12 is one octave) over which the
volume will be reached starting from the top key.
0: The volume will be at the original level from the top key.
12: The volume will increase gradually as you play
downward, and will reach the original volume one octave
below the top key.
72: The volume will increase gradually as you play
downward, and will reach the original volume six octaves
below the top key.
Track 1
1 16
Track
Velocity zone display
Track 16
C–1 G9E1
Key zone display
Bottom Key
Bottom Slope Top Slope
Top Velocity
Bottom Velocity
Top Slope
Bottom Slope
