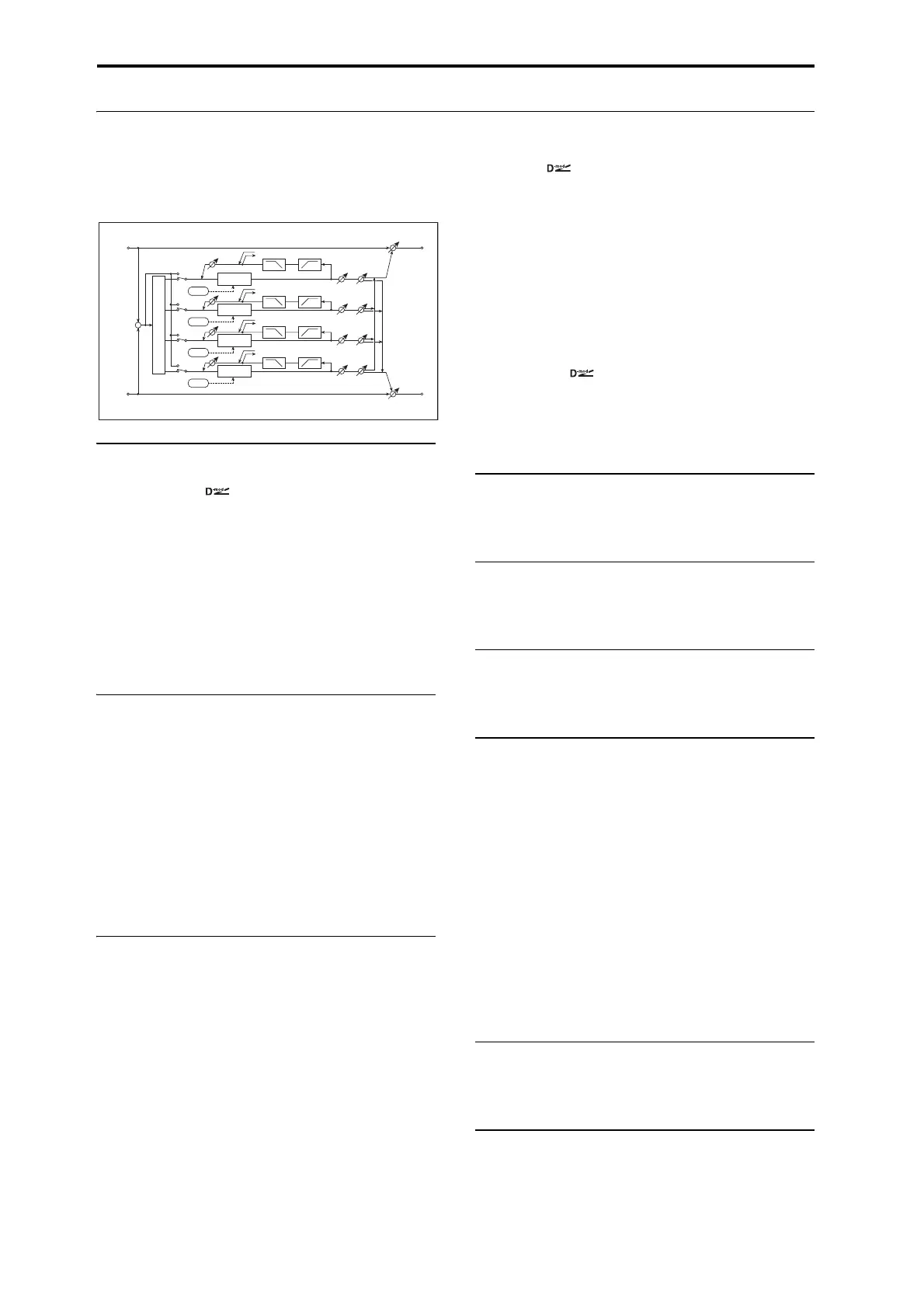

086: Multiband Mod. Delay
This effect divides the input signal into low, mid, and high-
frequency bands, and applies a modulation delay to each
band.
Dmod
Input Level [%] [+/–100]
Sets the modulation amount of the input level. p.823.
Src (Source) [Off…Tempo]
Selects the modulation source for the input level. p.823.
Feedback Src (Source) [Off…Tempo]
Selects the modulation source of feedback amount.
Output Level Src
(
Source) [Off…Tempo]
Selects the modulation source for the output level.
XOVER FILTER
For a description of the on-screen Crossover Filter graphic,
see “004: St.Multiband Compressor” on page 766.
1-2 [Hz] [20…20.00k]
Sets the frequency at which bands 1 and 2 are divided.
2-3 [Hz] [20…20.00k]
Sets the frequency at which bands 2 and 3 are divided.
3-4 [Hz] [20…20.00k]
Sets the frequency at which bands 3 and 4 are divided.
BAND1 DELAY
Input [Xover, Direct]
Selects the input for band 1: either the signal from the
crossover, or the direct signal.
Feedback Src (Source) [Band1, Band2, Band3,
Band4]
Selects the feedback source for band 1. This lets you connect
the feedback of each band to other bands.
Time [msec] [0.0…1200.0]
Sets the delay time for the band 1.
Pan [L, 1…99, R]
Sets the panning for band 1.
Feedback [+/–100]
Sets the feedback amount for band 1.
Amt (Feedback Amount) [+/–100]
Sets the amount of modulation for the band 1 feedback.
Low Damp [%] [0…100]
Sets the amount of low-frequency attenuation for band 1.
High Damp [%] [0…100]
Sets the amount of high-frequency attenuation for band 1.
Output Level [0…100]
Sets the output level for band 1.
Amt (Output Level Amount) [+/–100]
Sets the amount of modulation for band 1’s output level.
BAND2 DELAY
Band 2 has the same parameters as the “BAND1 DELAY,”
above.
BAND3 DELAY
Band 3 has the same parameters as the “BAND1 DELAY,”
above.
BAND4 DELAY
Band 4 has the same parameters as the “BAND1 DELAY,”
above.
BAND1 LFO
Frequency [Hz] [0.02…20.00]
Sets the LFO speed for band 1.
Depth [0…187]
Sets the LFO modulation depth for band 1.
Type [Indiv., Cmn1, Cmn2]
Selects LFO, Common FX LFO1, or Common LFO2 for
band 1. p.779.
Cmn LFO [deg] (Common LFO Phase Offset
[degrees]) [–180…+180]
Sets the phase offset when Type = Common 1 or Common 2.
p.779.
BAND2 LFO
Band 2’s LFO has the same parameters as the “BAND1
LFO,” above.
BAND3 LFO
Band 3’s LFO has the same parameters as the “BAND1
LFO,” above.
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
Delay
Feedback
Input Source
Feedback Source
High Damp Low Damp
Level Pan
+
4-way Crossover
LFO
Delay
Feedback Source
LFO
Delay
Feedback Source
LFO
Delay
Feedback Source
LFO
