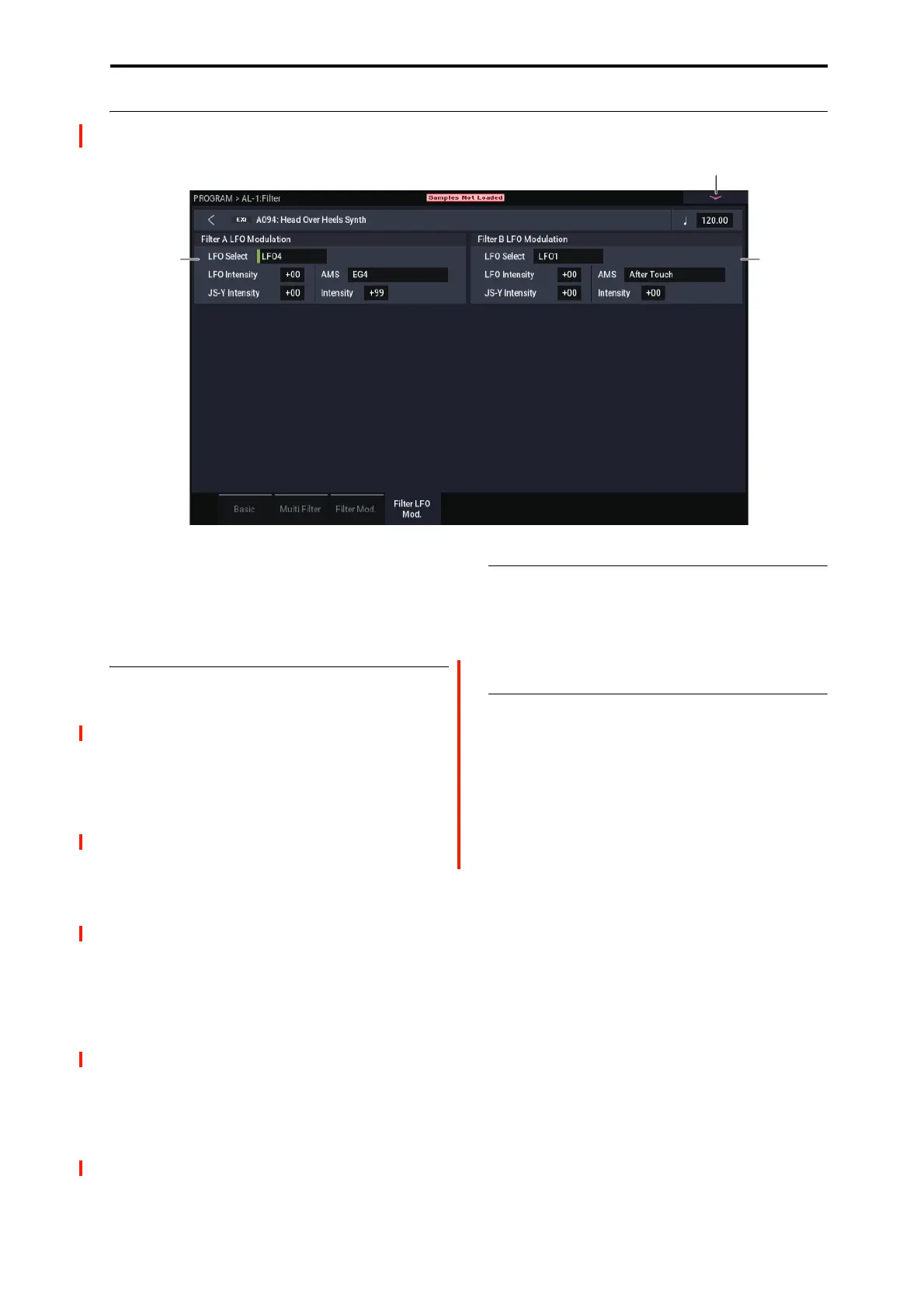

PROGRAM > AL-1: Filter 5–4: Filter LFO Mod.
161
5–4: Filter LFO Mod.
There are three LFO-to-Frequency controls for each filter: a
basic amount (LFO Intensity), joystick -Y control of LFO
amount (JS- Y Intensity), and AMS control of LFO amount
(AMS Intensity). The three controls are summed together to
determine the final LFO amount.
5–4a: Filter A
LFO Select [LFO 1, LFO 2, LFO 3, LFO 4,
Common LFO]
This selects an LFO to modulate Filter A’s cutoff frequency.
The LFO Intensity, JS -Y Intensity, and AMS are all
summed together to produce the final amount of LFO pitch
modulation.
LFO Intensity [–99…+99]
This controls the initial effect of the LFO on Filter A’s cutoff
frequency, before any JS+Y or AMS modulation.
Negative (–) settings will invert the phase of the LFO.
JS -Y Intensity [–99…+99]
Moving the joystick “down” from the center detent position,
towards yourself, produces the JS -Y controller. You can use
this to scale the amount of the LFO applied to Filter A.
This parameter sets the maximum amount of LFO
modulation added by JS -Y.
AMS [List of AMS Sources]
This selects an AMS modulation source to scale the amount
of the LFO applied to Filter A’s cutoff frequency.
For a list of AMS sources, see “Alternate Modulation Source
(AMS) List” on page 901.
Intensity [–99…+99]
This controls the depth and direction of the LFO AMS
modulation.
5–4b: Filter B
The settings for Filter B are the same as those for “5–4a:
Filter A,” above.
When Link is On, or when the Filter Routing is set to Single
or 24dB (4-Pole), all of these parameters are grayed out.
v
5–4: Page Menu Commands
• Compare →p.112
• Write Program →p.112
• Exclusive Solo →p.113
•PAGE →p.126
•MODE →p.126
