762
Attack [1…100]
This controls the onset time of the compressor.
Output Level [0…100]
Sets the output level of the compressor.
Source [Off…Tempo]
Selects the modulation source for the Output Level.
Amount [+/–100]
Sets the modulation amount for the Output Level.
OUTPUT
Wet/Dry [Dry, 1:99…99:1, Wet]
Sets the balance between the “wet” processed sound and the
dry input.
Source [Off…Tempo]
Selects a modulation source for Wet/Dry.
Amount [+/–100]
Sets the modulation amount for Wet/Dry.

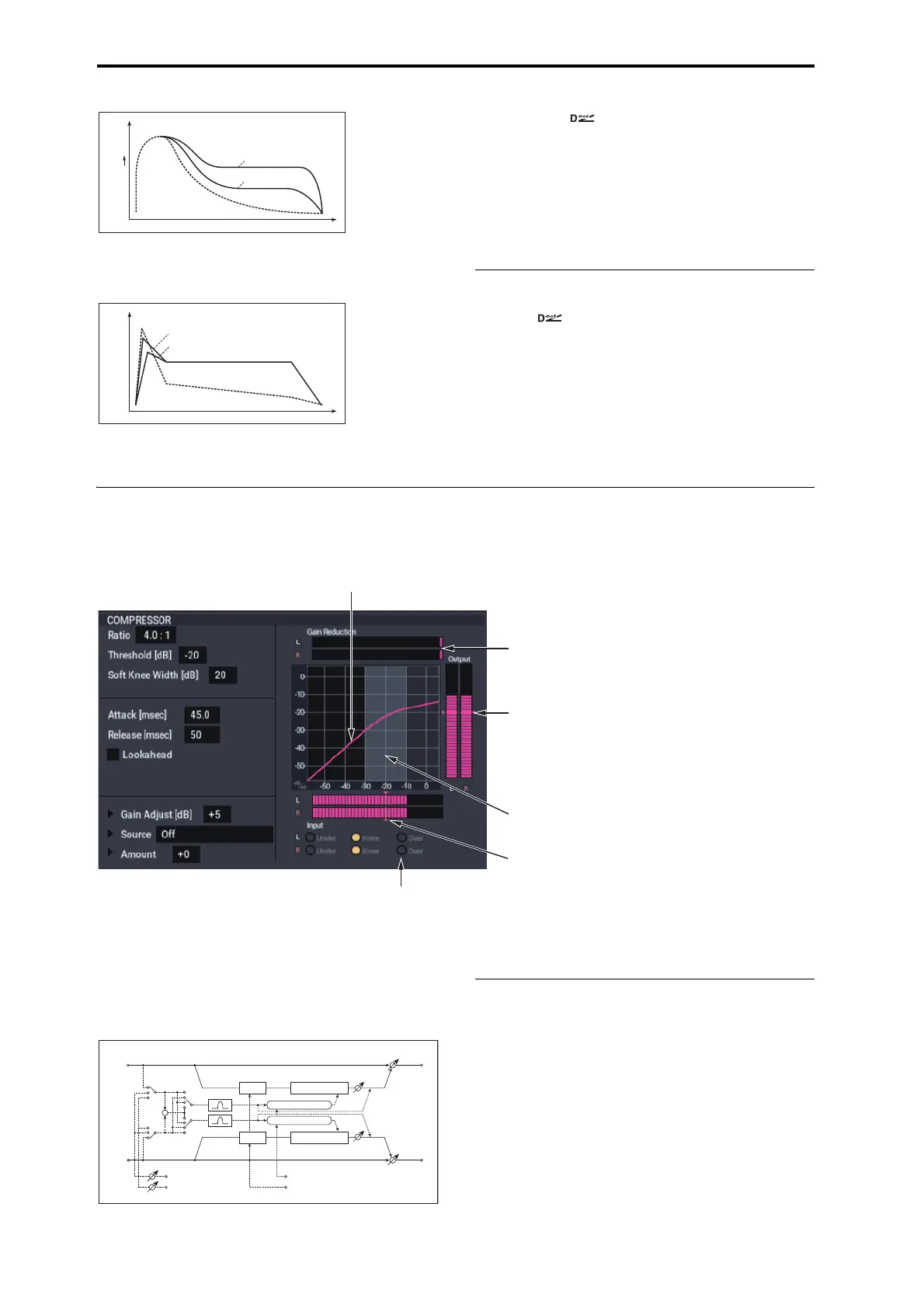

002: Stereo Compressor
On-screen graphic, 002 Stereo Compressor
This is a sophisticated stereo compressor that allows you to
make detailed settings, such as the level detection method
and the compression curve.
ENVELOPE
Source [Input, FX Control 1, FX Control 2]
The action of the compressor is controlled by the level of the
selected Source.
Input is the normal setting, in which the level of the input
signal controls the compressor.
FX Control 1 or 2 let you process the input signal with the
compressor, while using a completely different signal to
control it. For instance, you might use a different Timbre or
Track to duck the input signal. For more information, please
see “FX Control Buses” on page 733.
Sensitivity=100
Sensitivity=40
Dry
Wet
Time
Level
Dyna Compressor - Sensitivity
Louder
Dry
Wet
Time
Level
Attack=80
Attack=20
Dyna Compressor - Attack
The light gray area shows the Soft Knee Width.
Notice how the slope of the yellow line changes
as it passes through this range.
The yellow line shows the output level, relative to the input level.
This will change according to the Ratio, Threshold, and Soft Knee Width.
These lights show the relation of the control input to the Threshold and Soft Knee, in real-time.
Under (green) means the input is below the Soft Knee area, and so no compression is occurring.
Knee (yellow) means that the input is within the Soft Knee range. Within this range, as the signal gets
louder, the amount of compression will gradually increase towards the Ratio setting.
Over (red) means that the input is above the Soft Knee range, and the full Ratio is being applied.
This meter shows the amount of gain reduction, in
real-time. To show that the gain is being reduced,
the meter moves in the opposite direction from the
Input meter.
The red marks show the Threshold setting.
The red marks show the Threshold setting.
Left
Right
FX Control BUS 1
Lookahead
Detection Mode
FX Control BUS 2
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Compressor
Envelope Source
Gain Adjust
Gain Adjust
Side EQ
Side Chain Monitor
+
Envelope Select
Envelope - Control
Compressor
Delay
Delay
Envelope - Control
