782
Step LFO type
Type (Step) [Individual, Common1, Common2]
This controls the LFO source for the steps. It does not affect
the triangle LFO.
Individual: the steps use the Frequency and MIDI/Tempo
Sync parameters, above.
Common 1 or 2: the steps use the frequency or tempo sync
of the selected Common LFO, so that you can synchronize
multiple LFO-based effects together.
Common LFO Phase Offset [degrees] [+/–180]
Sets the phase offset when Type = Common 1 or Common 2.
p.779.
OUTPUT
Wet/Dry [–Wet, –99:1…–1:99,
Dry, 1:99…99:1, Wet]
This sets the balance between the effect and the dry input.
From –Wet to –1:99, the effect sound’s phase will be
reversed.
Source [Off…Tempo]
This selects a modulation source for Wet/Dry.
Amount [+/–100]
This sets the modulation amount for Wet/Dry.

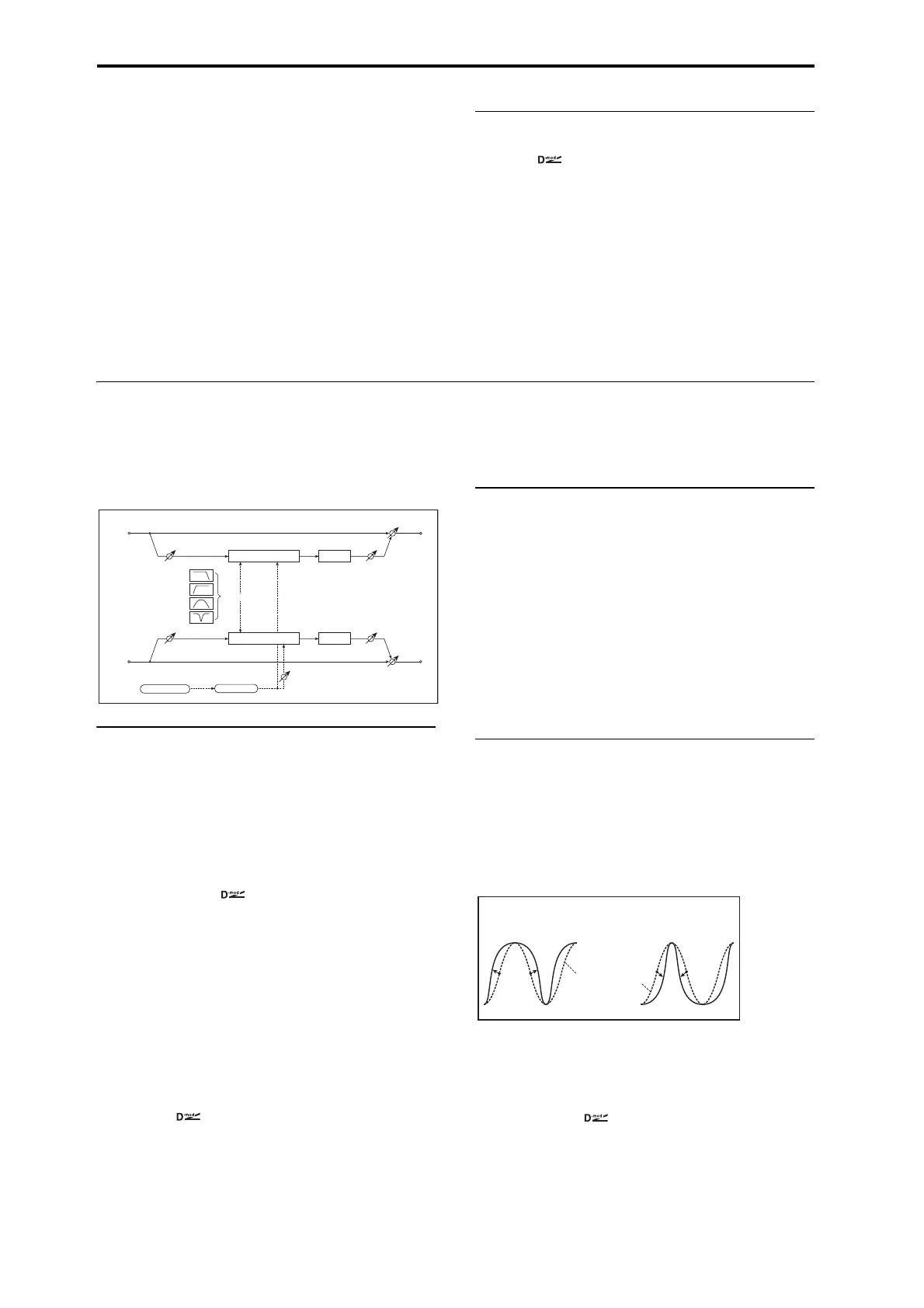

019: Multi Mode Filter
This multi-mode filter includes low pass, high pass, band
pass, and band reject modes. You can modulate the cutoff
frequency and resonance from either an LFO or dynamic
modulation.
MULTIMODE FILTER
Trim [0…100]
Sets the input level.
Type [LPF, HPF, BPF, BRF]
Selects the type of filter. For more information, see “Filter
Type” on page 63.
Cutoff Frequency [0…100]
Sets the cutoff frequency (center frequency).
Source [Off…Tempo]
Selects the modulation source of the cutoff.
Amount [+/–100]
Sets the modulation amount of the cutoff.
Depth [0…100]
Sets the depth to which the LFO will modulate the cutoff
frequency.
Resonance [0…100]
Sets the resonance amount.
Source [Off…Tempo]
Selects the source that will modulate the amount of
resonance.
Amount [+/–100]
Sets the amount by which the resonance will be modulated.
DRIVER
Bypass [Check-box]
Switches distortion on/off within the filter.
Gain [0…100]
Sets the distortion amount.
Low Boost [0…100]
Sets the amount of low-range boost.
Output [0…100]
Sets the output level.
LFO
Waveform [Triangle, Sine]
Selects the LFO Waveform.
Shape [+/–100]
This changes the curvature of the LFO Waveform, which
emphasizes or de-emphasizes the peaks, as shown below.
Phase [degrees] [–180…+180]
Sets the LFO phase difference between the left and right. See
“Phase [degrees]” on page 781.
Frequency [Hz] [0.02…20.00]
This sets the LFO speed, in Hz. It applies only when
MIDI/Tempo Sync, below, is Off.
Source [Off…Tempo]
This selects a modulation source for the Frequency.
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Multimode Filter Driver
Driver
Trim Output
OutputTrim
LFO Phase
LFO: Tri / Sine
LFO Shape
LPF
HPF
BPF
BRF
Filter Type
Multimode Filter
LFO Shape
LFO Shape = 0...+100 LFO Shape = 0...–100
LFO Waveform=Sine
