776

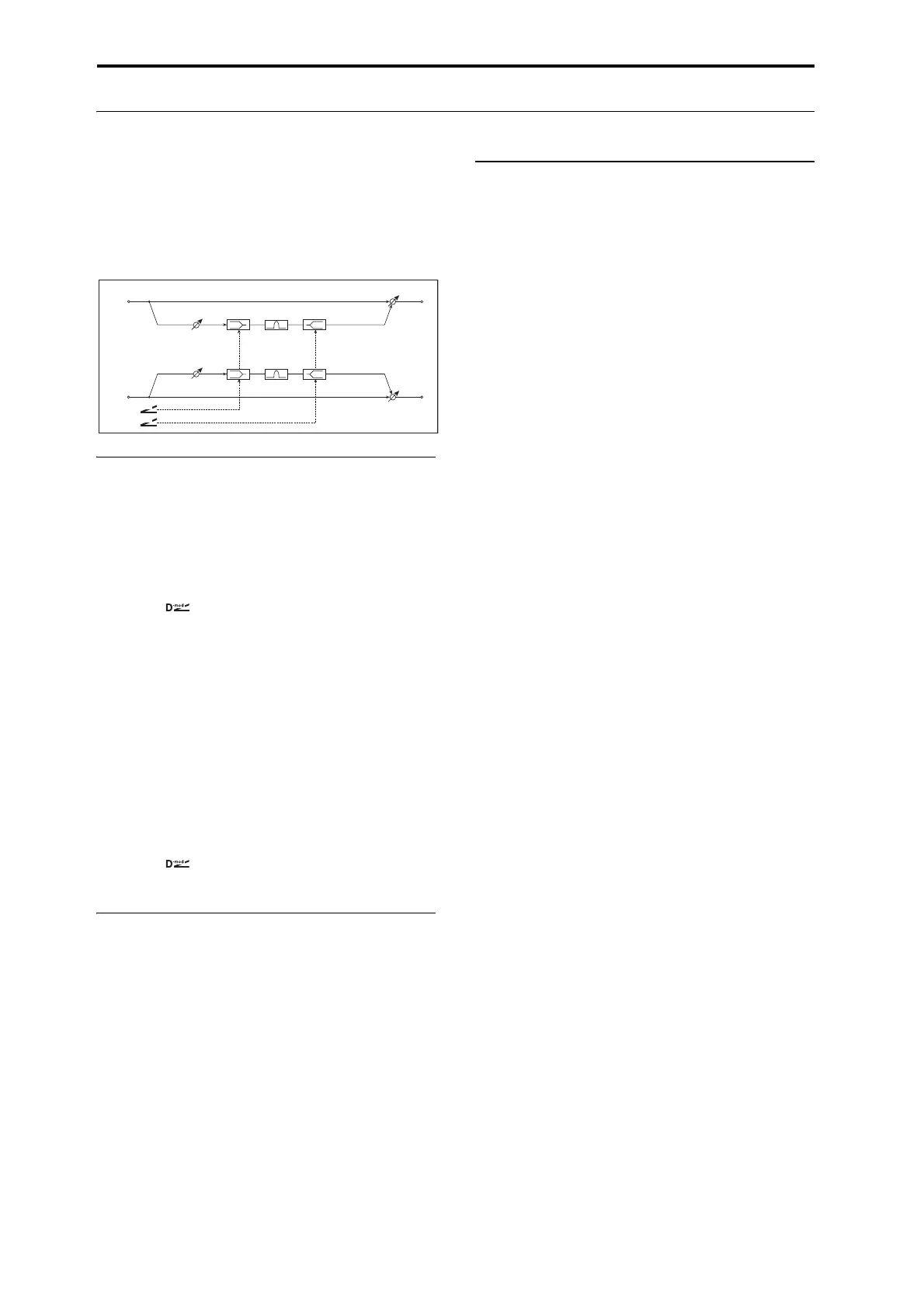

013: Stereo Master 3EQ
This is a stereo three-band equalizer, with sweepable low
and high shelving and a fully parametric mid-band. The low
and high gains can be controlled in real-time. You can use
this as a TFX to make final adjustments to the sound.
For a description of the on-screen EQ graphic, see “011:
Stereo Parametric 4EQ” on page 774.
PARAMETRIC EQ
Trim [0…100]
Sets the input level.
Low Fc [Hz] [0…980]
Sets the cutoff frequency of the Low EQ (shelving type).
Gain [dB] [–18.0…+18.0]
Sets the gain of the Low EQ.
Mid Cutoff [Hz] [100…10.00k]
Sets the cutoff frequency of the Mid EQ (peaking type).
Q [0.5…10.0]
Sets the bandwidth of the Mid EQ
Gain [dB] [–18.0…+18.0]
Sets the gain of the Mid EQ.
High Cutoff [Hz] [500…20.00k]
Sets the cutoff frequency of the High EQ (shelving type).
Gain [dB] [–18.0…+18.0]
Sets the gain of the High EQ.
GAIN MOD
Low Source [Off…Tempo]
Selects the source that will modulate the Low Gain.
Amount [dB] [–36.5…+36.0]
Sets the amount by which the Low Gain will be modulated.
High Source [Off…Tempo]
Selects the source that will modulate the High Gain.
Amount [dB] [–36.5…+36.0]
Sets the amount by which the High Gain will be modulated.
OUTPUT
This is the standard effects output section, with modulatable
control over wet/dry balance. For more information, see
“OUTPUT” on page 762.
D
-mod
D
-mod
Left
Right
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
Low
LEQ
High
HEQ
Trim
Mid
PEQ
Trim
