Dynamics 006: Multiband Limiter
769
Q [0.5…10.0]
Sets the EQ bandwidth for the control signal.
Gain [dB] [–18.0…+18.0]
Sets the EQ gain for the control signal.
LIMITER
Ratio [1.0:1…50.0:1, Inf:1]
Sets the signal compression ratio. For more information, see
“Ratio” on page 763.
Threshold [dB] [–40…0]
Sets the level above which the compressor is applied. For
more information, see “Threshold [dB]” on page 763.
Attack [1…100]
Sets the attack time. For more information, see “Attack
[msec]” on page 764.
Release [1…100]
Sets the release time. For more information, see “Release
[msec]” on page 764.
Gain Adjust [dB] [–Inf, –38…+24]
Sets the output gain. For more information, see “Gain Adjust
[dB]” on page 764.
Source [Off…Tempo]
Selects the modulation source for the output gain.
Amount [–63…+63]
Sets the modulation amount of the output gain.
OUTPUT
This is the standard effects output section, with modulatable
control over wet/dry balance. For more information, see
“OUTPUT” on page 762.
006: Multiband Limiter

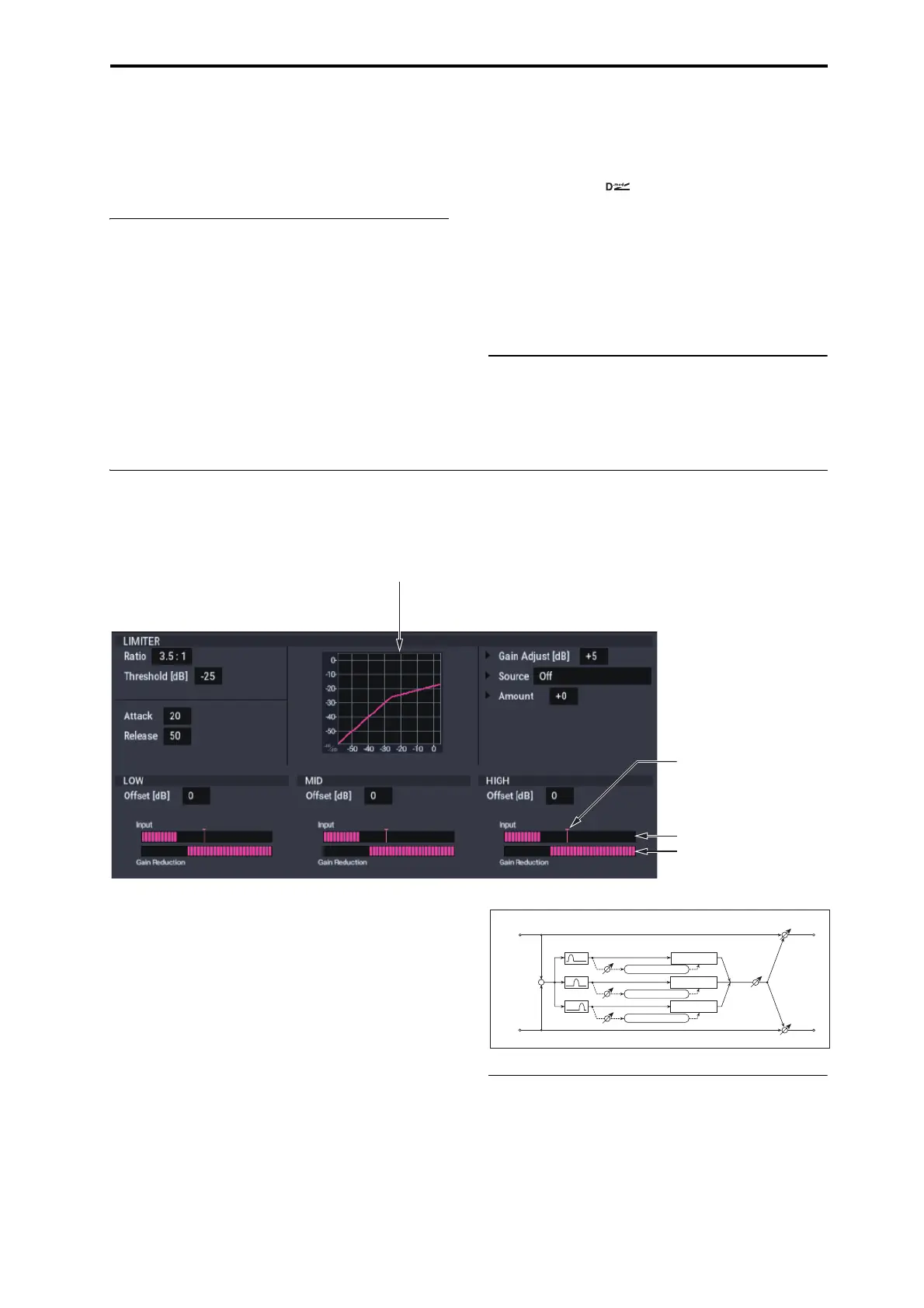

On-screen graphic, 006 Multiband Limiter
This mono effect provides separate limiters for the low, mid,
and high frequencies. You can control the dynamics for each
range to adjust the relative levels of the low, mid, and high
ranges, with very different results from EQ.
Threshold Offsets
The three bands share common settings for ratio, attack and
release times, and output gain adjust. The difference is in the
threshold settings. In addition to the overall Threshold
parameter, each band has a threshold Offset, which makes
the band more or less sensitive to the input signal.
For example, if you do not want to apply limiting to the high
range, reduce the High Offset so that it is lower than the
Threshold. This means that the high range limiter will not
respond, and so the high band will pass through unaffected.
LIMITER
Ratio [1.0:1…50.0:1, Inf:1]
Sets the signal compression ratio. For more information, see
“Ratio” on page 763.
The yellow line shows the output level, relative to the input level.
This will change according to the Ratio and Threshold settings.
The red line shows the Threshold.
The bottom meter shows the
frequency band’s gain reduction, in
real-time.
The top meter shows the frequency
band’s input level, in real-time.
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
Gain Adjust
Mid Oset
Low Oset
High Oset
Envelope - Control
Envelope - Control
Envelope - Control
Low
Mid
High
Band-Pass Filters
+
Limiter
Limiter
Limiter
